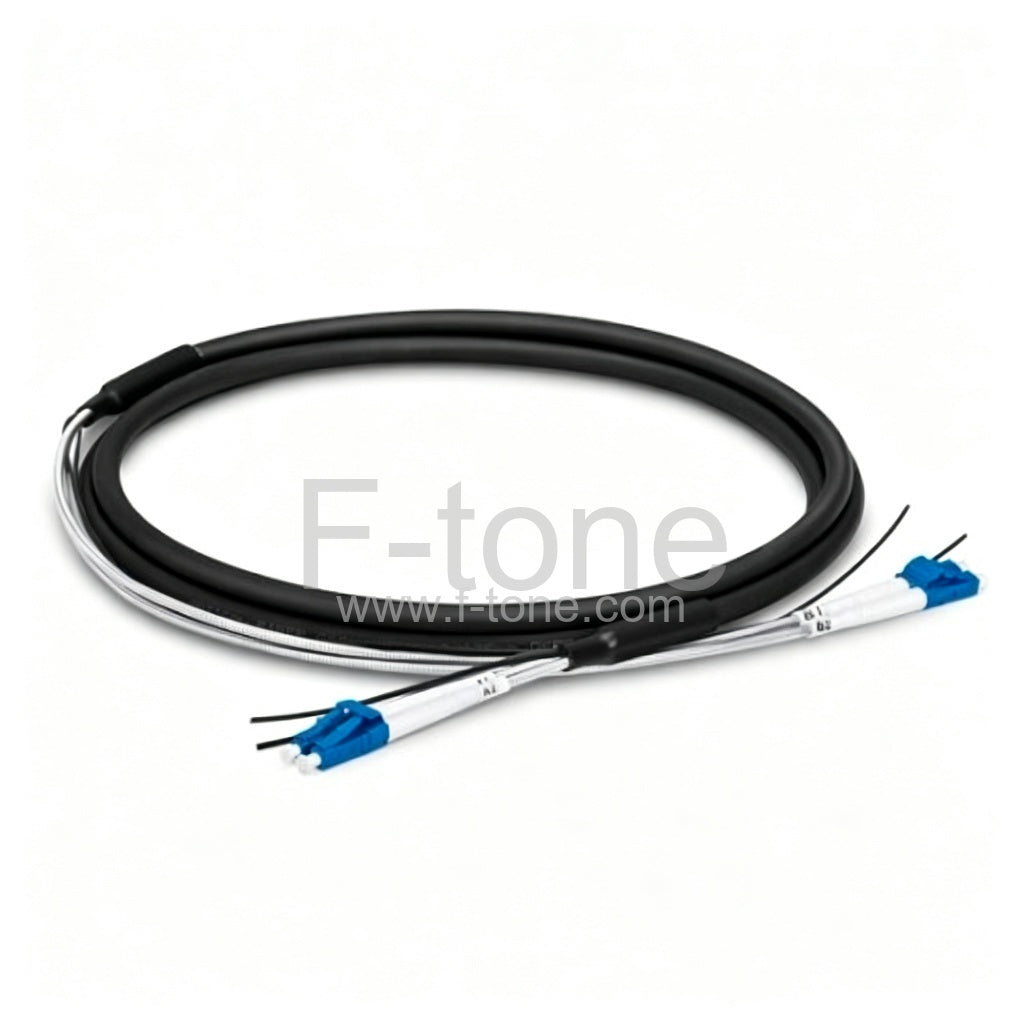

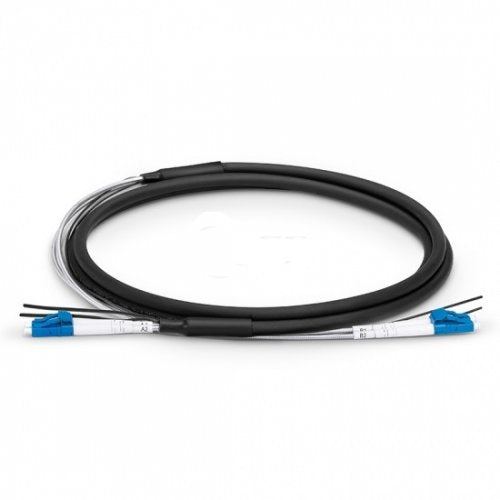

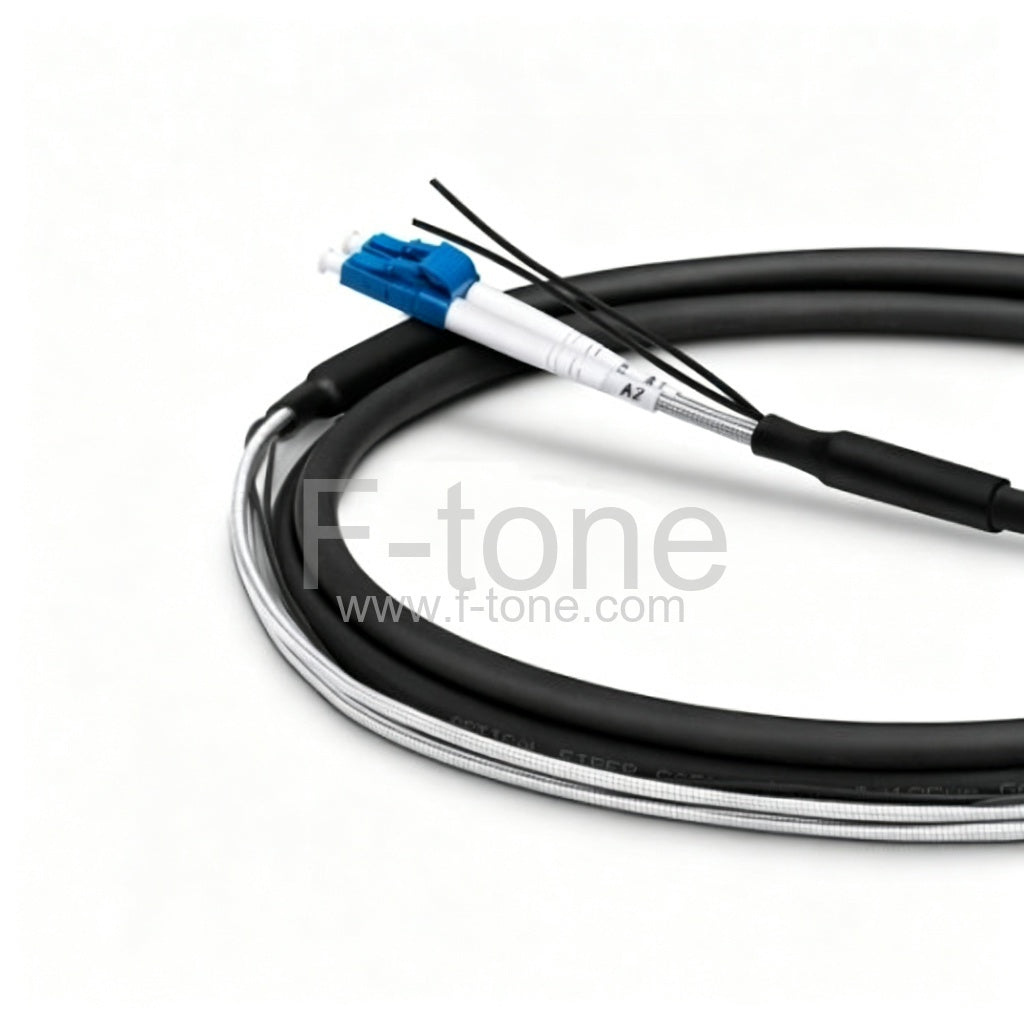

MDC to LC Fiber Jumper Cable 2 Fibers Duplex OS2 SingleMode LSZH

MDC to LC Fiber Jumper Cable 2 Fibers Duplex OS2 SingleMode LSZH

Afficher tous les détails

Part Number: HD-SM-MDC-LC-DX-FM

MDC to LC OS2 SingleMode Fiber Jumper Cable 2 Fibers Duplex LSZH

The cable is equipped with the MDC connector, a Very Small Form Factor (VSFF) duplex optical connector using proven 1.25mm LC ferrules, designed to terminate on 2.0mm micro cable. Individual connector access in the most extremely dense connector environments is easily accomplished using the revolutionary DirectConec™ push-pull boot technology. Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools. The MDC cable was designed for breakout application in QSFP-DD, SFP-DD, and OSFP optical transceivers, as well as to challenge the "status quo" for patch panel density.

Features

● Uniboot Allows One Cable to Carry Two Fibers to Reduce Cable Congestion in High Density Patch Fields

● G.657.A1 & 10mm Min. Bend Radius

● 3x Fiber Cabling Density over Duplex LC, Providing 432 Fibers within 1 RU

● DirectConec™ Push-pull Boot for Effortless Connector Insertion and Extraction

● Simple Polarity Reversal with No Exposed Fibers

● Telcordia GR-326 and TIA-568 compliant

3x Higher Cabling Density Than MPO

MDC cables facilitate breakout applications in QSFP-DD, SFP-DD, and OSFP optical transceivers, offering improved patch panel density.

For 4x200G, 4x100G, and 2x50G breakout applications in QSFP-DD, OSFP, and SFP-DD transceivers.

Three-port MDC adapters enable three times the fiber density by fitting directly into standard duplex LC adapter panel openings.

Specifications

Connector A US Conec MDC UPC Uniboot Connector B LC UPC Uniboot
Insertion Loss ≤0.3dB Return Loss ≥50dB
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Attenuation at 1310nm ≤0.4dB/km Attenuation at 1550nm ≤0.3dB/km
Fiber Grade G.657.A1 Cable Jacket Riser (OFNR)/LSZH
Fiber Count Duplex Cable Outside Diameter (OD) 2.0mm
Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Tensile Strength (Long/Short Term) 33/100N Polarity A (Tx) to B (Rx)
Operating Temperature -10 to 70°C (14 to 158℉) Storage Temperature -20 to 70℃ (-4 to 158℉)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
