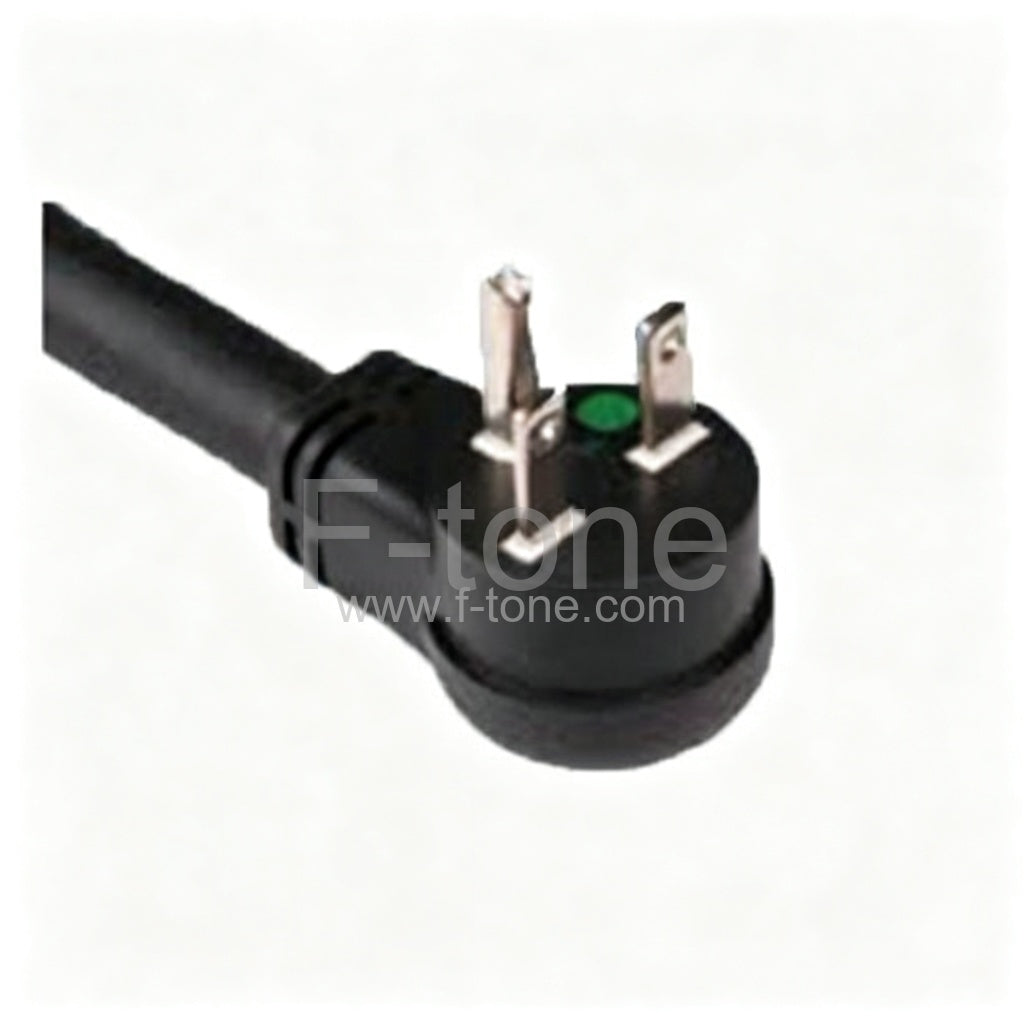

Hospital Grade NEMA 6-15 (Male) to IEC60320 C13 (Female) 14/3 AWG 250V/15A SJT Angled Power Cord

Part Number: HG-N6-15-C13-14/3-125V/15A-SJT-A

Hospital Grade NEMA 6-15 (Male) to IEC60320 C13 (Female) 14/3 AWG 250V/15A SJT Angled Power Cord

Power cord is the ideal solution for powering a network device or connecting to a PDU and Computer in a data rack or network wiring closet. Angled Medical Device power cord NEMA 6-15 (Male) to IEC60320 C13 (Female) with SJT jacket, and this cable is able to support 250 volt connections and features 14/3 AWG conductor construction which adhere to North American Color Code (NACC). A third contact design for a connection to earth is intended to protect against insulation failure of the connected device. The fully molded design provides for maximum durability and long life.

Safety Three-Prong Device

A note on insulation color-coding:Insulating plastic is color-coded to identify live/hot, neutral and ground wires but these codes vary around the world. Live/hot wires may be brown, red, black, blue or grey. Neutral wire may be blue, black or white. Since the same color may be used for live/hot or neutral in different parts of the world, it is essential to determine the color code in your region.

Safety three-wire system:The three-wire system replaced the older two-wire system, which lacks an earth/ground wire. Under ordinary circumstances, insulation on the live/hot and neutral wires prevents the case from being directly in the circuit, so that the earth/ground wire may seem like double protection. an earth/ground connection is a low-resistance path directly to the earth. The two earth/ground connections on the neutral wire force it to be at zero volts relative to the earth, The neutral wire is the return path for the current to follow to complete the circuit. Furthermore, the two earth/ground connections supply an alternative path through the earth, a good conductor, to complete the circuit. The live or hot wire(hereafter referred to as "live/hot") supplies voltage and current to operate the appliance and the standard three-prong plug can only be inserted in one way, to assure proper function of the three-wire system.

Features of F-tone Power Cords

Select the Best Option for Your Application

There is a wide range of motor controls available that meet one of the two dominant standards: National Electrical Manufacturers’ Association (NEMA) ICS 2 and International Electrotechnical Commission (IEC) 60320. NEMA and IEC starters are both rated for 1 million electrical operations, and the UL testing is identical for each. When selecting components, many designers stop at the two main differences between NEMA and IEC, size and cost. So how should we make a choice?

Particularly when operating parameters are less well known, it may be cheaper to just use NEMA and forego the precise design required for IEC. The table lists the leading factors favoring IEC and NEMA. For most situations either IEC or NEMA may be employed, but IEC devices require more forethought and planning. If done correctly, IEC controls can pay big dividends and offer a competitive advantage.

Applications of IEC60 320 & NEMA Power Cords

IEC60 320 & NEMA Power Cords are widely used in many fields, such as commercial appliances, some home appliances, data centers, power distribution devices, and professional food equipment, to name a few. They are also used in indoor equipment fields.

Specification

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
