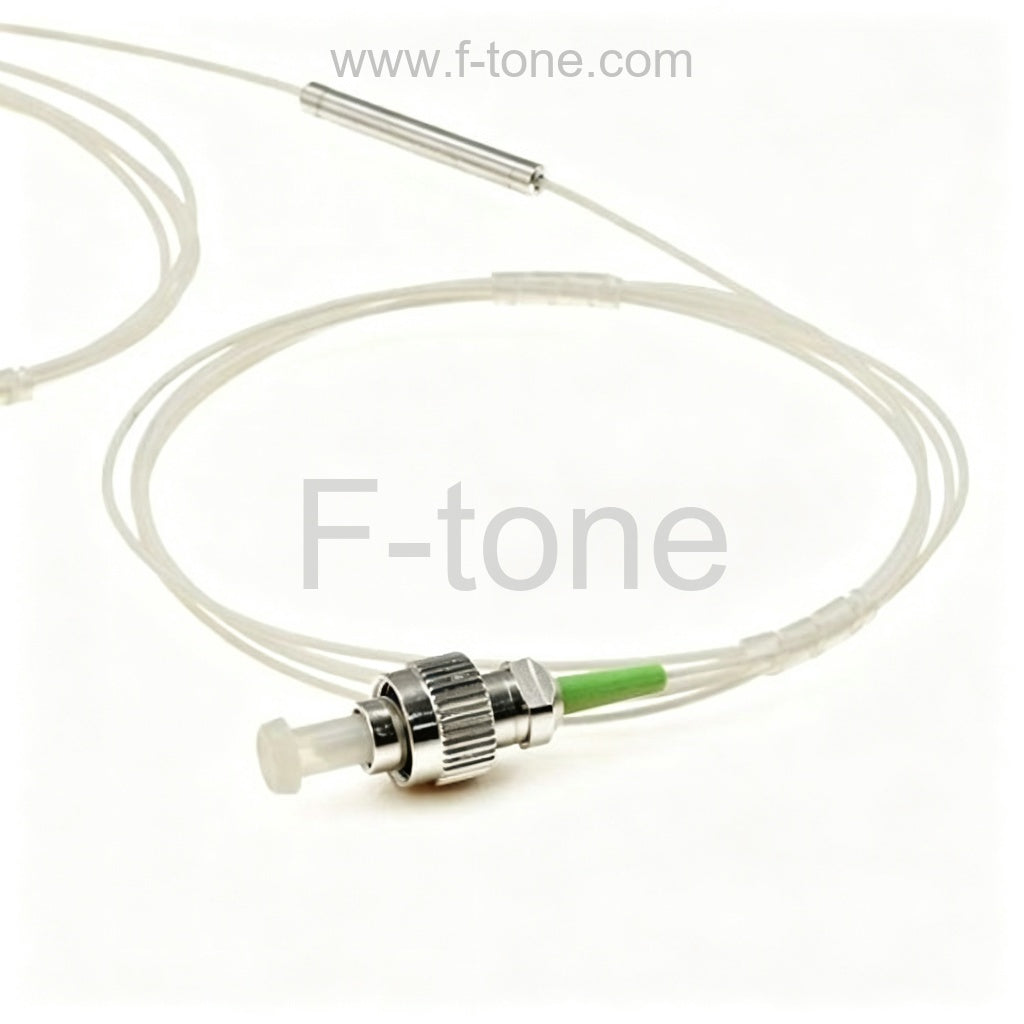

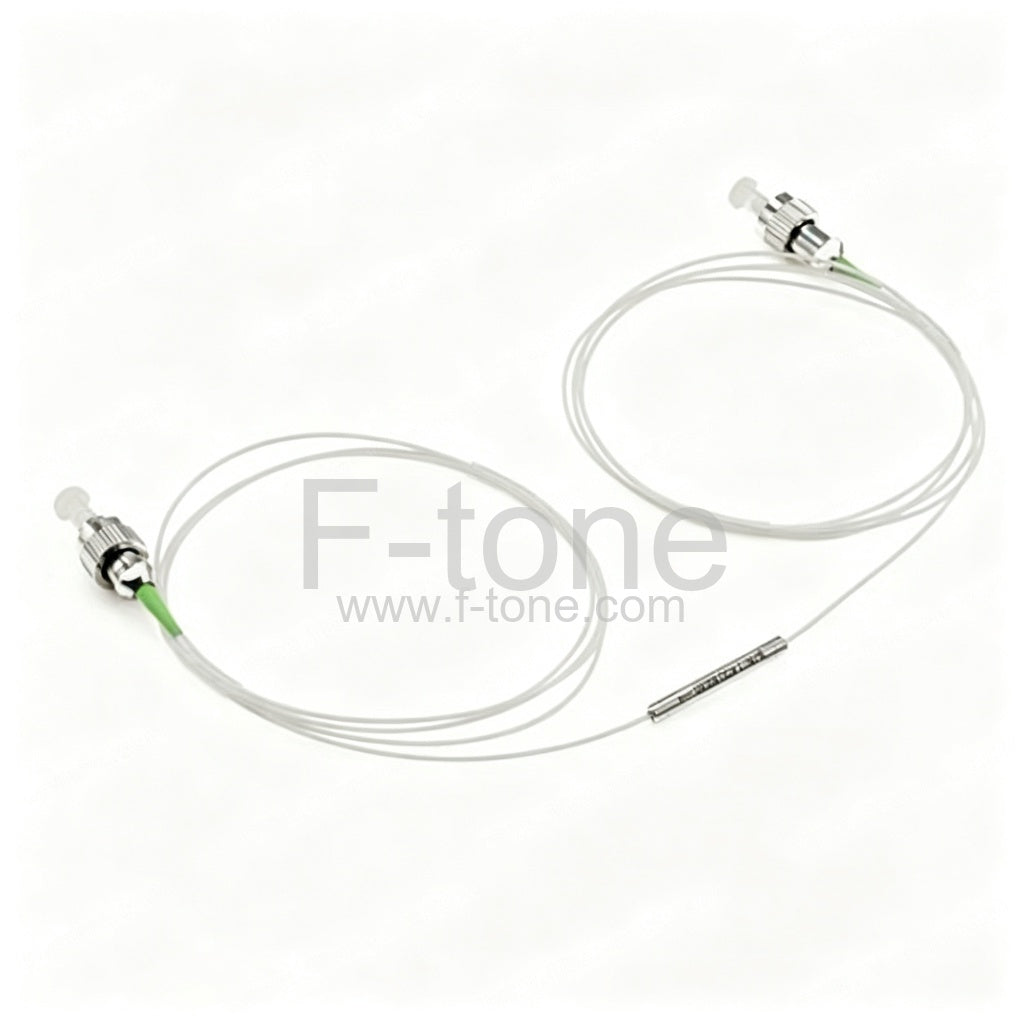

FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator

FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator

Afficher tous les détails

Part Number: HPPMIS-FCA-13-S-1

Polarization Maintaining Isolator Single Grade 1M FC/APC 1310nm 900um

The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1480/1550nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.

Characteristics

  • Low insertion loss
  • Low Extinction Ratio & High Isolation
  • High stability and reliability

Applications

  • EDFA
  • Fiber sensor
  • Fiber Optical Instrument

Specifications

Type Single Grade Dual Grade
Parameter
Type P P
Parameter
Operating Wavelength (nm) 1310,1480, 1550
Bandwidth (nm) ±20
Peak isolation (dB) 42 58
Isolation (at 23℃) (dB) ≥28 ≥48
Typ. Insertion Loss (at 23℃) 0.4 0.5
Insertion Loss (at-5 ~ +70 ℃) ≤0.55 ≤0.65
Extinction
Ratio (dB)		 Type B ≥20 ≥20
(Both of axis working)
Extinction
Ratio (dB)		 Type F ≥22 ≥22
(Fast axis blocked)
Return loss (Input/Output) (dB) ≥55
Power handling (mW) ≤300
Fiber Type Panda Fiber
Operating temperature (℃) -5~+70
Storage temperature (℃) -40 ~ +80
Dimensions (mm) φ5.5×L35
Above specifications are for devices without the connectors.
For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
The PM fiber and the connector key are aligned to the slow axis

Dimension


Order Information

PMIS Wavelength Type Grade Axis
Alignment		 Pigtail Type Fiber
Type		 Length Connector
PMIS 1310
1480
1550		 S= Single stage
D = Dual Stage		 P F=Fast Axis blocked
B=Both of axis working
S=Slow axis working		 250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube		 5=Panda fiber 0.8=0.8
1= 1m
XX=Other		 NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
