Juniper Networks QDD-4X100G-FR Compatible 400GBASE-XDR4 QSFP-DD 8 x 50G PAM4 1310nm 2km MPO-12/APC SMF Transceiver Module

Juniper Networks QDD-4X100G-FR Compatible 400GBASE-XDR4 QSFP-DD 8 x 50G PAM4 1310nm 2km MPO-12/APC SMF Transceiver Module

Afficher tous les détails

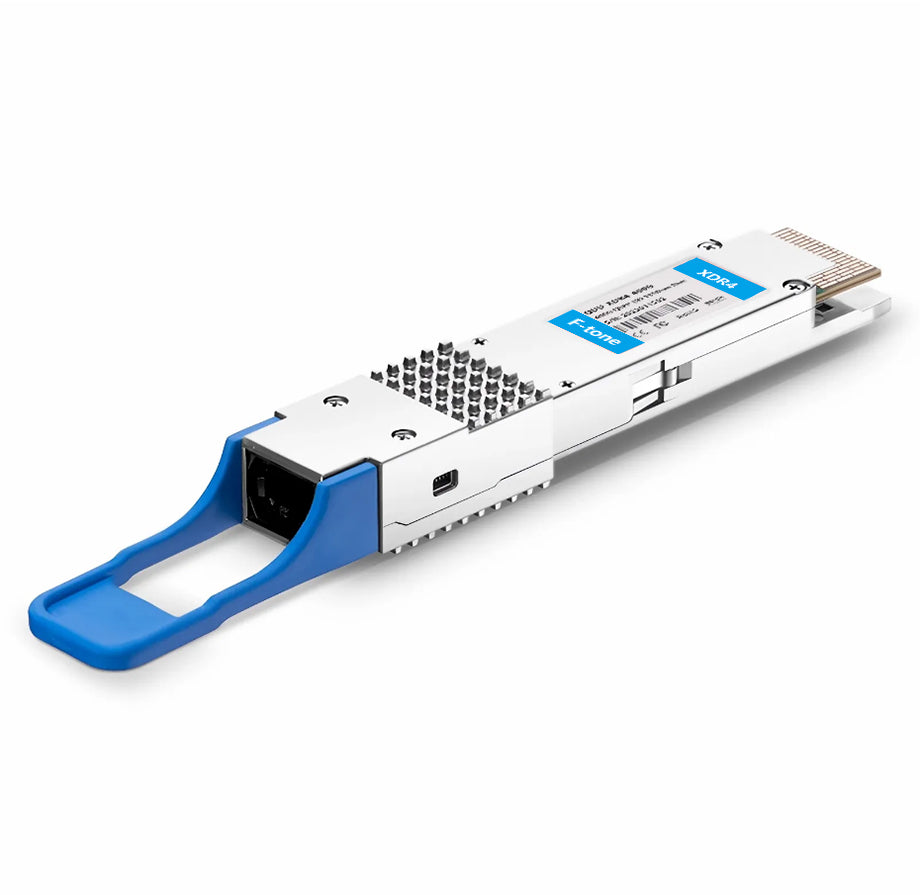

Juniper Networks QDD-4X100G-FR Compatible 400GBASE-XDR4 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)

The 400GBASE-XDR4 Module supports link lengths of up to 2km parallel SMF with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-FR-100G.

Specifications

Juniper Compatible QDD-4X100G-FR Vendor Name F-tone
Form Factor QSFP-DD Max. Data Rate 400Gbps
Wavelength 1310nm Max. Cable Distance 2km
Connector MPO-12/APC Media SMF
Transmitter Type 1310nm EML Receiver Type PIN
TX Power -3.1~4dBm Minimum Receiver Power -7.1dBm
Power Budget 4dB Receiver Overload 4dBm
Max. Power Consumption 9W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 8×50G-PAM4 Modulation (Optical) 4×100G-PAM4
DSP TX and RX Inbuilt FEC No
Core Size G.652/9um Packaging Technology COB
Protocols QSFP-DD MSA, CMIS.5.0, IEEE 802.3bs Warranty 5 Years




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
