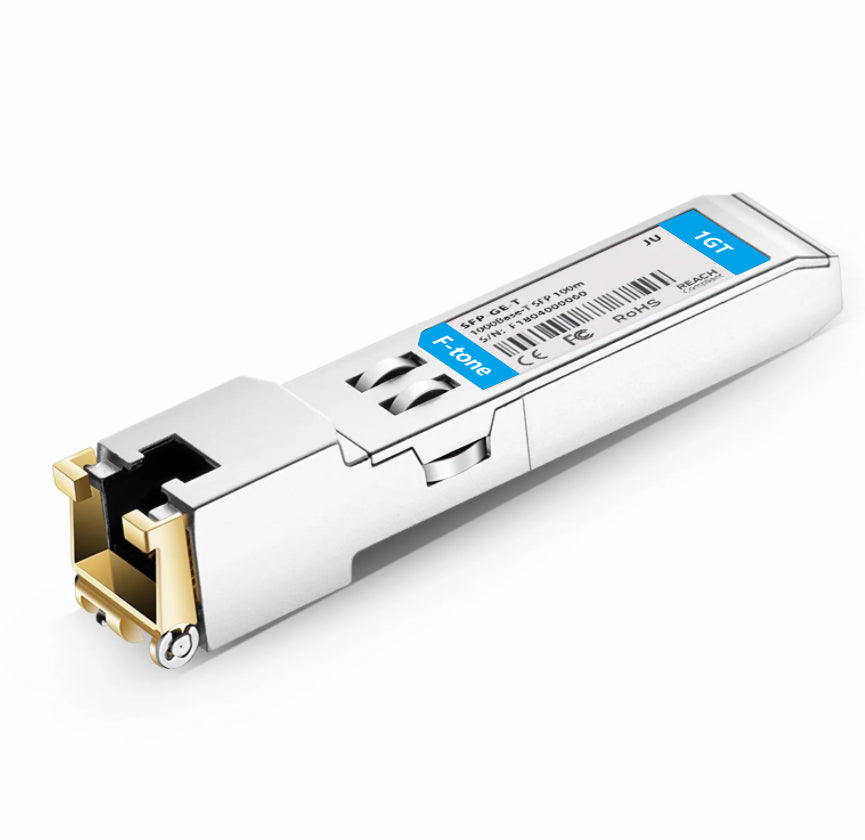

Juniper Networks QFX-SFP-1GE-T Compatible 1000BASE-T SFP Copper 100m RJ-45 Transceiver Module

Juniper Networks QFX-SFP-1GE-T Compatible 1000BASE-T SFP Copper 100m RJ-45 Transceiver Module

Afficher tous les détails

Juniper Networks QFX-SFP-1GE-T Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ-45)

Juniper Networks QFX-SFP-1GE-T compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Juniper switches, routers, servers, network interface card (NICs) etc.This transceiver is compliant with IEEE STD 802.3, 802.3ab, and SFP MSA. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

Specifications

Parameter Value Parameter Value
Juniper Networks Compatible QFX-SFP-1GE-T Vendor Name F-tone Networks
Form Factor SFP Max. Data Rate 1000Mbps
Max. Cable Distance 100m Media Cat 5e/6/6a (UTP)
Connector RJ-45 RX_LOS NO
Power Consumption ≤1.2W DDM/DOM Not Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F) Bit Error Ratio (BER) 1E-12
EMC (Electro Magnetic Compatibility) Supported MTBF 217,330 Hours
Protocols IEEE Std 802.3 and 802.3ab, SFP MSA Compliant Warranty 5 Years


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
