12 Fibers LC to LC 9/125 Single Mode MultiFiber PreTerminated Breakout Trunk Cable

12 Fibers LC to LC 9/125 Single Mode MultiFiber PreTerminated Breakout Trunk Cable

Afficher tous les détails

Part Number: LC-LC-12F-SMF-BO-XX

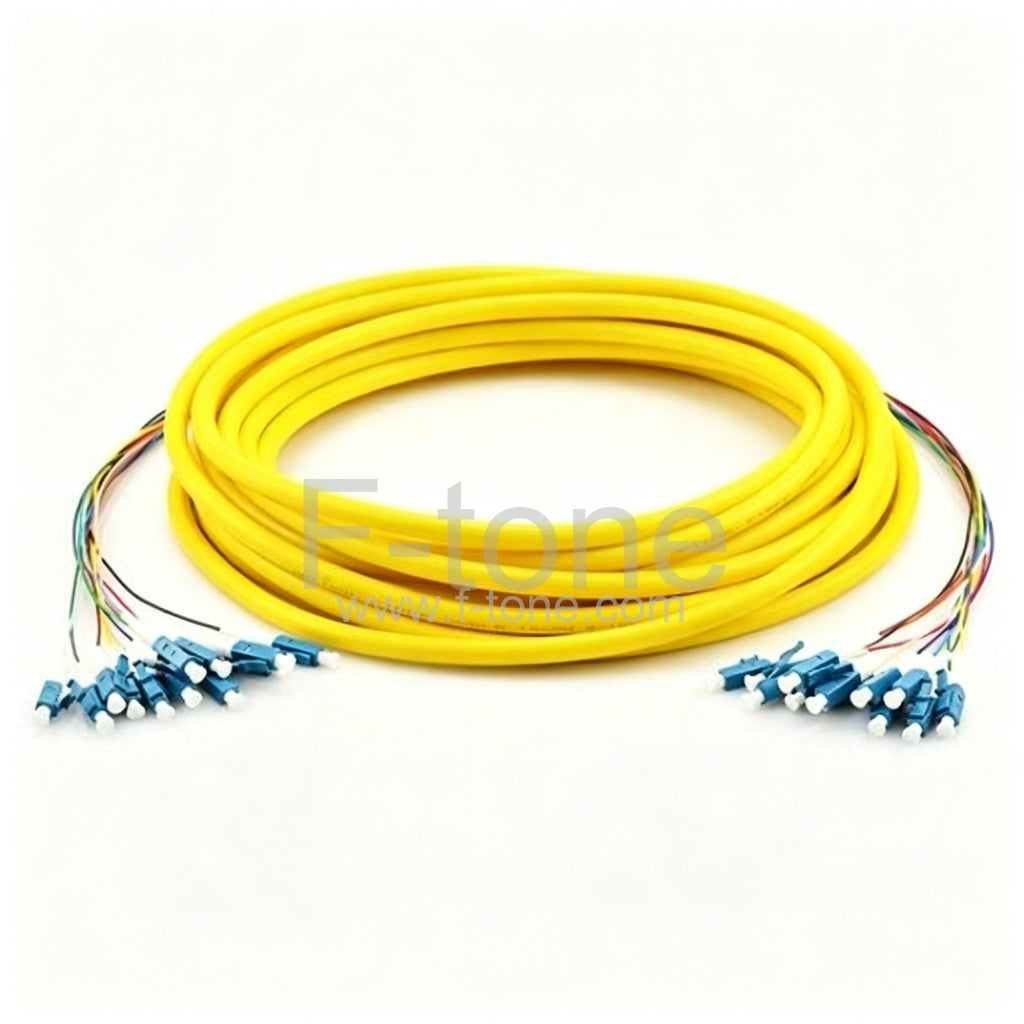

12 Fibers LC to LC 9/125um SMF Single-Mode Pre-terminated Fiber Patch Cable - 12 Fibers Fiber Trunk Cable

This cable meets RoHS compliant, and 100% optically tested for insertion loss before shipment, this is very cost-effective for your network cabling, and can be used for longer runs than multimode because they have more resistance to attenuation.

The multifiber cables, provided by F-tone, refer to the 4, 6, 8, 12, 24 and 48 cores. We also provide a full set of OEM service, such as fiber, connector, length, color, fiber grade, specification, material, package etc.

Item Details

Fiber Counts: 12 Fiber Mode: 9/125um SM Breakout O.D: 0.9mm Insertion Loss: <0.3dBReturn Loss: >50dB Cable Jacket/Color: PVC/Yellow
Key Features

Good exchangeability Low insertion loss and back reflectionEasy to use, easy to install and maintainSupport 10 gigabit data transmitting rates100% optically tested to ensure high performanceStandard or custom configuration

Details Drawing
Note: The default fiber diameter for breakout leg cable is 0.9mm, and the breakout leg can be fixed by Heat Shrink Tube. Custom and OEM

OEM Label, Printing and Boot Color

NOTE: Cable length: Any length can be customized as you required. Cable jacket: The default jacket is PVC. LSZH, OFNP, OFNR can be customized. Cable connector: SMA905, VF45, MU and D4 are available.Cable color: Red, Purple, White, Black, Orange and Pink can be customized. As to customized colors, our MOQ is 1000 meters.
If you need customize others, welcome to contact [email protected].


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
