6-pack SC Leviton LightSpace Compatible (LGX footprint) Fiber Adapter Panels (FAPs)

6-pack SC Leviton LightSpace Compatible (LGX footprint) Fiber Adapter Panels (FAPs)

Afficher tous les détails

Part Number: LSFAP-SMM-6SCSDX

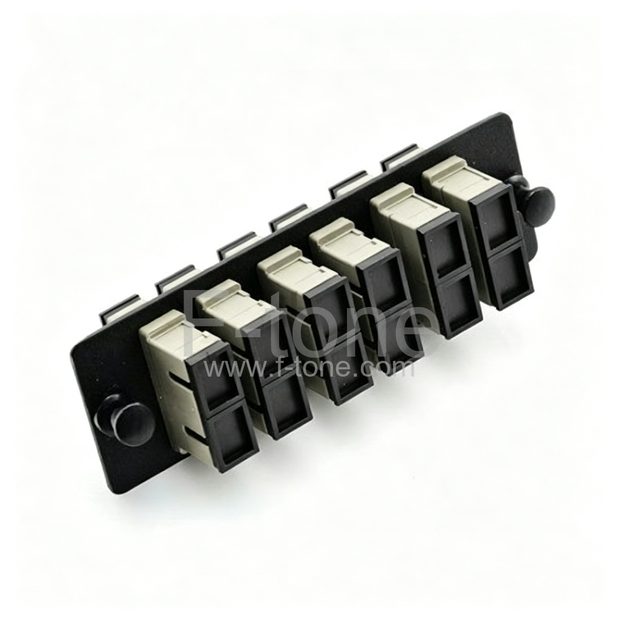

6-pack SC Leviton LightSpace Compatible (LGX footprint) Fiber Adapter Panels (FAPs)

Six SC/UPC simplex Multimode Leviton LightSpace Compatible FAP Fiber Adapter Panels compatible with:

  • DP Series Optical Distribution Enclosures
  • DPC Series Optical Distribution & Splice Enclosures
  • RDP Series Rack-Mount Distribution Enclosure
  • CPC Series Customer Premise Enclosure
  • NIDs (502H & 3500)

key Features and Benefits

  • LGX Compatible
  • Adapter plates feature multiple style adapters
  • Captive push/pull fasteners allow for quick tool-less installation
  • 6-, 8-, and 12-pack plates available
  • Blank plates available

F-tone.Com SC Leviton LightSpace Compatible Fiber Adapter Panels (FAPs)

6 Pack SC Leviton LightSpace Compatible Fiber Adapter Panels (FAPs)
F-tone FAPS# FIBER TYPE PORT TYPE POLISH SPLIT SLEEVERS MFG PART#
LSFAP-SMM-6SCSDX OS2 Simplex UPC Zirconia Ceramic APLW6-SCS
Simplex APC Zirconia Ceramic APLW6-SCA
Duplex UPC Zirconia Ceramic APLW6-SDS
Duplex APC Zirconia Ceramic APLW6-SDA
OM1/OM2 Simplex UPC Phosphor Bronze APLW6-SCM
Duplex UPC Phosphor Bronze APLW6-SDM
OM3/OM4 Duplex UPC Zirconia Ceramic APLW6-SDL
8 Pack SC Leviton LightSpace Compatible Fiber Adapter Panels (FAPs)
F-tone FAPS# FIBER TYPE PORT TYPE POLISH SPLIT SLEEVERS MFG PART#
LSFAP-SMM-8SCSDX OS2 Simplex UPC Zirconia Ceramic APLW8-SCS
APC Zirconia Ceramic APLW8-SCA
OM1/OM2 Simplex UPC Phosphor Bronze APLW8-SCM
12 Pack SC Leviton LightSpace Compatible Fiber Adapter Panels (FAPs)
F-tone FAPS# FIBER TYPE PORT TYPE POLISH SPLIT SLEEVERS MFG PART#
LSFAP-SMM-12LCSDX OS2 Simplex UPC Zirconia Ceramic APL12-SCS
APC Zirconia Ceramic APL12-SCA
OM1/OM2 Simplex UPC Phosphor Bronze APL12-SCM

Any Type Any Size All at F-tone.Com

Materials:

  • 6-packs - 16 gauge steel
  • 8-packs - 16 gauge steel
  • 12-packs - .062" aluminum


    • F-tone offers Leviton LightSpace compatible adapter plates for use in many of our inside and outside plant enclosures. The standard plates come in 6-, 8- and 12-pack styles for LC, SC, ST connectors and are constructed with a durable powder coated finish, and it is compliant with TIA-EIA-568-C.3. Adapter plates shall come in QuickPort, simplex, duplex, or quad style depending on connector selection. The adapter plates are compatible with Leviton Lightspace molded fiber adapter panels.These plates offer users the ability to add terminations incrementally. Simple captive push/pull fasteners make these plates easy to install and remove for service.

    MAKE TO ORDER (Options)
TYPE CONNECTOR FIBER TYPE PACK POLISH MODULE FIBERS
· Rack-mount
· Wall-mount		 · LC
· SC
· ST
· MTP		 · Simplex
· Duplex
· Quad
· QuickPort		 · 6 pack
· 8 pack
· 6 pack Duplex
· 6 pack Quad		 · UPC
· APC		 · OS1&2-9 µm
· OM1-62.5 µm
· OM2-50 µm
· 100 G OM3-50 µm		 · 6 fibers-288 fibers

Packaging of Fiber Adapter Panels


F-tone provide exquisite appearance, high quality packaging for fiber adapter panels at different sizes, this packaging can protect your product from getting damaged largely. What’s more,the logo on the packaging can be customized as requirement.




Application Multimode
Connector SC Simplex
No. of Port 6 Ports
No. of Fiber 6 Fibers
Color Beige
Material of plates 16 Gauge Steel
Material of sleeves Zirconia Ceramic
Finish Powder Coated in Central Office(White)
Dimensions(inch) 5.11*1.12*0.275(L * W * HD)
package Carton

Notes:

  • If customized, please contact at [email protected]


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
