0-40dB Single-Channel Standard MEMS Variable Optical Attenuator

0-40dB Single-Channel Standard MEMS Variable Optical Attenuator

Afficher tous les détails

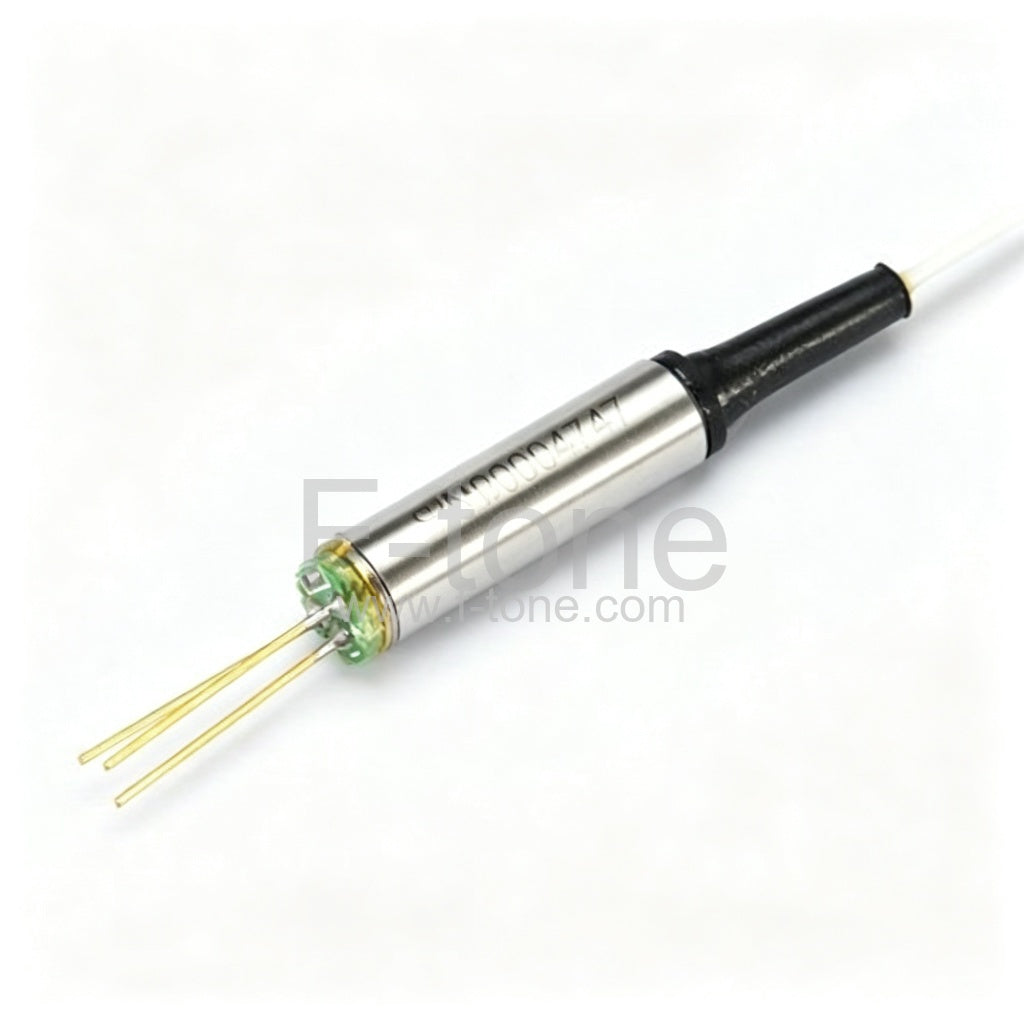

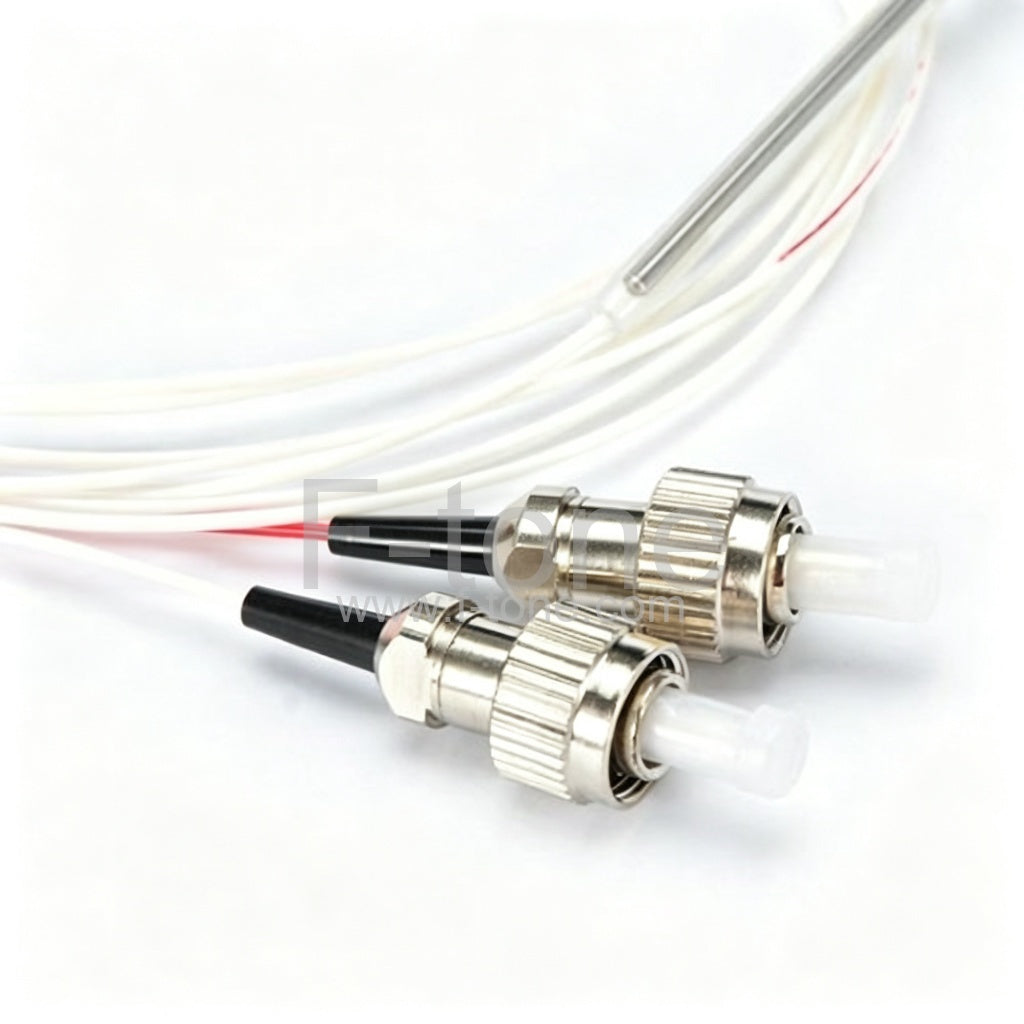

Part Number: MEMS-VOA-S-Sta-5.5

0-40dB Single-Channel Standard MEMS Variable Optical Attenuator

Features

  • Broad band;
  • High reliability;
  • Low insertion loss;
  • Low Power Consumption;
  • High Input Power.

Applications

  • Optical power control, equalization and regulate;
  • Receiver protection;
  • Instrumentation;
  • Channel on/off switching.

Dimensions Diagram


Ordering Information

FM VOA Port Operating
Wavelength		 Grade Fiber Type Fiber
Length		 In/Out
Connector
0101=1X1
0202=2X2		 13=1310nm
15=1550nm
16=1625nm
X=other		 P 1=Bare
Fiber		 1=1Meter 0=None
1=FC/APC
2= FC/PC
3=SC/APC
A 2=900um
Jacket		 1=2 Meter 4=SC/PC
5=ST
6=LC
XX=other XX=other XX=other

Parameter Unit Specification Note
WavelengthRange nm 1530-1610 C+Lband
532-1650 other
AttenuationType BrightorDark
AttenuationRange dB ≥15
BlockingState dB 20 Darktype
Attenuation
InsertionLoss dB ≤0.7(0.5Typical) ExcludingConnectors
AttenuationResolution Continuous
WavelengthDependent dB ≤0.3 @<0dBAtt.
Loss ≤1.5 @<20dBAtt.
Ripple dB ≤0.05 Within0.4nmwindow
@20dB
PolarizationDependent dB ≤0.1 @<0dBAtt.
Loss ≤0.3 @<20dBAtt.
TemperatureDependentLoss dB ≤0.2 @<0dBAtt.comparewith
RT
≤1.0 @<20dBAtt.comparewithRT
ReturnLoss dB ≥55
PMD ps ≤0.1
ResponseTime ms ≤2(1Typical) 10-90%OpticalPower
OpticalPowerHandling mW 300
DrivingVoltage VDC 5．2Vor15V @5.2Att，20dB
PowerConsumption mW ≤2
Fibertype - MM50/125,62.5/125or105/125
OperatingTemperature ºC 0to70
Storage Temperature Range ºC -40to85



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
