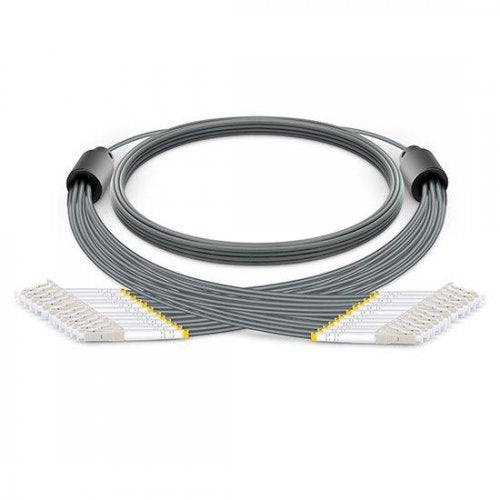

Custom LC to LC 8 Fibers OM3 Multimode Armored Breakout Cable 3.0mm Legs

Custom LC to LC 8 Fibers OM3 Multimode Armored Breakout Cable 3.0mm Legs

Afficher tous les détails

Part Number: MM-LCU-LCU-8F-AC-XX-PVC

Custom LC UPC to LC UPC 8 Fibers Multimode Armored Breakout Cable 3.0mm Legs

Armored fiber optic patch cable has an helical stainless steel tape over a buffered fibre surrounded by a layer of aramid and stainless steel mesh with an outer jacket. Its rugged shell with steel and kevlar is stronger than common fiber optic cable and has a higher rated range of operating temperature. Although this cable contains metal, it is still light weight and flexible with about an 8 inch bend radius. Armored fiber optic patch cable is specifically designed for customer premises, central offices and indoor harsh environments or heavy traffic areas which require extra protection.
The multi fiber armored cables provide both durability and flexibility into a unique networking solution with 4 to 12 individual fiber strands. Each fiber with its own armor which makes the cable more reliable and rugged for critical applications.

Connector LC/LC Fiber Polish UPC/UPC
Fiber Mode Multimode Fiber Counts 8 Fibers
Breakout OD 3.0mm Cable Jacket Single Armored
Cable Color Aqua Cable Material Stainless steel tube, PVC
Bend Radius 12.7~17.7cm Tensile Loads 100~132 lbs
Insertion Loss 0.3dB Return Loss 50dB
Operating Temperature -40~75C Storage Temperature -45~85C


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
