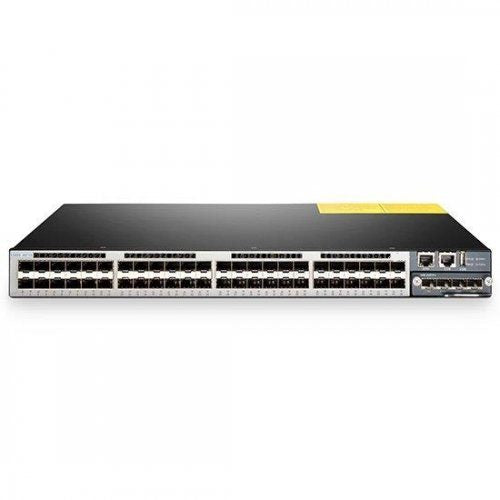

N8500-48B6C (48*25Gb+6*100Gb) 25Gb L2/L3 Trident 3 SDN Switch, Bare-Metal Hardware

Part Number: N8500-48B6C-FM

N8500-48B6C(48*25GbE+6*100GbE) 25GbE Trident 3 Open Networking Switch

N8500-48B6C is a Top-of-Rack (TOR) or Leaf switch in a compact 1U form factor, ideally suited for high performance and programmable data center environments. The N8500-48B6C provides 48-port 25GbE SFP28 and 6-port 100GbE QSFP28. It comes with a high-performance programmable switch chip Trident 3 for data center, enterprise, and service provider networks transitioning to high density 10/25/100G Ethernet. N8500-48B6C delivers excellent low latency and power efficiency in a PHYless design, while offering high reliability features such as redundant and hot swappable power supplies and fans in forward and reverse airflow configurations. With support for advanced features, including MLAG, VxLAN, SFLOW, SNMP, MPLS etc, this layer 3 switch is ideal for traditional or fully virtualized data center.

The N8500-48B6C supports current and future data center requirements, including a x86-based control plane for easier integration of automation tools, an ONIE installer for 3rd party network operating systems and compatibility with Software Defined Networks via OpenFlow 1.3.11.

Quality Certification

Quality and standards are the foundation of F-tone.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.F-tone.COM has passed many quality system verification, like ISO9001, CE, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

• This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
• This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
• This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.

Spine-Leaf Network Architecture

Key Features

Layer 2 Hardware Supported

802.3ad LACP 802.1D STP, 802.1w RSTP, 802.1s MSTP, TRILL 802.1Q VLAN 4096, SVLAN, PVLAN 802.1 Q-in-G double-tagged VLAN 802.1P L2 Prioritization 802.1AB LLDP 802.1x Network Access Control IGMP/MLD Snooping PBB/PBB-TE VM Switching/VEPA/VN-Tag/802.1Qbh Mirroring Storm Control

Layer 3 Hardware Supported

Hardware-based IP Forward IPv4/v6 Routing Protocols: OSFP, RIP, IS-IS, BGP VRF, ECMP/WCMP, VRRP VPWS, VPLS, L3 VPN Hardware Based Tunneling: IPv4/v6, GRE, MiM IGMPvi/v2/v3 IP Multicast: PIM-SM, PIM-DM, PIM-SSM Hierarchical ECMP Enhanced IPF width and keys for SDN

Traffic Management Hardware Supported

Separate QoS Queues for UC and MC Packets (10 each/port) 2-Rate, 3-Color Policing SP, WRR, WDRR Queuing DCBX (ETS, PFC, CN/QCN) Per-Port DSCP Per-Port Oversubscription

Supported Optical Transceivers and Cables

25G SFP28 slot: 25GBASE-SR 25GBASE-LR 25GBASE AOC/ DAC QSFP28 slot: 100GBASE-SR4 100GBASE-LR4 100GBASE-IR4 100GBASE-PIR4 100G AOC/DAC 100G to 4x25G AOC/ DAC

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
