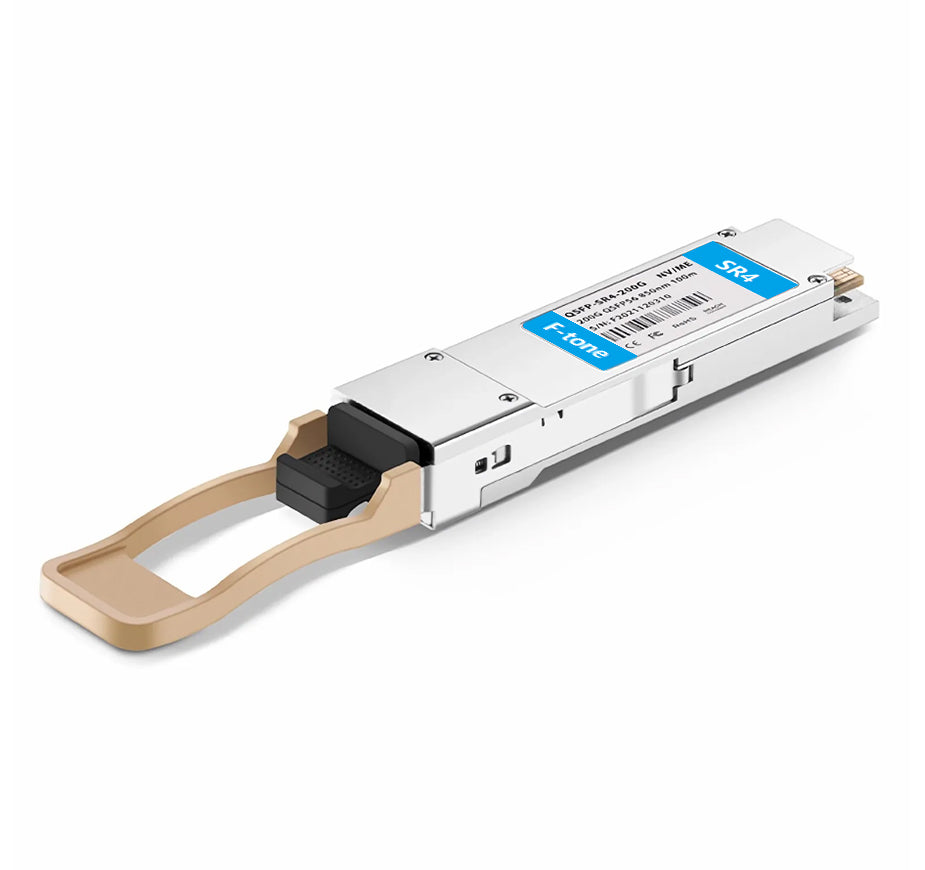

NVIDIA/Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 4 x 50G PAM4 850nm 100m MPO-12/UPC MMF Ethernet Transceiver Module

NVIDIA/Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 4 x 50G PAM4 850nm 100m MPO-12/UPC MMF Ethernet Transceiver Module

Afficher tous les détails

NVIDIA/Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 Ethernet Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The FS for Mellanox MMA1T00-VS Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.

Specifications
NVIDIA/Mellanox Ethernet Compatible MMA1T00-VS Vendor Name F-tone
Form Factor QSFP56 Max. Data Rate 200Gbps
Wavelength 850nm Max. Cable Distance 70m@OM3/100m@OM4
Connector MPO-12/UPC Media MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
TX Power -6.5~4dBm Minimum Receiver Power -6.5dBm
Power Budget 3.5dBm Receiver Overload 5dBm
Max. Power Consumption 4.35W Extinction Ratio >3dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 4x50G-PAM4 Modulation (Optical) 4x50G-PAM4
CDR (Clock and Data Recovery) TX & RX Built-in CDR Inbuilt FEC No
Protocols IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 Application 200G Ethernet, Data centers Interconnect, High performance computing




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
