NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2 x FR4 OSFP IHS/Closed Finned Top 8 x 100G PAM4 1310nm 2km Dual Duplex LC/UPC SMF InfiniBand NDR Transceiver Module

NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2 x FR4 OSFP IHS/Closed Finned Top 8 x 100G PAM4 1310nm 2km Dual Duplex LC/UPC SMF InfiniBand NDR Transceiver Module

Afficher tous les détails

NVIDIA/Mellanox MMS4X50-NM Compatible 800G OSFP 2x FR4 PAM4 InfiniBand NDR Optical Transceiver (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, Dual Duplex LC/UPC, DOM, Closed Finned Top)

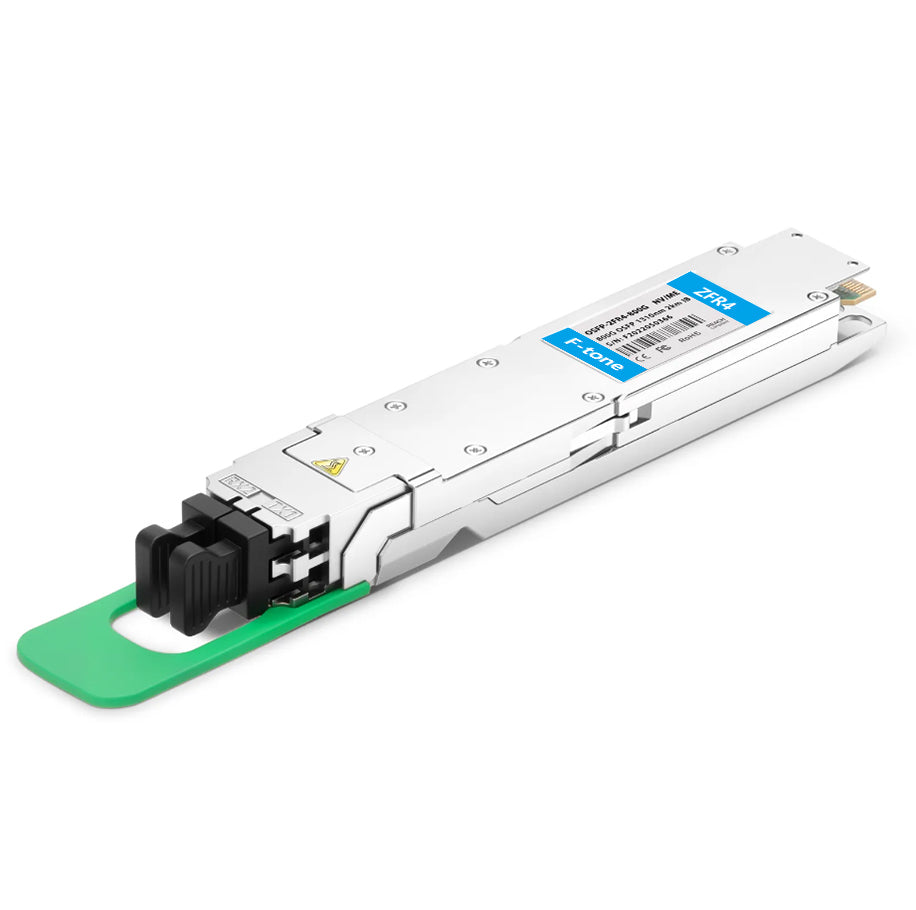

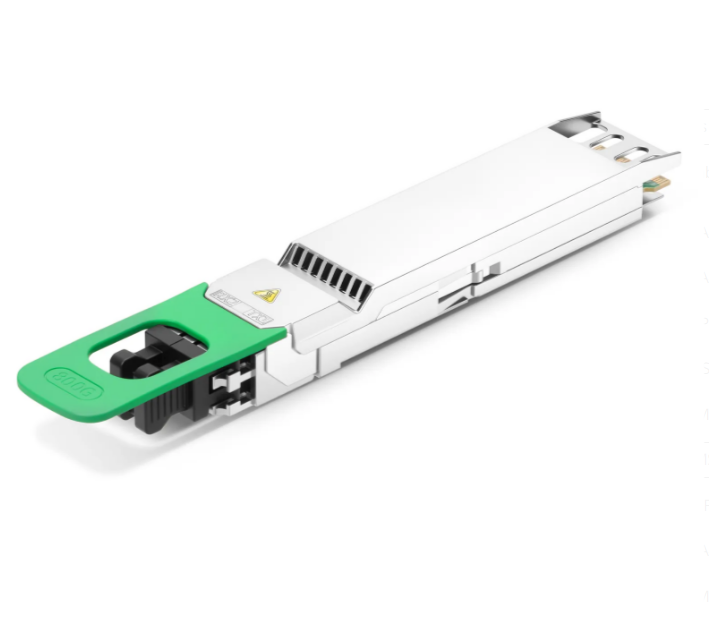

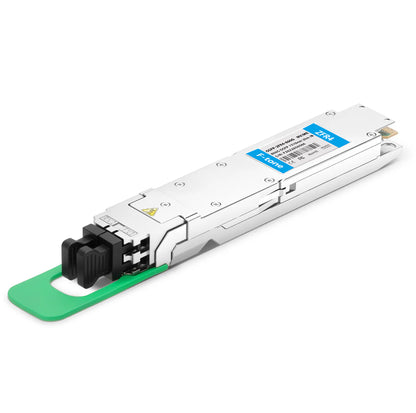

The NVIDIA/Mellanox InfiniBand MMS4X50-NM Compatible OSFP IHS/Closed Finned Top Optical Transceiver is an 800Gb/s 2x 400Gb/s Twin-port OSFP, 2x FR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 100G-PAM4. The dual Far Reach 8-channel (2x FR4) design uses 100G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand NDR end-to-end systems.
The twin-port OSFP IHS/Closed Finned Top transceiver is used in Quantum-2 air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to ConnectX® smart network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.

Note: "Finned-top" transceivers are now called "Integrated HeatSink" (IHS) as the cooling fins are integrated into the OSFP connector metal top. Commonly used in air-cooled switches. "Flat-top" transceivers are now called "Riding Heat Sink" (RHS) as the cooling fins ride on top of the network card or systems internal cages. This is used for both air-cooled and liquid-cooled applications for DGX, ConnectX-7, and BlueField-3 DPUS.

Specifications

Parameter Value Parameter Value
Part Number MMS4X50-NM Vendor Name F-tone
Compatibility NVIDIA/Mellanox InfiniBand Compatible Form Factor Twin-port OSFP IHS/Closed Finned Top
Max Data Rate 850Gbps (8×106.25Gbps) Wavelength 1271nm, 1291nm, 1311nm and 1331nm
Max Cable Distance 2km Connector Dual Duplex LC/UPC
Media SMF Transmitter Type EML
Receiver Type PIN TX Power -3.2~4.4dBm
Minimum Receiver Power -7.2dBm Power Budget 4dB
Receiver Overload 4.4dBm Max Power Consumption 16.5W
Extinction Ratio >3.5dB DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F) Modulation (Electrical) 8×100G-PAM4
Modulation (Optical) Dual 4×100G-PAM4 Protocols OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2
Warranty 5 Years






This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
