ODC Socket to LC/SC/ST/FC 4 Fibers Cable with Outdoor Cable Connector

ODC Socket to LC/SC/ST/FC 4 Fibers Cable with Outdoor Cable Connector

Afficher tous les détails

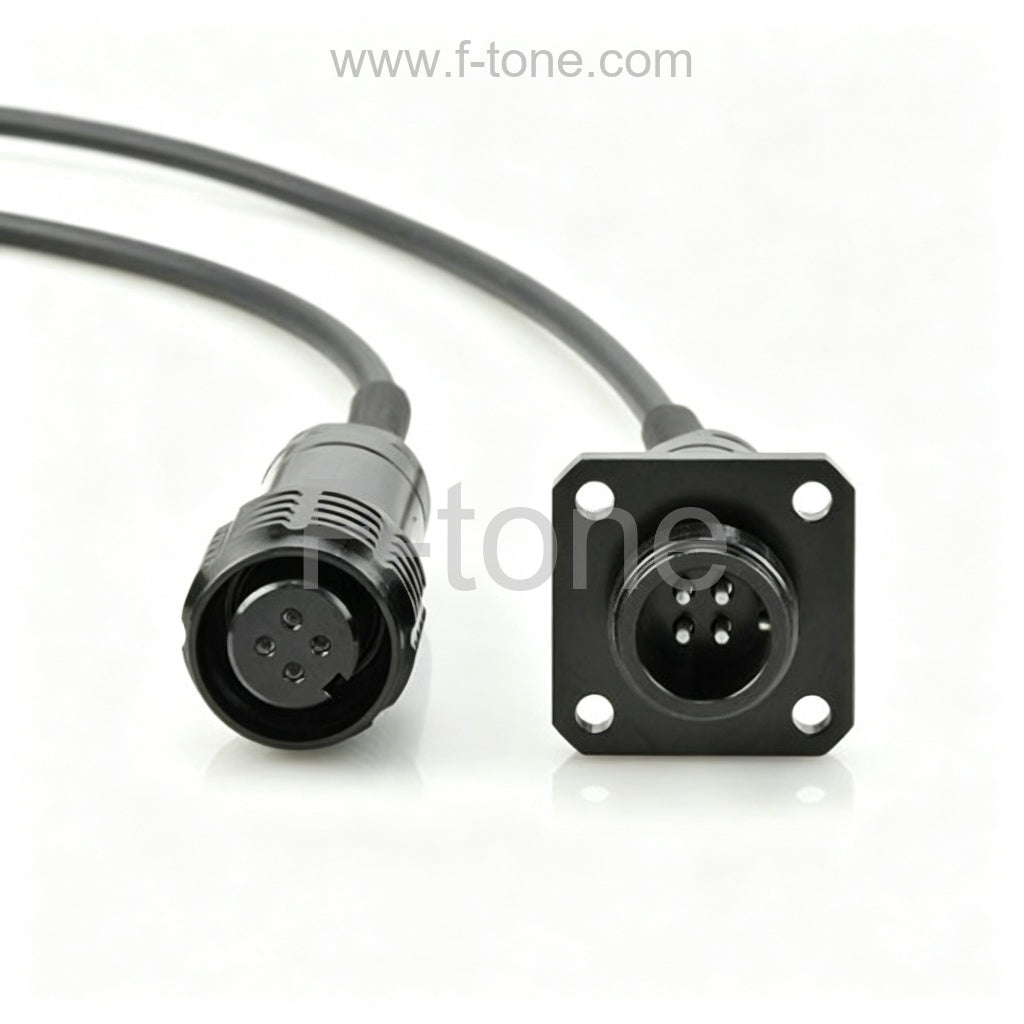

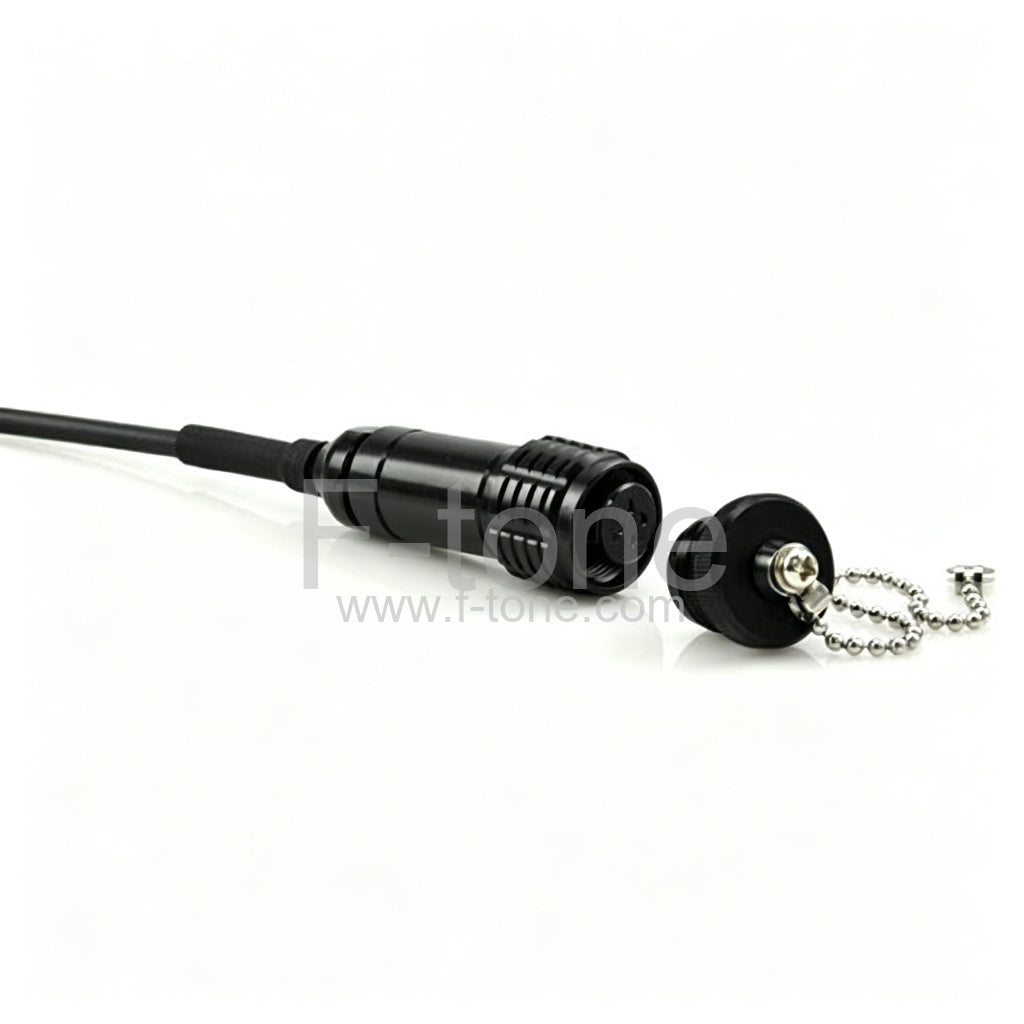

Part Number: ODC-LC-SO4-FM

ODC-4 Outdoor Connector Plug/Socket

Applications

ODC connector is next generation connectors for wireless base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the top of the tower). We developed ODC connector's base on special connectors craft, our ODC connector's interface can be compatible with the mainstream of the current global supplier of ODC connector.

Features

  • 4 fibers，singlemode or multimode
  • Compact design with 2×1.25mm ferrules
  • Built-in socket with square or hexagonal flange
  • Extension connector for cable chaining
  • Screwed locking mechanism
  • Easy and safe intallation
  • Water proof,dust proof and corrosion resistant
  • Water proof protection caps
  • EMI protected
  • RoHs compliant
  • Fulfills performance standard IEC 61753-1 Cat.E
  • Cable Length: 1M
  • Connector: ODC socket to LC/SC/ST/FC

Specifications

<col 269"="" width="119' /><col width=">

Technology Full ceramic ferrule and sleeve
Housing material Nickel plated brass
Mechanical performance ODC plug ≤1000 N tensile load≤30 N static side load
ODC socket ≤30 N tensile load
Installation torque force min.1Nm max.2Nm
Operating temperature IEC 61300 – 2 - 22 -40℃ up to +85℃
Mating durability 1000 cycle
Ingress protection(mate) IEC60529 Ip 68
Salt mist IEC61300-2-26 30 days passed
Vibration IEC61300-2-1 Pass 10-500Hz/10g
Shock IEC61300-2-9 Pass 100g

Optical Performance

Insertion loss
IEC61300-3-34		 Singlemode Typ. ≤0.30dB 97% ≤0.45dB
Multimode Typ. ≤0.30dB 97% ≤0.50dB
Return loss Singlemode ≥50dB

Mechanical Drawing


Sample Picture




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
