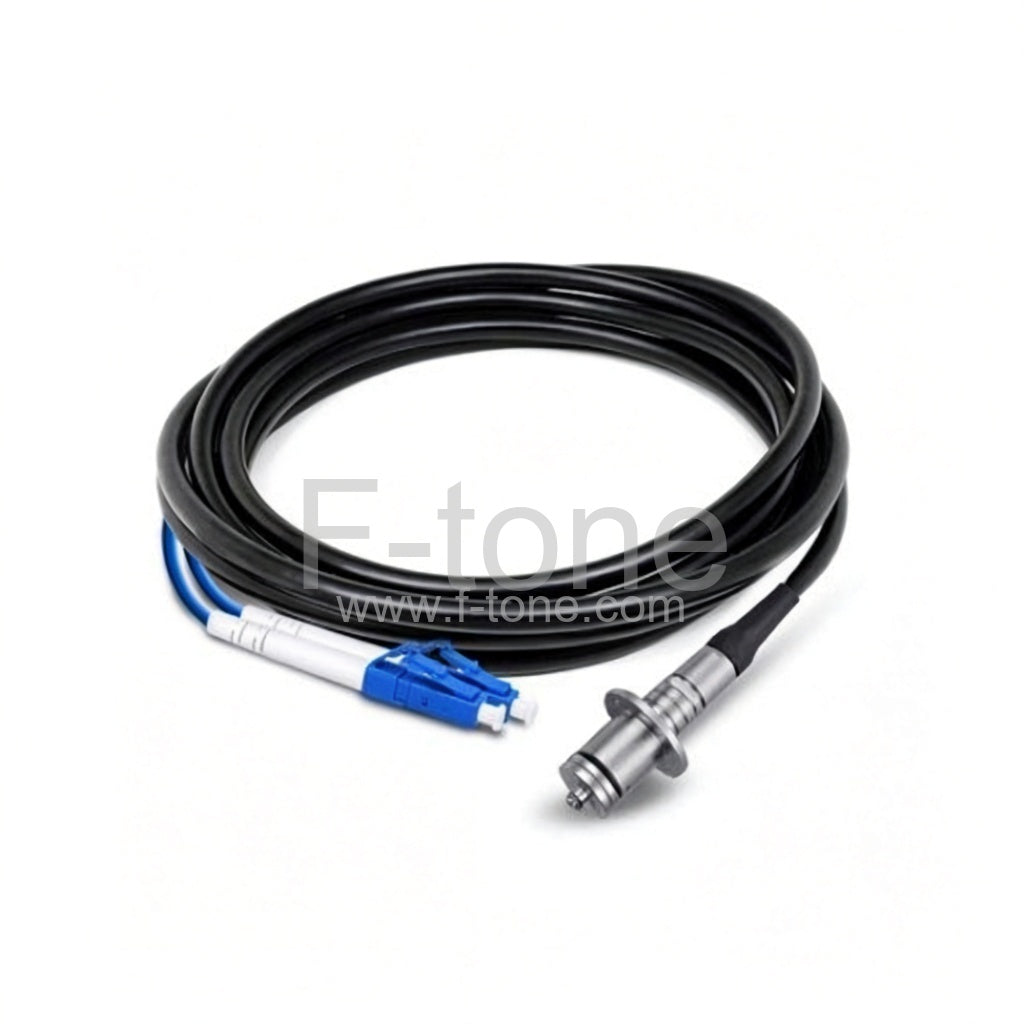

Opto-Electronic Hybrid Waterproof Plug to LC/SC/ST/FC Cable Connector Screw Type

Opto-Electronic Hybrid Waterproof Plug to LC/SC/ST/FC Cable Connector Screw Type

Afficher tous les détails

Part Number: OEHW-P-LC-ST-FM

Screw Lock Type Optoelectronic Hybrid Waterproof Male Plug Fiber Cable Connector to LC SC ST FC

Opto-Electronic Hybrid Waterproof Connector

The Hybrid photoelectric connector, fiber and power cable integration, with simultaneous transmission of the multiplexed optical signal and electric signal characteristics, with a special seal design, the use of safe, reliable connection, and waterproof dustproof and other characteristics, are widely used in remote base stations and remote transmission equipment, can provide customers with 2way fiber /2 way power and 4way fiber /2 way power type photoelectric mixed connector, can also be customized according to customer requirements of production.

Features

  • Thread locking mechanism to ensure long-term reliable connection
  • IP68 protection, salt-mist proof, and EMI protection
  • Easy, reliable and cost-effective installation
  • RoHs compliant
  • Cable length: 1M
  • Opto-Electronic Tye: 2 fiber 2 power; 2 fiber 4 power
  • Connector: Screw opto-electronic hybrid waterproof connector plug to LC/SC/ST/FC

Applications

  • outdoor bad environment using optical fiber communication
  • outdoor communication equipment connected
  • The military communication equipment connected
  • oilfield, mining communication connection
  • remote wireless base station
  • video monitoring system
  • optical fiber sensor
  • railway signal control application
  • intelligent substation communication

Specifications

Insertion loss ≤ 0.7 dB
Return loss ≤ 0.50dB
Channel 2,4
Durability ≥ 500 cycles
Operating Temperature -40 ～85℃

Kind Note:

As plug should work with socket, this product should be ordered together with Opto-Electronic Hybrid Waterproof Socket to LC/SC/ST/FC Cable Connector Screw Type, thus not be order individually


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
