Part Number: OEHW-S-LC-PP-FM

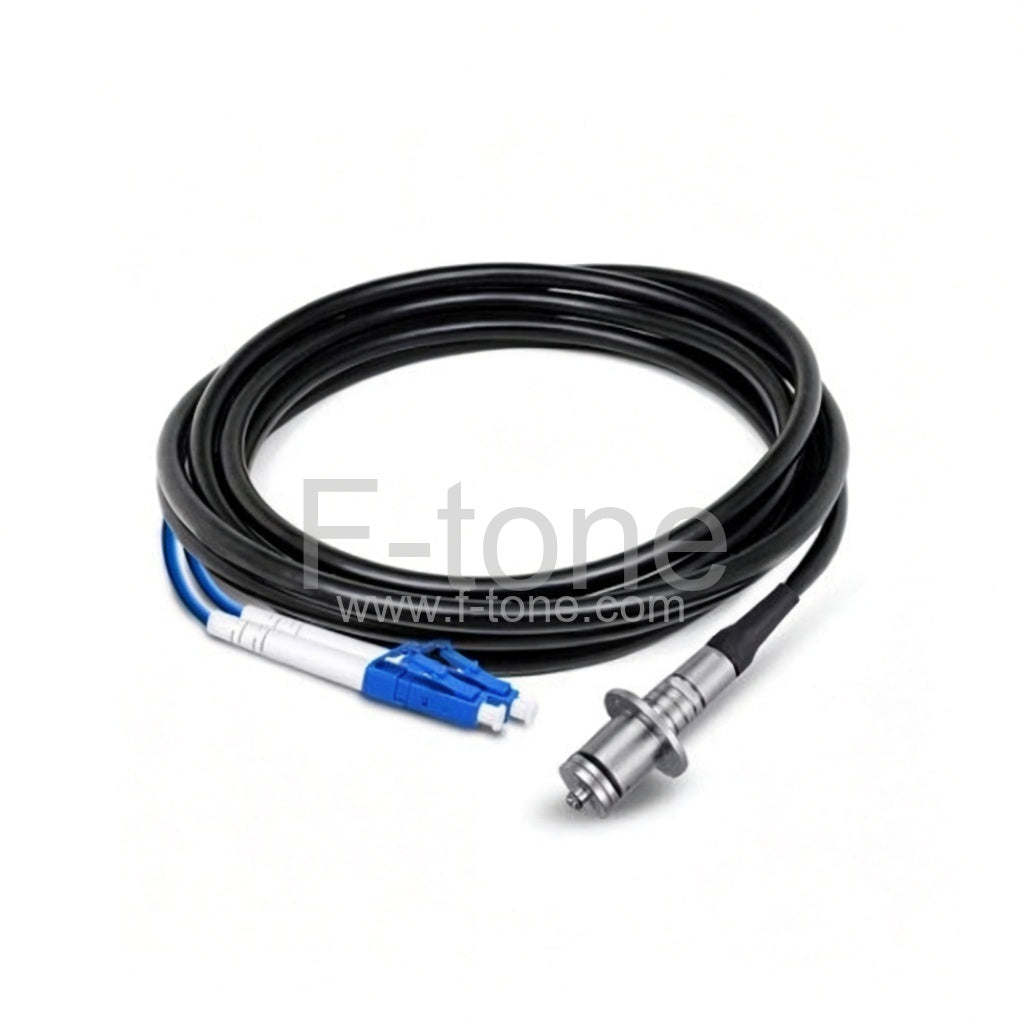

Waterproof Fiber Optic Patch Cable, Opto-Electronic Hybrid Socket to LC/SC/ST/FC, Waterproof Type Connecting
This opto-electronic hybrid fiber optic patch cable combines the optical and electricity in one, with the simultaneous transmission of optical signals and electrical signals and special seal design, to ensure the using security and reliable connection, and has features such as waterproof and dustproof. In F-tone, we can provide customers 2 fibers/2 powers and 4 fibers/2 powers connector type fiber optic patch cables, and it can also be customized according to customer's requirements. It is a lightweight and very compact solution for stadiums, sports arenas or outside broadcast applications and is widely used in remote base stations and other long-distance transmission equipment.
| Product Type | Opto-Electronic Hybrid Cable | Fiber Type (Default) | Singlemode |
|---|---|---|---|
| Connector1 | Opto-electronic Hybrid Socket | Connector2 | LC/SC/FC/ST |
| Fiber counts | 2 fibers(Default),4 fibers | Power Type | 2 powers(Default), 4 powers |
| Cable Diameter | 5mm, 7.5mm | Connecting Type | Waterproof Type |
| Connector Polish | UPC | Shell Material | Stainless Steel |
| Insertion Loss | ≤0.7dB | Return Loss | ≤0.50dB |
| Protection Rating | IP67 | Durability | ≥ 500 cycles |
| Rated Voltage (Default) | 220V | Operating Temperature | -40°C-85°C |
Cable Structure
Features
Safe Locking and Easy Installation
Compared to a traditional screw-thread mechanism, our patch cable is with unique, easy to use, push-pull locking system, which can reduce the time taken to achieve a robust connection. The push and pull system allows the connector to be mated by simply pushing the plug axially into the socket. Once firmly latched, connection cannot be broken by pulling on the cable or any other release sleeve.
Opto-Electronic Hybrid Waterproof Fiber Optic Patch Cable
In F-tone.COM, the Opto-Electronic Hybrid waterproof fiber optic patch cable are execellent for using in all kinds of outdoor conditions, such as outdoor extreme environment using optical fiber communication, the military communication equipment, oilfield, mining communication connection, optical fiber sensor, remote wireless base station, video monitoring system, optical fiber sensor, railway signal control application, intelligent substation communication, and etc.
Kindly Remind
As plug should work with socket, this product should be ordered together with the first item Opto-Electronic Hybrid Screw Plug to LC/SC/ST/FC Waterproof Fiber Optic Patch Cable(Part Number: OEHW-P-S-ST-FS), thus not to order individually.
Opto-Electronic Hybrid Waterproof Fiber Optic Patch Cable
| Item | Parameter |
| Fiber Type(Default) | Singlemode |
| Cable Diameter Range | 5.0mm to 7.5mm |
| Shell Material | Stainless Steel |
| Jacket | TPU/LSZH |
| Ingress Protection Mated | IP68 |
| Insertion Loss | ≤0.7dB |
| Return Loss | ≤0.50dB |
| Tensile Strength(long term) | 200N |
| Tensile Strength(short term) | 600N |
| Durability | ≥500 cycles |
| Rated Voltage(Default) | 220V |
| Operating Temperature | -40°C-85°C |
| Flammability | UL 94 V0 |
| Material Body Connector and Backshell | Thermoplastic & halogen free |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
