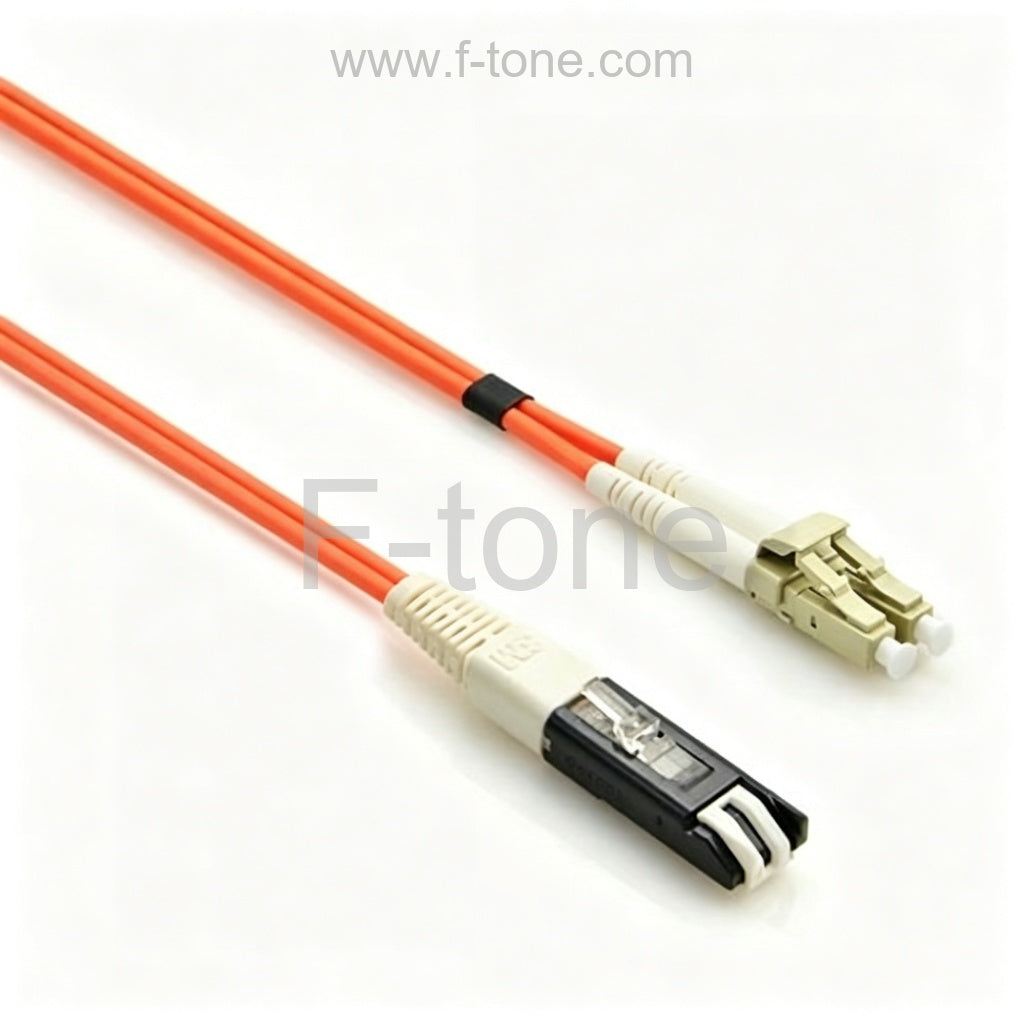

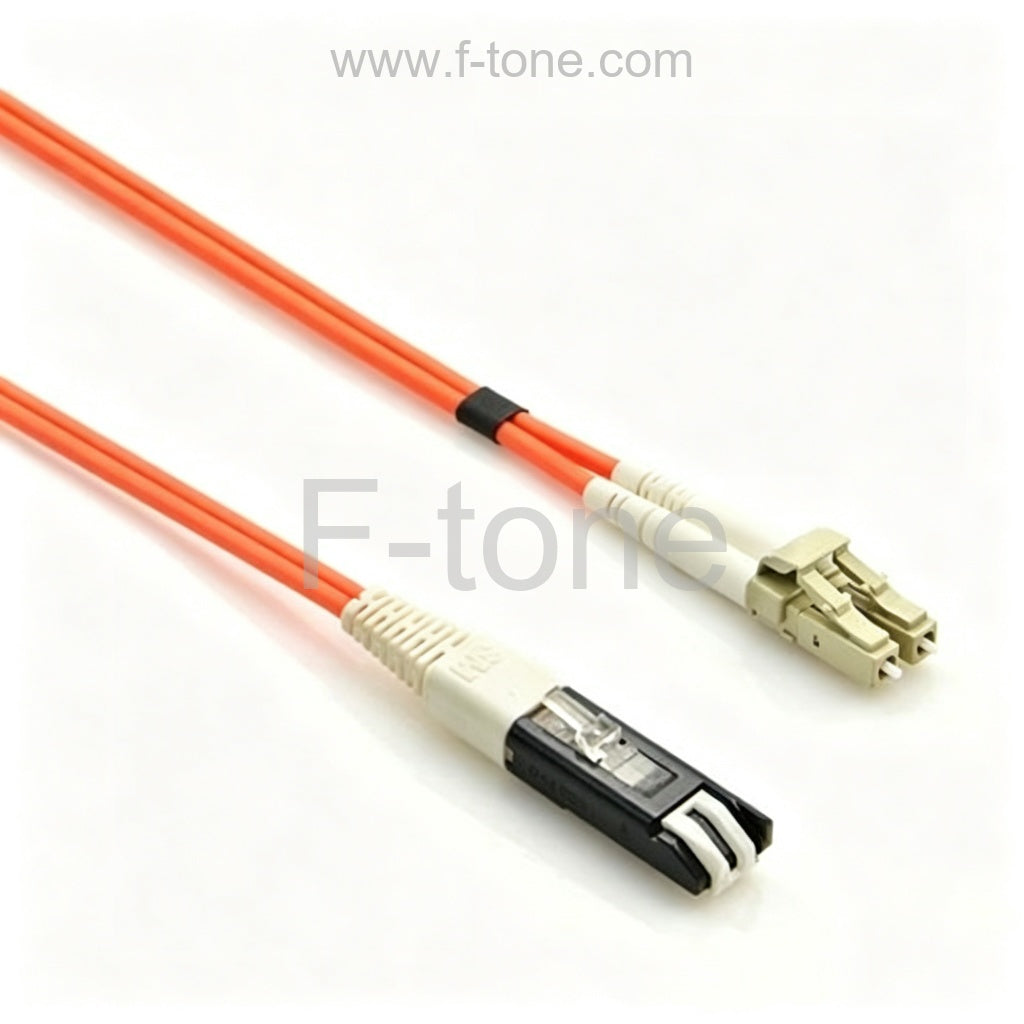

VF45-LC OM1 MM Duplex Patch Cables 1M Length

VF45-LC OM1 MM Duplex Patch Cables 1M Length

Afficher tous les détails

Part Number: OM1-VF45-LC-X-FM

VF45-LC 62.5/125um OM1 MM Duplex Patch Cables 1M

Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.

Characteristics

  • GGP Fiber
  • Proven 3MTM Technology
  • Allows Tighter Bend Radius (3/8 inch)
  • Easier to Route and Manage
  • Exceptional Strength and Durability
  • Withstands Abuse

Specifications

Item Specifications
Attenuation: < 0.75 dB max
Reflection: > 20 dB max
Mating durability: 500 cycles, <0.75 dB max
Strength of coupling: > 33 N, < 0.75 dB max
Plug cable retention: Tensile load > 66 N, Side Pull > 6.6 N, < 0.75 dB max
Plug flex: 100 Cycles, ± 90 degrees, 0.5 kg, < 0.75 dB max
Plug twist: 10 Cycles, ± 2.5 revolutions, 15 N, < 0.75 dB max
Cold: -10°C for 96 hours, < 0.3 dB increase
Heat: +60°C for 14 days, < 0.3 dB increase
Thermal cycling: -10°C to 60°C, 5 Cycles, < 0.3 dB increase
Vibration: 10 to 55 Hz, 30 min. each axis, < 0.3 dB increase
Connector Style: Crimp, Polish
Connector Type: VF45-SC

Sample Picture

Details


Order Information

  • Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom
  • Cable Jacket Type: R-Riser; L-LSZH;Custom
  • Fiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);Custom
  • Second Connector End: V-VF-45 Plug;ST;SC;LC;Custom
  • First Connector End is Always Volition VF-45 Plug

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
