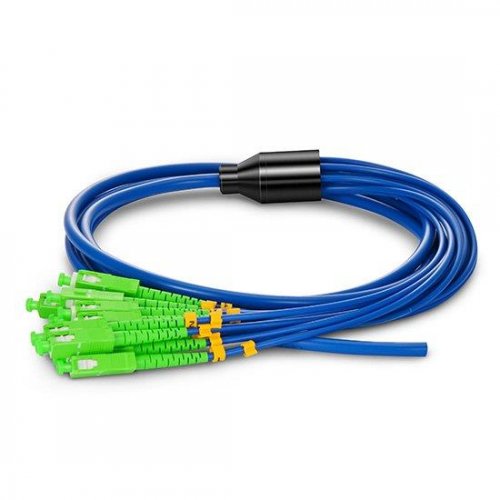

12-fiber 3.0mm OM2 Multimode LC/SC/ST/FC Armored Bunch Pigtail

12-fiber 3.0mm OM2 Multimode LC/SC/ST/FC Armored Bunch Pigtail

Afficher tous les détails

Part Number: OM2-12F-AB-FM

12-fiber 3.0mm 50/125 OM2 Multimode LC/SC/ST/FC Armored Bunch Pigtail

Fiber Optic Armoured Pigtail are with stainless steel tube inside the outer jacket to protect the central unit of the cable. So they will not get damage even they are stepped by an adult and bit by rodents.

Key Features

  • Mini armored-protection
  • High pull & pressure endurance
  • Prevent bite by rodents
  • Torsion damage resistance
  • Strong and flexible, easy to use
  • OFNR (Riser) Rated
  • Standard boot on each end

Applications

  • Telecommunications
  • CATV, LAN, MAN, WAN,
  • Test & Measurement
  • Military industry
  • Medical

Specification

Parameters Specification
Fiber Type (um) 12 fiber multimode 50/125
Connector FC/SC/ST/LC optional
Cable Jacket Armored/Military Tactical
Insertion Loss (dB) ≤ 0.20
Return Loss (dB) ≥ 35
Operating Temperature -40 ~ +80 ° C
Storage Temperature -40 ~ +85 ° C
Color Grey

Custom Information

F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
