Part Number: OSW-2×2LGX-FM

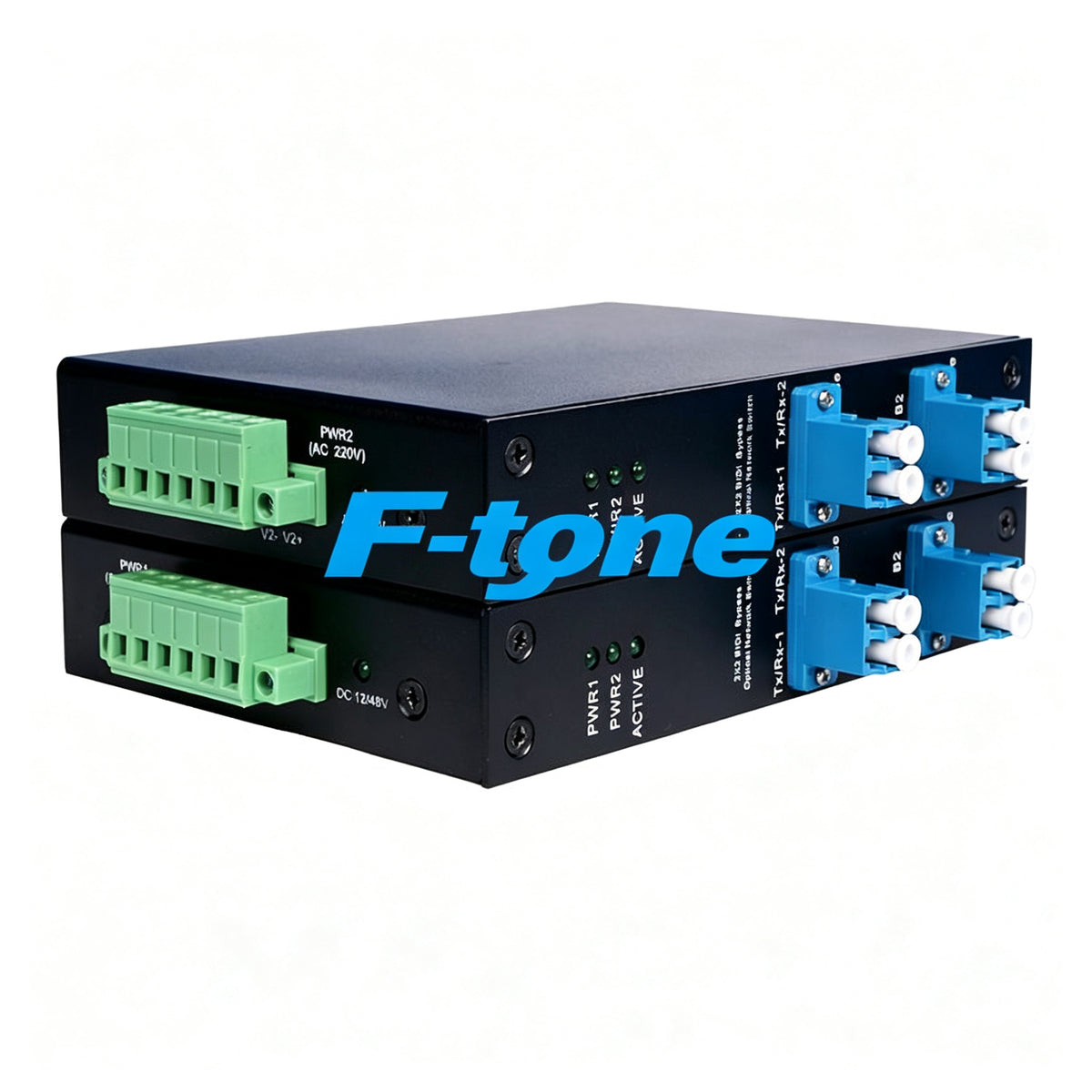

2x2 Bypass Optical Switch LGX Package OBS Opto-Mechanical
F-tone' 2x2B LGX optical switch provides excellent performance on your network and posses compact package and competitive cost. It supports all wavelength at 850nm and 1260nm~1650nm. It can also support 10 /1Gbps fiber Gigabit Ethernet networks.
| Features |
Applications |
|---|---|
| Unmatched Low Cost | Ring Network |
| Low insertion loss | Node Bypass Protection |
| Non-Latching Type | SDH ADM Ring |
| Available in Single Mode / Multi Mode | WAN Optimization |
| Power on Time delay(0, 60, 120secs) | Network Maintenance |
| LED indicators for Power and optical switch status |
Optical Route
| Status One | Status Two |
Dimention:
L130×W102×H30mm,below is the faceplate of this LGX optical switch.
Application Example
The production workshop show
Performance Specifications
| Parameters | FT-2×2B-MM/SM | |
|---|---|---|
| Wavelength Range（nm） | 850±40 | 1260~1650 |
| Operating Wavelength(nm) | 850 | 1310/1550 |
| Insertion Loss(dB) | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
| Return Loss(dB) | MM≥30 SM≥50 | |
| Crosstalk(dB) | MM≥35 SM≥55 | |
| PDL（dB） | ≤0.25 | |
| WaveLength Dependent Loss（dB） | ≤0.25 | |
| Temperature Dependent Loss（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Power Supply（V） | USB DC: 5V | |
| Power Consumption（W） | <2.5 | |
| Lifetime（time） | ≥10^7 | |
| Switch Time（ms） | ≤8 | |
| Delay after power restart（s） | 0, 60, 120 | |
| Transmission Power（mW） | ≤500 | |
| Operating Temperature(℃) | -5~+70 | |
| Storage Temperature(℃) | -5~+85 | |
| Operating Humidity(%RH) | 5～85 | |
| Operating Humidity(%RH) | 5～85 | |
| Weight(g) | 250 | |
| Dimension（mm） | (L)130.0×(W)102.0×(H)30.0 | |
1、Specifications may change without notice.
2、Above specification are for device without connector.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
