Part Number: PDH-16E1-2-100M-19

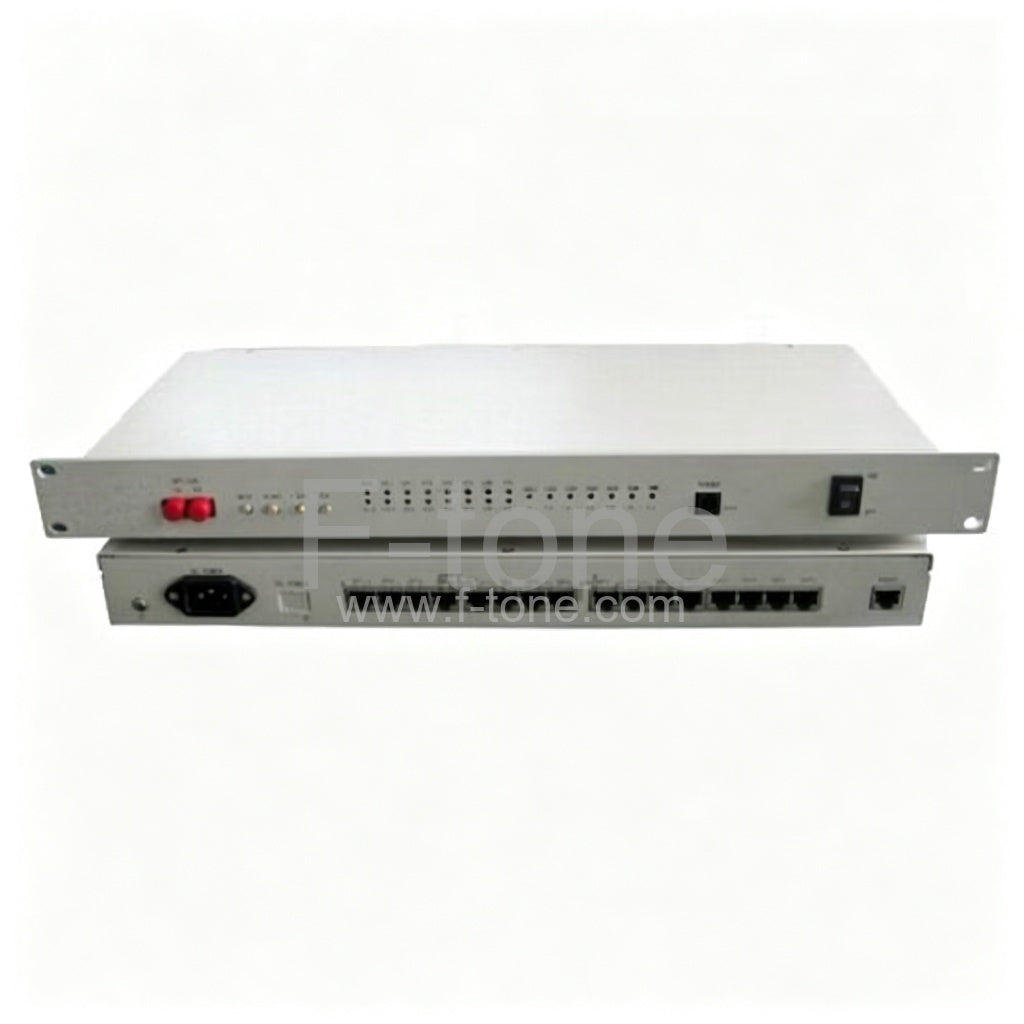

16E1 10/100M 1+1 Fiber Back up Fiber Optical Multiplexers Singlemode Dual Fiber 20KM 19 Inch Rack

1+1 series fiber optical MUX is point-to-point optical transmission equipment developed based on ultra large scale integrated circuit.Have 1 ethernet interface,share 10 or 100M bandwidth. Have perfect alarm, high reliability and stabilization, low power consumption, high integration, easy installation and maintenance. The device is popularly with telecommunication operator. It is suitable in business for communication operator, government and kinds of entities.

Specifications

  • Single mode dual optical port-8 channels of E1 ports
  • Low power consumption
  • ISO certification
  • Optional Power redundancy to ensure stable system
  • 1+1 fiber back up are provided
  • Optional function of ALS and SNMP
  • Optional orderwire phone are provided

Main Feature

  • The 16E1 to fiber multiplexer
  • 1 Enthernet port share 10M or 100M bandwidth
  • Provide function of 16E1 remote loop,fiber local loop,and 1 interface phone
  • Optional power 1+1 to ensure stable system
  • Two fiber two direction and single fiber two direction
  • 1+1 power, orderwire phone and the ALS and SNMP are optinal,Please state the requirement when in order
  • 16E1 PDH multiplexer realizes 1~16E1 transmission over fiber
  • E1 spur track loop back testing features, easy to be installed and maintenance
  • External dimensions: 19-inch rack (with distribution frames rack)
  • Provided the 1+1 fiber back up
  • Optical optional by customer 's requirement

Interface

E1 interface 16E1 interface for 16E1
E1 rate: 2.048Mb/s±50ppm
Code type: HDB3
E1 Style: Pinfet
E1 comply with ITU-T G.703
Jitter compl y with ITU-T G.823 and G.742
E 1 with DB37. Be ab le to be with 75Ω (BNC) or 120Ω (RJ45) by adaptor in the accessory
Fiber Optical rate: 42.240Mbit/s
optical style:4B5B
Default: dual fiber, single mode, 20km (40km optional)
connector: FC /SC/ST
wavelength:1310nm
Receiver sensitivity:≤ -38dBm(BER ≤ 10-11)
Ethernet 1 Ethernet ports with RJ45 connector
MAC address table capability : 1024
MAC address table aging time
The minimum frame length : 64bytes
The maximum frame length : 1916 bytes
Working mode : full/half duplex configurable
Support VLAN, Stream control
Bandwidth : 1 Ethernet ports shared 10 or 100M bandwidth

Power Requirements

  • Power Input: AC /DC optional
  • AC180V~240V
  • DC-36V~DC-72V
  • DC+20V~DC+36V
  • Power Consumption: <6Walt

Working Environment

  • Operating Temperature: 0℃ ~+50℃
  • Storage Temperature: -40℃ ~+70 ℃






This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
