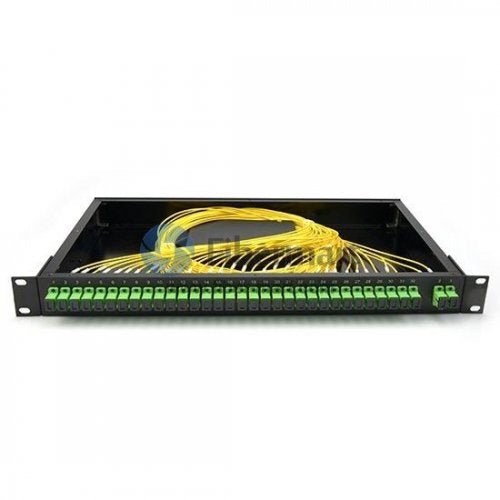

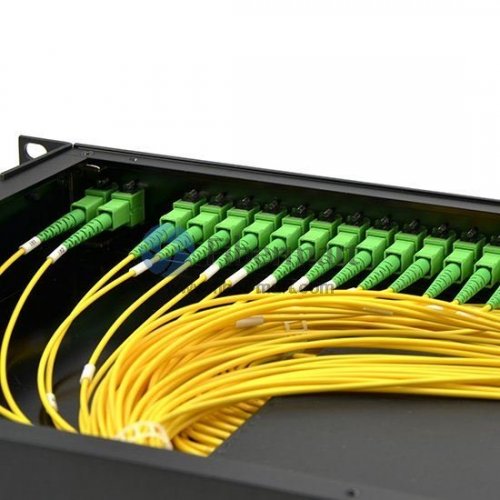

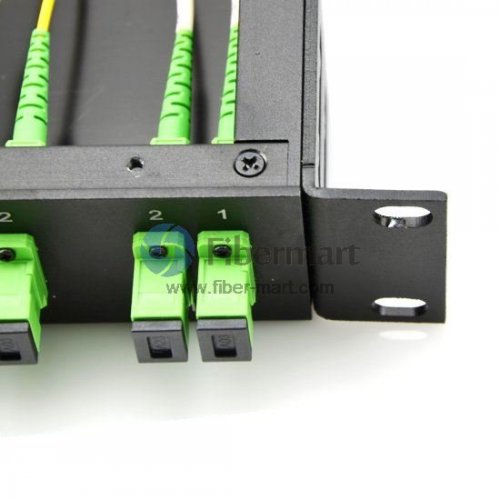

2x32 Fiber PLC Splitter with 2U LGX Metal Box

Part Number: PLC-L-2X32

Fiber PLC Splitter 2x32 with 2U LGX Metal Box

PLC Splitter is based on planar lightwave circuit technology.
F-tone 2x32 Fiber PLC Splitter can distribute or combine 2 optical signals into 32 outputs fibers.

The 2x32 PLC Splitter, with 1.5m pigtail length G.657A Fiber, FC, SC, ST & LC connectors for choice, 2U LGX metal box package, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting

LGX Box PLC Splitter Features

• Low insertion loss
• Low Polarization Dependent Loss
• Good channel-to-channel uniformity
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability
• Telcordia GR-1209-CORE-2001 Compliant
• Telcordia GR-1221-CORE-1999 Compliant
• Fiber input: 0.9 mm
• Fiber output: 0.9 mm
• Standard LGX Metal Box- Durable Package, Protective, Really Suitable for Outdoor Use

LGX Box PLC Splitter Applications

• Fiber to the point (FTTX)
• Fiber to the home (FTTH)
• Passive optical networks(PON, GEPON)
• Local area networks (LAN)
• Cable television (CATV)
• Telecommunication Networks

Mechanical Drawing

This is only for reference

V.S FBT Coupler, the advantages of PLC are as follows

• The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
• High spectral uniformity, can splitter the signals on average
• Compact structure, small volume
• The cost advantage is very obvious on many splitter channels

Order Information

F-tone provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16, 2x2, 2x4, 2x8, 2x16 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9mm for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.

LGX Box Type Advantage

F-tone LGX box type PLC Splitter is the best choice to install on the above 4U Rack Chassis, which is widely used in FTTH networks.

The 4U Rack Chassis features Versatile cable management as below:
Glass door-provide a good cover for inside LGX device, protect from dust and damage.
Cable Management Bar, rear (4 hook and Loop Fasteners included)- provides a trough where excess cable can be stored
12 pcs LGX box capacity- benefit for high density center

Sample Pictures

F-tone provides a various of 1xN and 2xN PLC ABS box splitters. The ABS Box PLC Splitter with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about 1x2 Fiber PLC Splitter SMF-28e fiber with Plastic ABS Box Package, please contact us at [email protected].

• Our Factory

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
