1x2 Fiber PLC Splitter with 1U 19 Rack Mount Metal Box

1x2 Fiber PLC Splitter with 1U 19 Rack Mount Metal Box

Afficher tous les détails

Part Number: PLC-U-1X2

Fiber PLC Splitter 1x2 with 1U 19 Rack Mount Metal Box

1x2 PLC Splitter, G.657A Fiber for Input & Outside, FC, SC, LC or ST connectors for choice.
1x2 PLC Splitter divides or combines a signal inputs to 2 outputs.

Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. F-tone PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
F-tone provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.

1U Rack Mount PLC Splitter Features

  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Mechanical
  • Stability Telecordia GR-1221 and GR-1209
  • Components through TLC-Certified,Conform to YD1117-2001
  • Operating environment: -40ºC to +85ºC
  • High Polarization Extinction Ratio & Excellent Uniformity
  • G.657A Fiber

1U Rack Mount PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment

Mechanical Drawing


F-tone offer LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

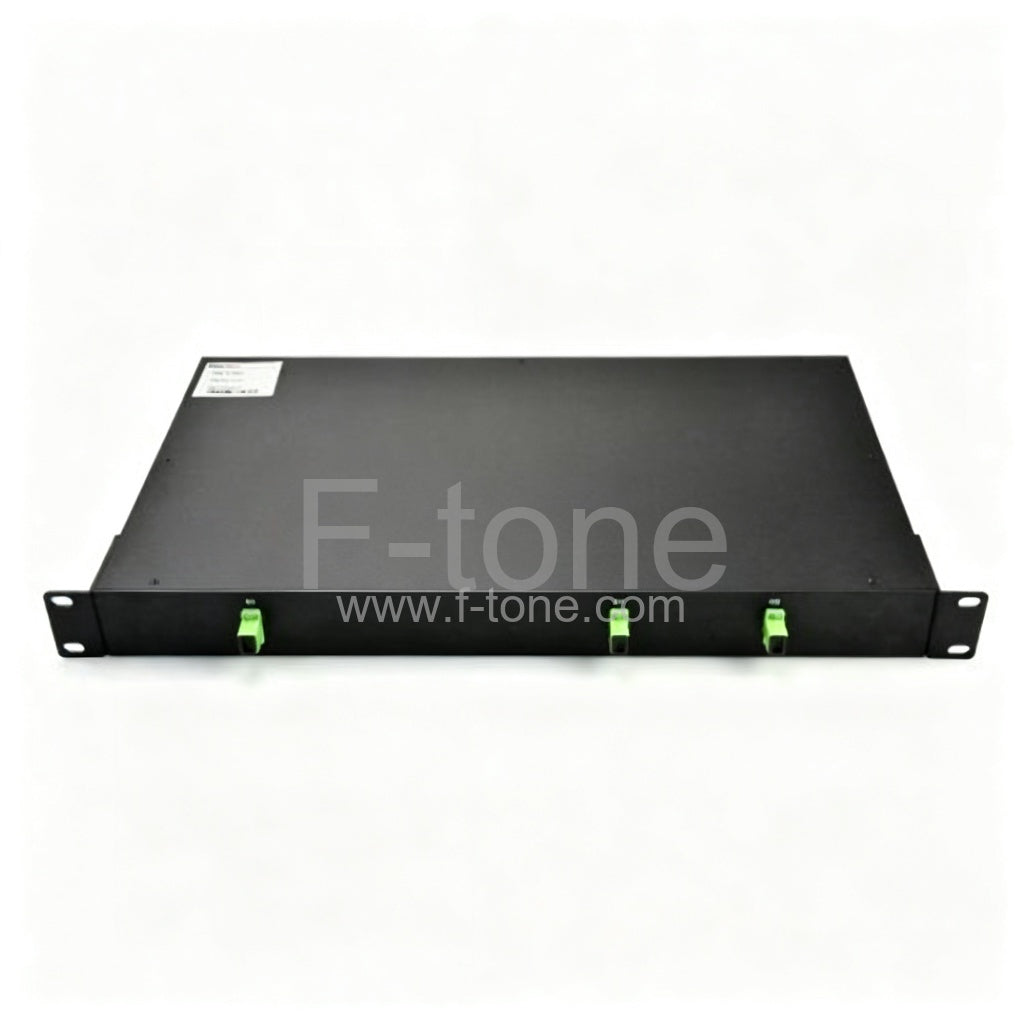

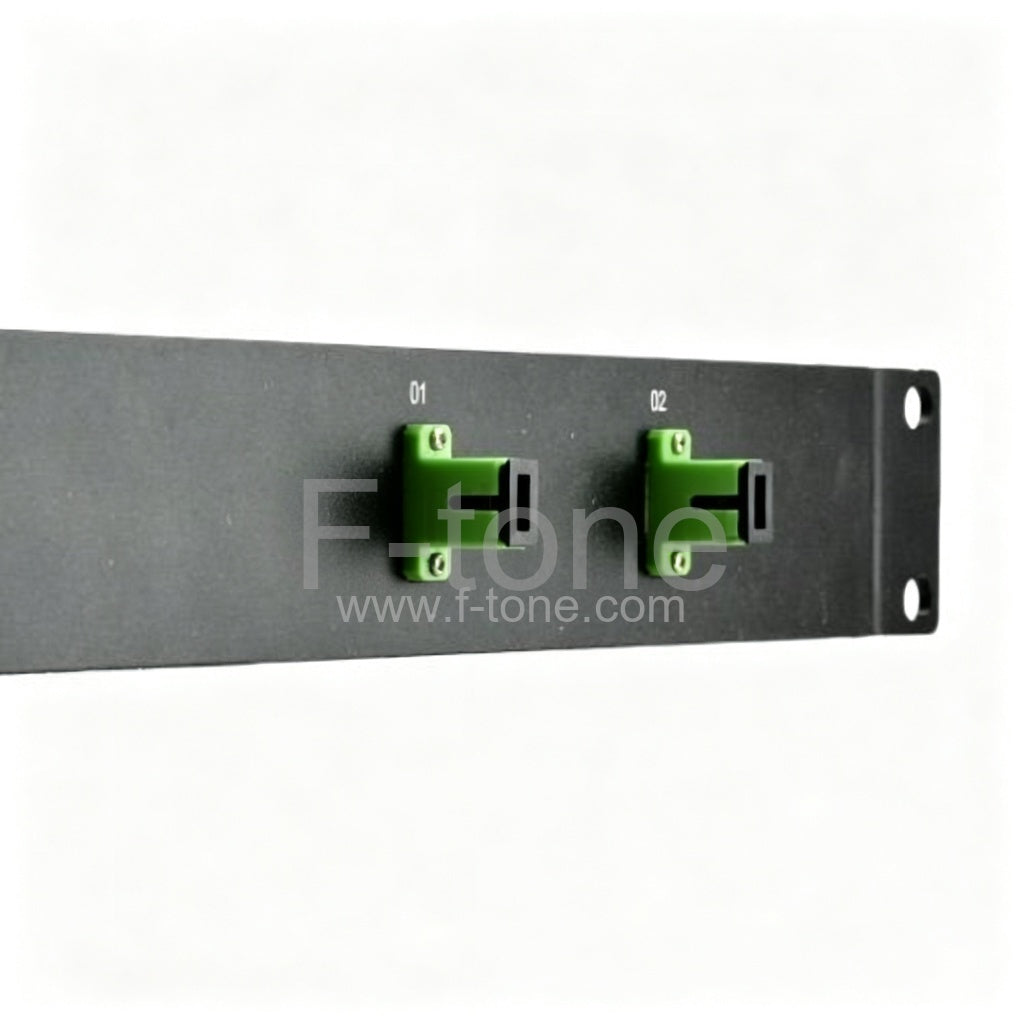

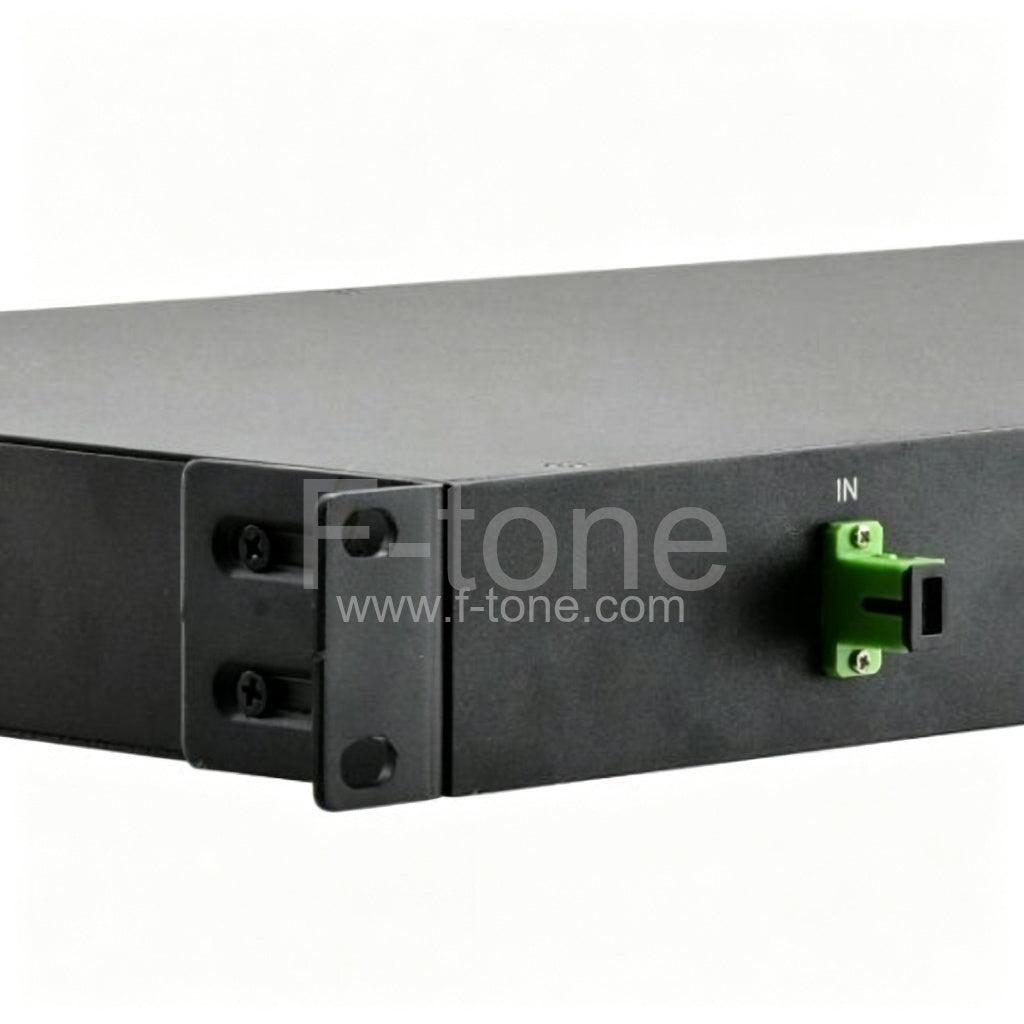

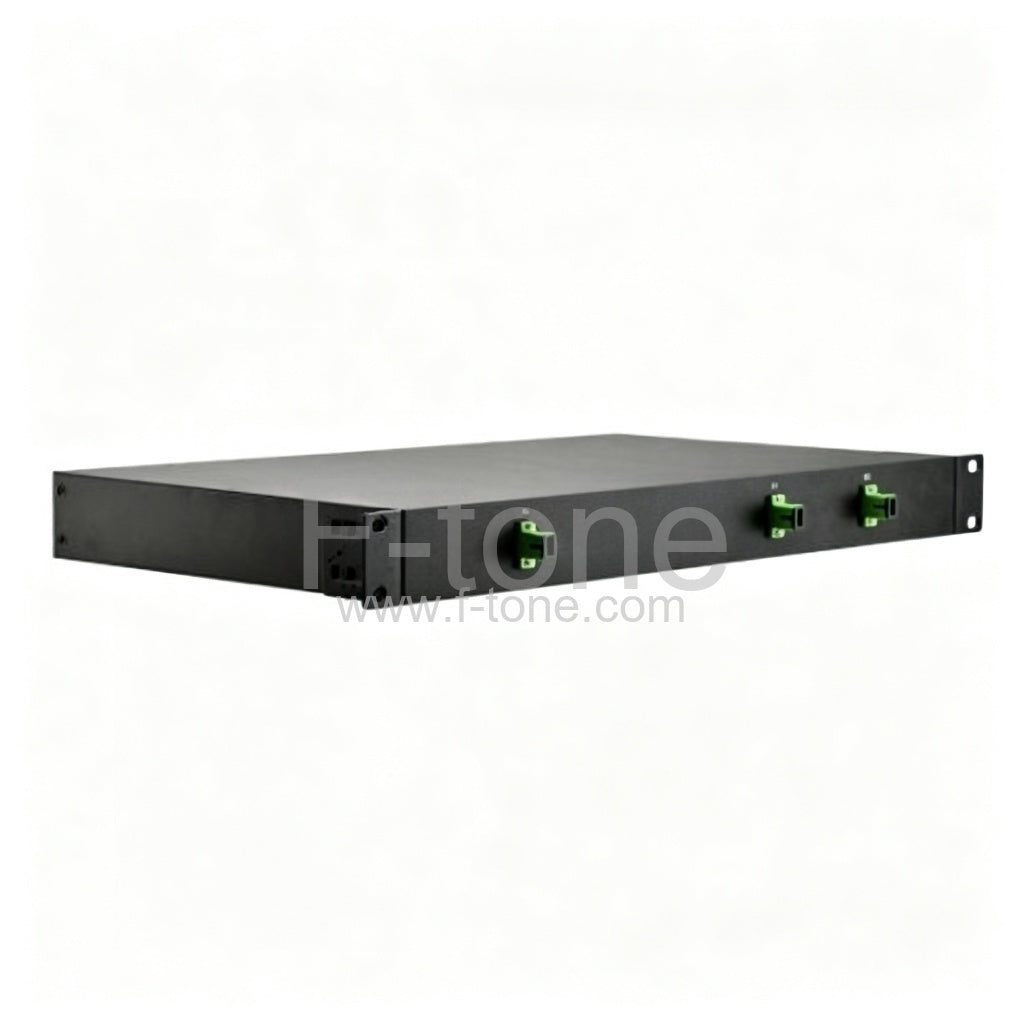

Sample Picture

V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels

Order Information

F-tone provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32,1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. The length of pigtail can be also customized; welcome to contact us for more details.

  • Our Factory


































Parameter Port Configuration
1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type G.657A
Operating Wavelength(nm) 1260～1650
Insertion Loss(dB) Typical 3.9 7 10.2 13.2 16.2 19.7
Max 4.2 7.4 10.7 13.7 17.1 21.2
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss (-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
