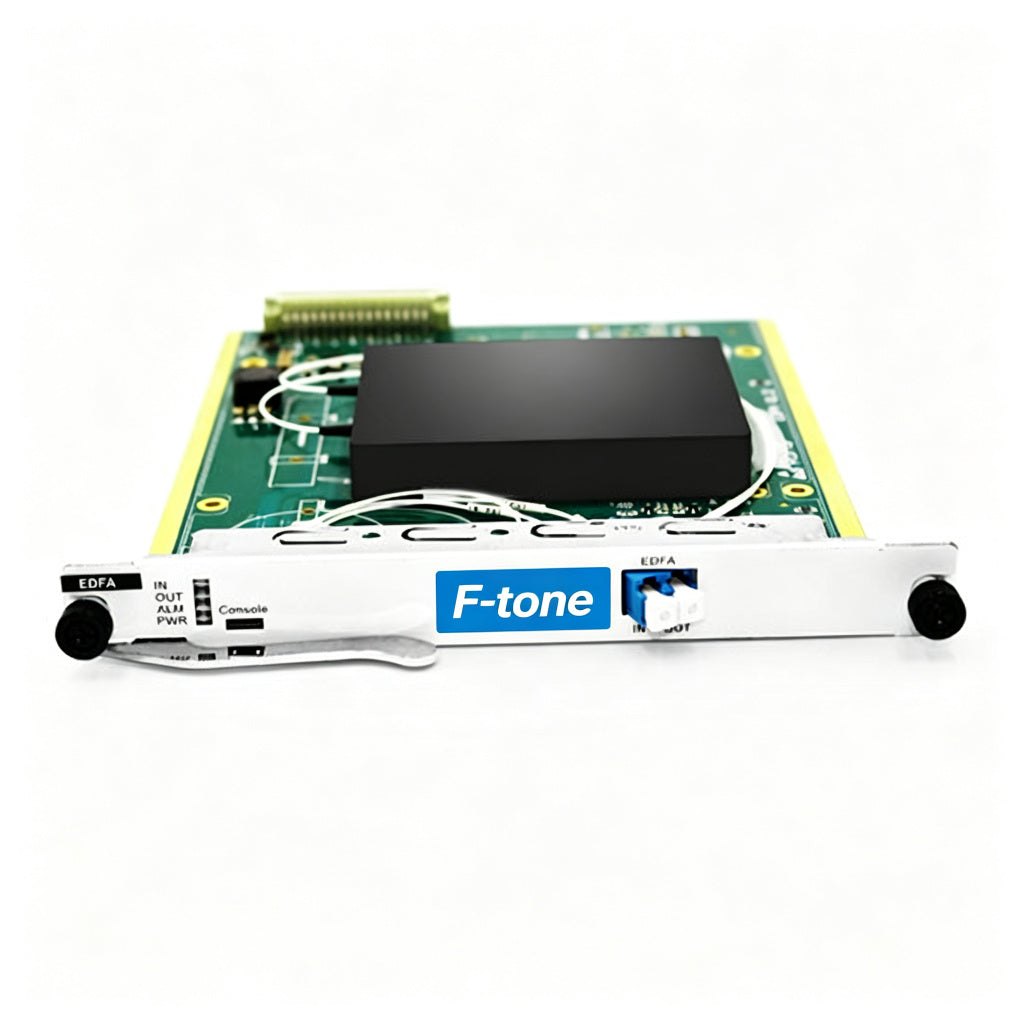

23dBm L-Band Polarization Maintaining PM EDFA Fiber Optic Amplifier

23dBm L-Band Polarization Maintaining PM EDFA Fiber Optic Amplifier

Afficher tous les détails

Part Number: PM-EDFA-23L

PM EDFA Fiber Optic Amplifier 23dBm Output L-Band Benchtop

Description

This optical amplifier is high stability output Polarization Maintaining (PM) EDFA. The key components of the product are high reliability PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power,the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.

Features

  • Output stability <0.1dB
  • Single mode PM output
  • High stability and reliability: MTBF＞100000 hours
  • Perfect status monitoring interface: RS-485 and RS-232
  • High precision AGC/APC circuit: power control accuracy typ ±0.05dB
  • Intelligent temperature control system: power consumption and hot radiation reduce 30％ than common products
  • Compact size and circuit
  • OEM is optional
  • Compatible with Bellcore GR-1312-CORE

Applications

1. PM fiber sensor
2. Coherent detection
3. Free space optical communication
4. Research and Design area

Example

Mechanical Structure


Size:280×260×112mm

Order Information

Product Category Application Source Output power Wavelength Voltage Interface
Fiber Amplifier B:Benchtop Fiber amplifier -3~10dBm 10：10dBm 1550:1550nm 1.110VAC 1: SC/UPC
other 13:13dBm 2.220VAC 2: SC/APC
23：23dBm 3: FC/UPC
4: FC/APC
5: LC/UPC
6: LC/APC

Specifications

Parameter Symbol Min Typ Max Unit
Wavelength* λ c 1530 1550 1560 nm
λ 1060 1030 1060 1090 nm
Output power* Po ---- ---- 200 mw
Input Power* Pi ---- ---- 10 mw
Gain G ---- 20 45 dB
Noise Figure NF ---- ---- 5.5 dB
Output power stability Δ Tl ---- ±0.05 ±0.1 dB
Return Loss RL 45 ---- ---- dB
Input/output Isolation ISO 30 ---- ---- dB
Input Pump Leakage PLKin -30 ---- ---- dB
Output Pump Leakage PLKout -40 ---- ---- dB
PDG PDG ---- ---- 0.2 dB
PMD PMD ---- ---- 0.5 ps
Voltage V 174 ---- 260 VAC
Comsunption Pc ---- ---- 15 W
Operating Temperature Tw 0 ---- 40 ℃
Storage Temperature Ts -40 80 ℃

*Optional




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
