Part Number: Q28-100/112G-20-FM

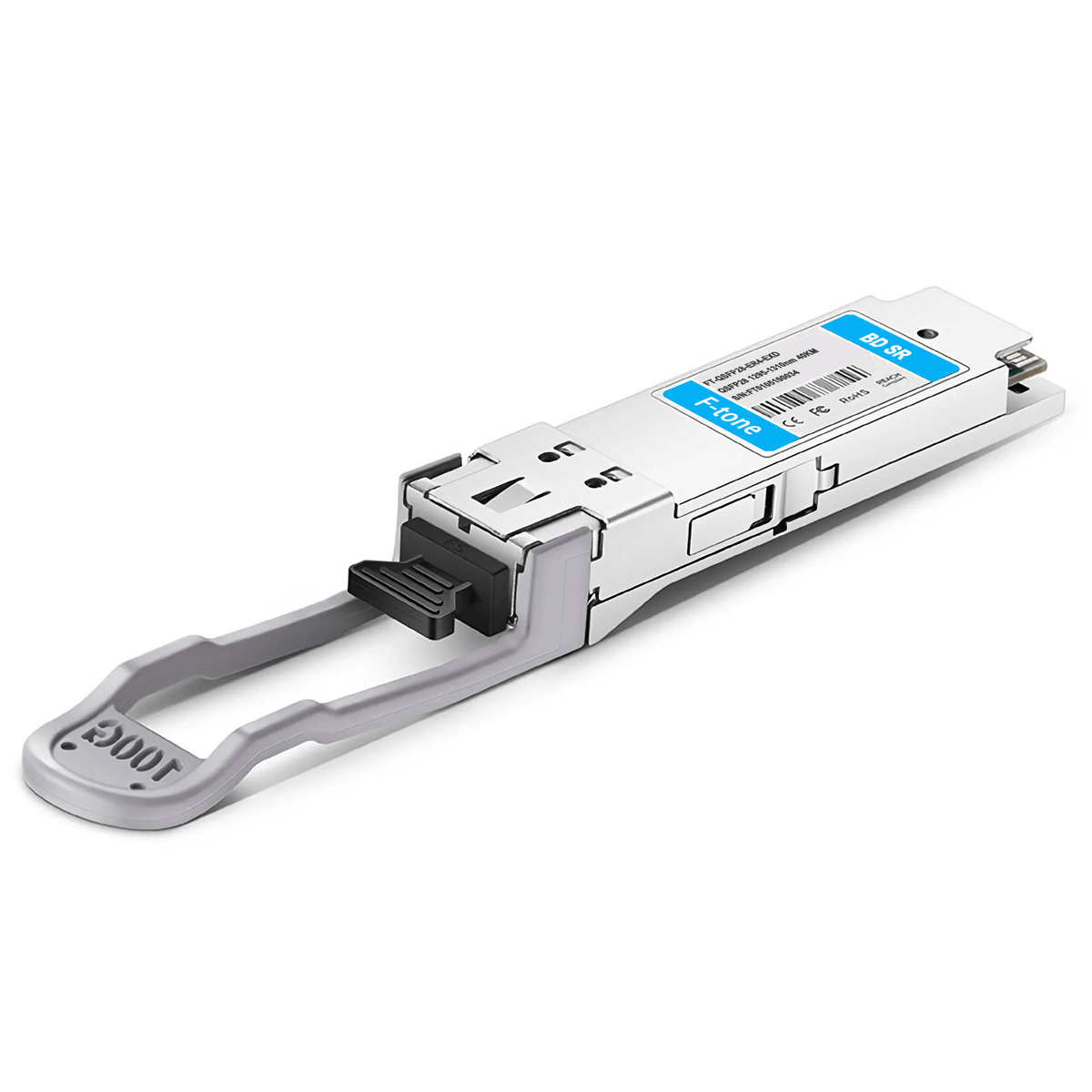

100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module (SMF, 1310nm, 20km, LC, DOM)

The 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 20km over single mode fiber(SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

Description

Part Number QSFP28-LR4-100G Vendor Name F-tone
Form Factor QSFP28 Max Data Rate Dual Rate 103.1Gbps and 112Gbps
Wavelength 1310nm Max Cable Distance 20km
Connector LC Duplex Cable Type SMF
Transmitter Type 4 x LAN WDM DML TOSA Receiver Type 4 x PIN ROSA
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power(100G) -1.0~4.5dBm Receiver Sensitivity(100G) <-9.5dBm
TX Power(112G) 0~4dBm Receiver Sensitivity(112G) <-9.0dBm
Power Consumption ≤3.5W Extinction Ratio >4dB
Modulation Format NRZ CDR (Clock and Data Recovery) TX & RX Built-in CDR
Transmit and Dispersion Penalty 2.2dB Powerbudget 8.5dB
Packaging Technology BOX Packaging Host FEC Supported
EMC (Electro Magnetic Compatibility) Supported Protocols 100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1F
Application 100GBASE Ethernet, Telecom, 5G Network Mid/Backhaul Warranty 5 Years
