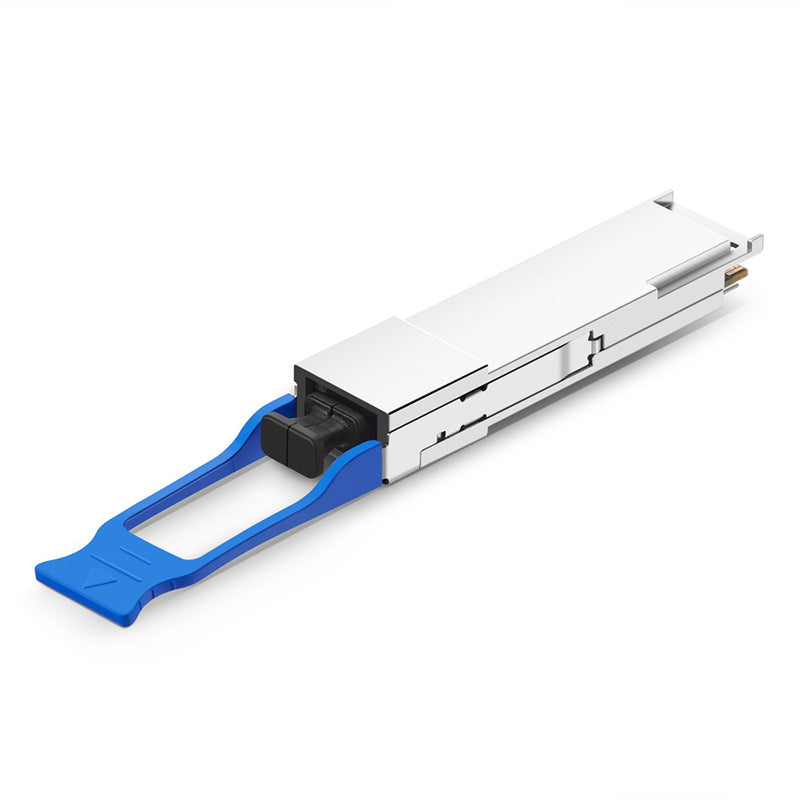

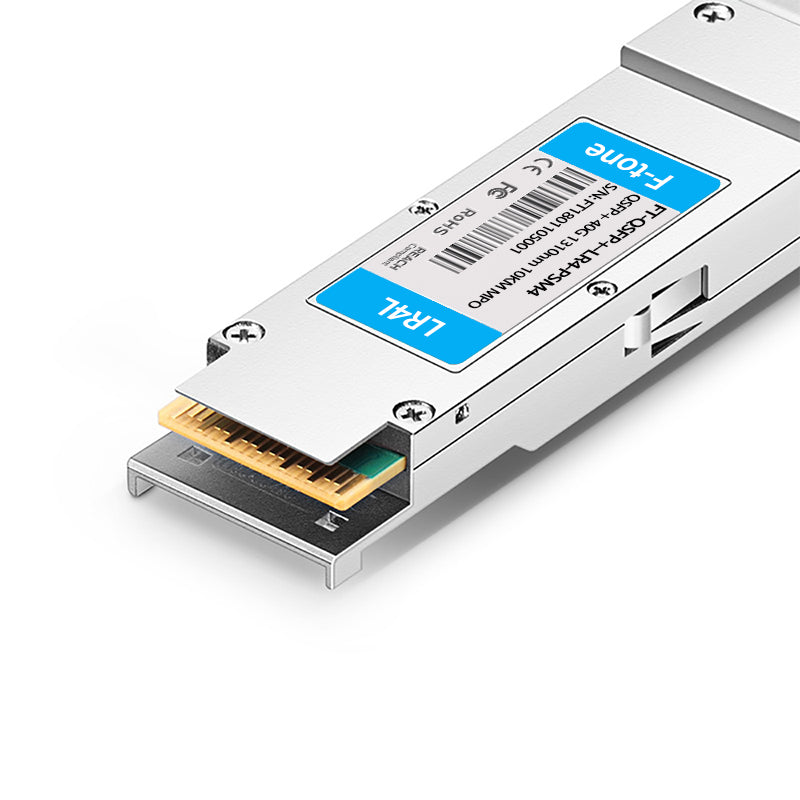

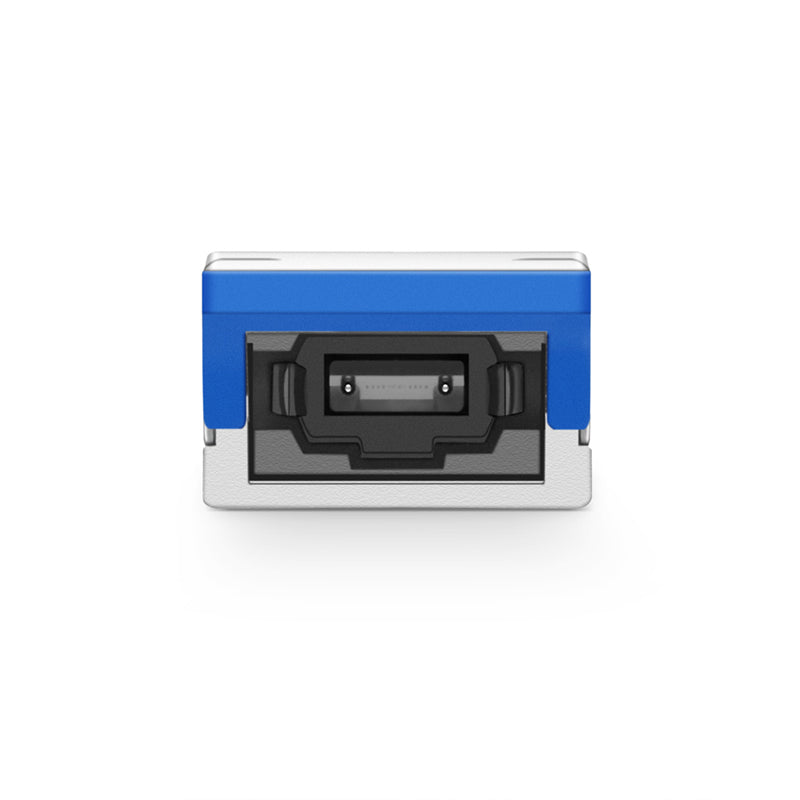

4x10GBASE-LR QSFP+ 1310nm 10km MTP/MPO DOM Fiber Transceiver Cisco QSFP-4X10G-LR-S

4x10GBASE-LR QSFP+ 1310nm 10km MTP/MPO DOM Fiber Transceiver Cisco QSFP-4X10G-LR-S

Afficher tous les détails

Part Number: QSFP-4X10G-LR-S-FM

Cisco Compatible QSFP-4X10G-LR-S 4x10GBASE-LR QSFP+ Transceiver Module (SMF, 1310nm, 10km, MTP/MPO-12, DOM)

Product Details

Cisco Genuine QSFP-4X10G-LR-S Vendor Name F-tone.COM
Form Type QSFP+ Max Data Rate 40Gbps
Wavelength 1310nm Max Cable Distance 10km
Interface MTP/MPO-12 Optical Components DFB CWDM
Cable Type SMF DOM Support Yes
CDR Support Yes Protocols 40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant
TX Power -7~2.3dBm Receiver Sensitivity <-11.5dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)

Datasheet

Part Number Distance Fibers Port
QSFP-SR4-40GFM 150m MMF MTP/MPO
QSFP-40G85-1MFM 150m/2km SMF/MMF LC
QSFP-40G-LR4-2FM 2km SMF LC
QSFP-40G-PLR4-2FM 2km SMF MTP/MPO
QSFP-LR4-40GFM 10km SMF LC
QSFP-PLR4-40GFM 10km SMF MTP/MPO
QSFP-ER4-40GFM 40km SMF LC

Quality Certification

Quality and standards are the foundation of F-tone.COM. We are dedicated to providing customers with outstanding, standards-compliant products and services. F-tone.COM has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Lifetime Warranty

All the fiber optic products in F-tone.COM are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.

Quality Control System:

Demonstration

Cisco Nexus 9300 Series (Switch/Module : N9K-C9396PX; Uplink Module : N9K-M12PQ )
Cisco ASR 9000 Series (Modular Line Card : A9K-MPA-1X40GE)

Platform Support

Cisco QSFP-4X10G-LR-S is supported on a wide range of Cisco equipment.

S5850-32S2Q Switch Cisco Nexus 3000 N3K-C3264Q Cisco NCS 1002-K9 Cisco Nexus 3000 N3K-C3164Q Cisco Nexus 3000 N3K-C3132Q-X F-tone S5850-48S6Q Switch Cisco Nexus 3000 N3K-C3064X Cisco Nexus 3000 N3K-C31128PQ-10GE
Cisco Nexus 3000 N3K-C3232CCisco Nexus 9000 N9K-X9536PQCisco Nexus 3000 N3K-3172PQCisco Nexus 9000 N9K-X9636PQCisco Nexus 9000 N9K-C9332PQCisco Nexus 9000 N9K-X9432PQF-tone S5850-48S2Q4C SwitchCisco Nexus 3000 N3K-3172TQ


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
