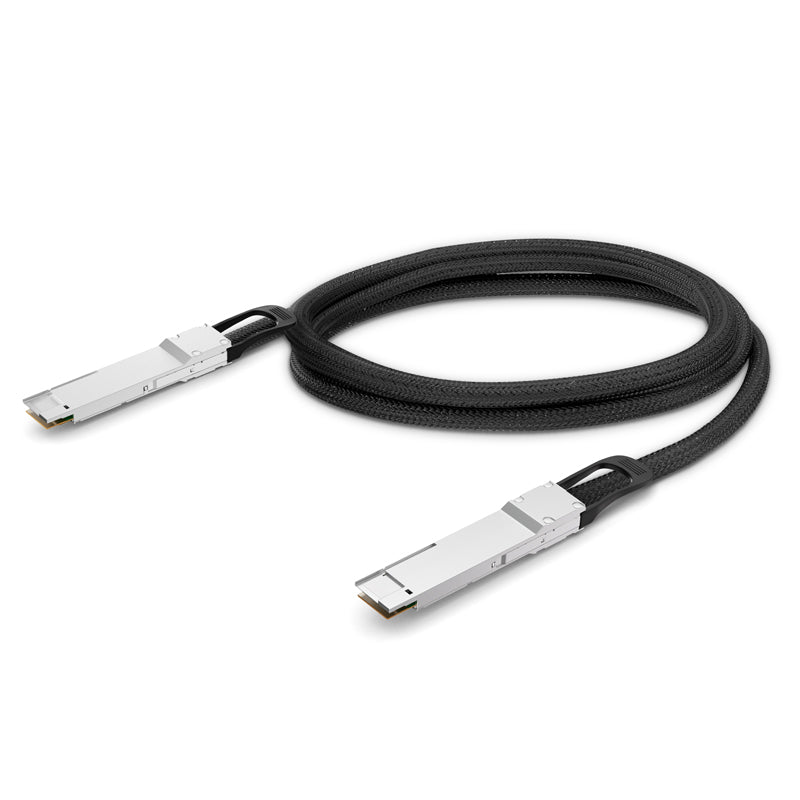

800G QSFP-DD to QSFP-DD Active Optical Cable 10m (33ft)

800G QSFP-DD to QSFP-DD Active Optical Cable 10m (33ft)

Afficher tous les détails

Part Number: QSFP-DD-800G-AOC-10FM

800G QSFP-DD AOC (QSFP-DD to QSFP-DD Active Optical Cable OM3 MMF 10-meter)

F-tone QSFP-DD AOC is designed for use in 800G Ethernet links over 30m. Each of the AOC modules has 8 independent electrical input/output channels operating at 106.25Gbps per channel. Each of the AOC modules consists of two transmitter/receiver units. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with two 4-channel drivers, and 8 externally modulated lasers. It is compliant with the 800GAUI-8 interface and compliant with QSFP-DD MSA.

Product Details

F-tone P/N QSFP-DD-800G-AOC-10M Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 850Gb/s
Wavelength 850nm Cable Length 10m (33ft)
Modulation Format PAM4 Host Required FEC
Number of Lanes 53.125 ㊣ 100ppm Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70～C (32 to 158～F) Maximum Power <15.0w each="">
Protocols Compliant QSFP-DD MSA, CMIS 5.2 Application Ethernet for 800GBASE-SR8


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
