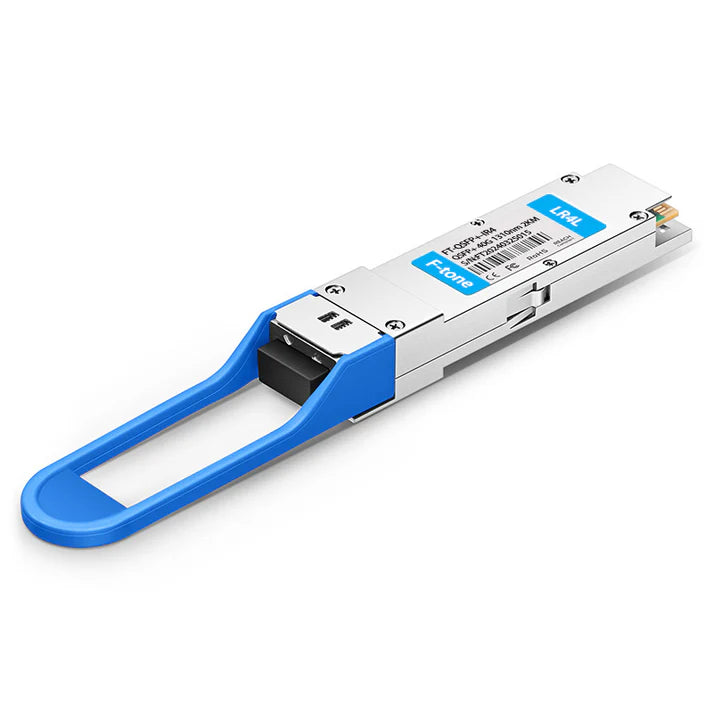

40GBASE-LR4L QSFP+ 1310nm 2km LC Transceiver for SMF

40GBASE-LR4L QSFP+ 1310nm 2km LC Transceiver for SMF

Afficher tous les détails

Part Number: QSFP-IR4-40G

Cisco WSP-Q40GLR4L Compatible 40GBASE-LR4L QSFP+ Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 2km, LC, DOM)


The Cisco WSP-Q40GLR4L Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Product Specifications
Cisco Compatible WSP-Q40GLR4L Vendor Name F-tone
Form Factor QSFP+ Max Data Rate 41.2Gbps (4×10.3Gbps)
Wavelength 1310nm Max Cable Distance 2km
Connector LC Duplex Cable Type SMF
Transimitter Type DFB CWDM Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -7~2.3dBm Receiver Sensitivity <-11.5dBm
Powerbudget 4.5dB Receiver Overload 2.3dBm
Power Consumption <3.5W Extinction Ratio >3.5dB
Transmit and Dispersion Penalty 2.6dB Modulation Format NRZ
Packaging Technology BOX Packaging Host FEC Supported
Bit Error Ratio (BER) 1E-12 Protocols 40G Ethernet, Infiniband FibreChannel, SATA/SAS3, MSA Compliant
Application 40GBASE-LR4 40G Ethernet, Data Center Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
QSFP-SR4-40GFM 150m MMF MTP/MPO
QSFP-40G85-1MFM 150m/2km SMF/MMF LC
QSFP-40G-LR4-2FM 2km SMF LC
QSFP-40G-PLR4-2FM 2km SMF MTP/MPO
QSFP-LR4-40GFM 10km SMF LC
QSFP-PLR4-40GFM 10km SMF MTP/MPO
QSFP-ER4-40GFM 40km SMF LC

Product Spotlights

High Performance and Reliability

Low power consumption＜3.5W, saving power

Stainless steel material, anti-corrosion, and salt spray resistance

DDM for real-time monitoring supply volt, temp, bias current, and TX & RX power

Wide Application

Fully compatible with almost all Cisco devices

High-speed interconnection between switches, routers, servers, etc.

Suitable for large data centers, campus, metropolitan area network, and other network environments

Protocols and Safety Standards

Class 1 laser safety compliant

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

Compliant with 40G Ethernet, Infiniband FibreChannel, SATA/SAS3, QSFP+ MSA

Quality Testing Program

Take a look at our optics test program and see what truly sets us apart.

Quality Certifications
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
