Part Number: QSFP28-BLR4-100G-FM

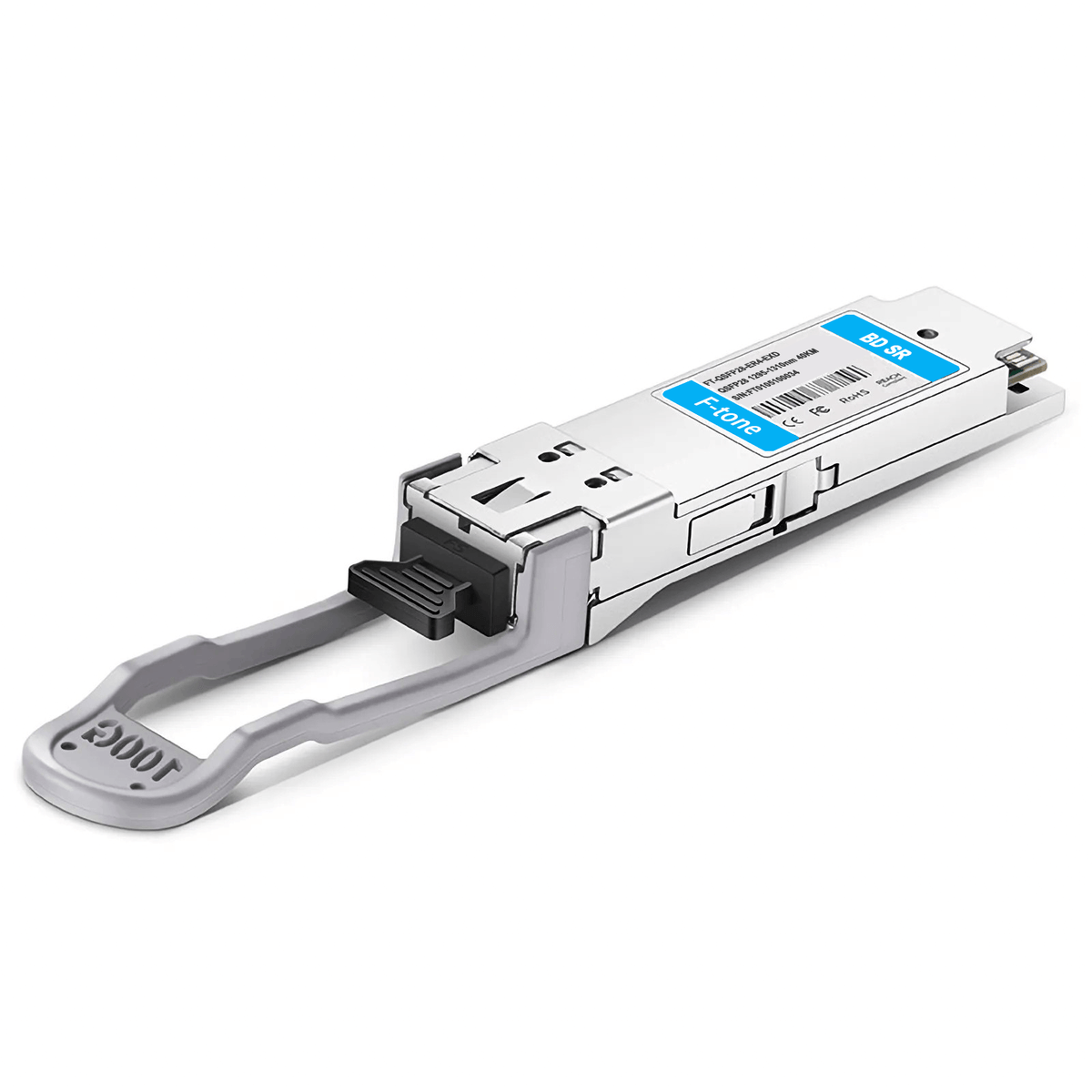

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (SMF, 1310nm, 10km, LC, DOM) qsfp28-blr4-100g

Cisco Compatible QSFP-100G-LR4-S Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.125Gbps
Wavelength 1310nm* Max Cable Distance 10km@SMF
Connector LC duplex Media SMF
Transmitter Type LAN WDM DML Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4.3~4.5dBm Receiver Sensitivity <-10.6dBm
Power Consumption 3.5W Extinction Ratio 4dB
Modulation Format NRZ CDR TX and RX
Transmit and Dispersion Penalty 2.2dB Powerbudget 8.5dB
Packaging Technology BOX Packaging FEC Function** Supported
Protocols IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant Application 100GBASE Ethernet, Telecom, 5G Wireless Network

Please Note:
* 1310nm wavelength range include L0 1295.56nm(1294.53-1296.59nm), L1 1300.05nm(1299.02-1301.09nm), L2 1304.58nm(1303.54-1305.63nm), L3 1309.14nm(1308.09-1310.09nm)
** It does not employ the use of FEC, complied with the IEEE 100GBASE-LR4 specification.

Product Tree

Data Center & Telecom Direct Connection Solution for 100G Gigabit Ethernet Switches, supporting service provider applications

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC
