100GBASE-CWDM4 QSFP28 1310nm 2km DOM Optical Transceiver Cisco QSFP-100G-CWDM4-S

100GBASE-CWDM4 QSFP28 1310nm 2km DOM Optical Transceiver Cisco QSFP-100G-CWDM4-S

Afficher tous les détails

Part Number: QSFP28-IR4-100GFM

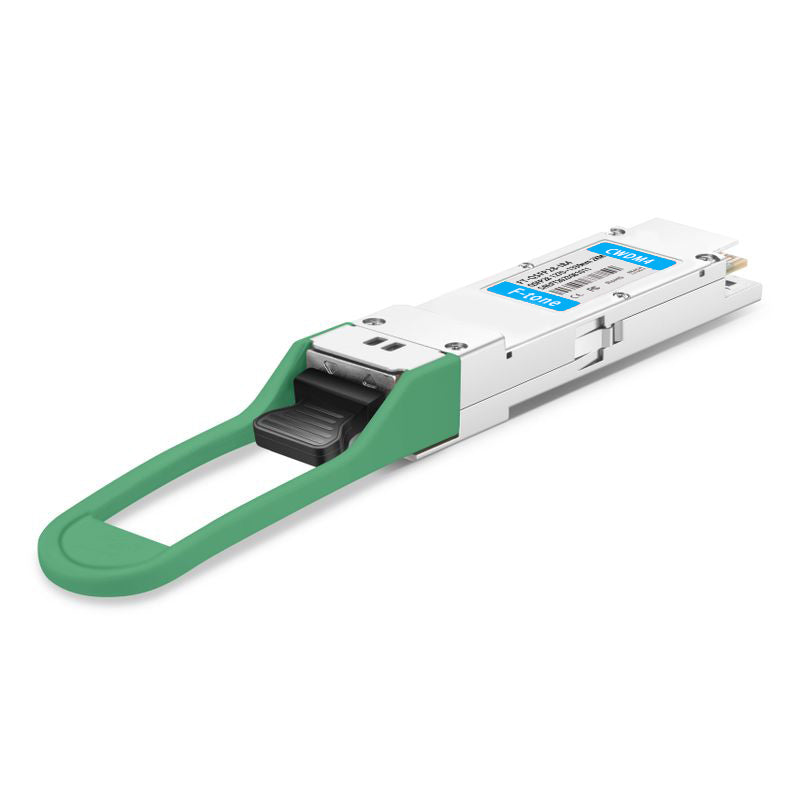

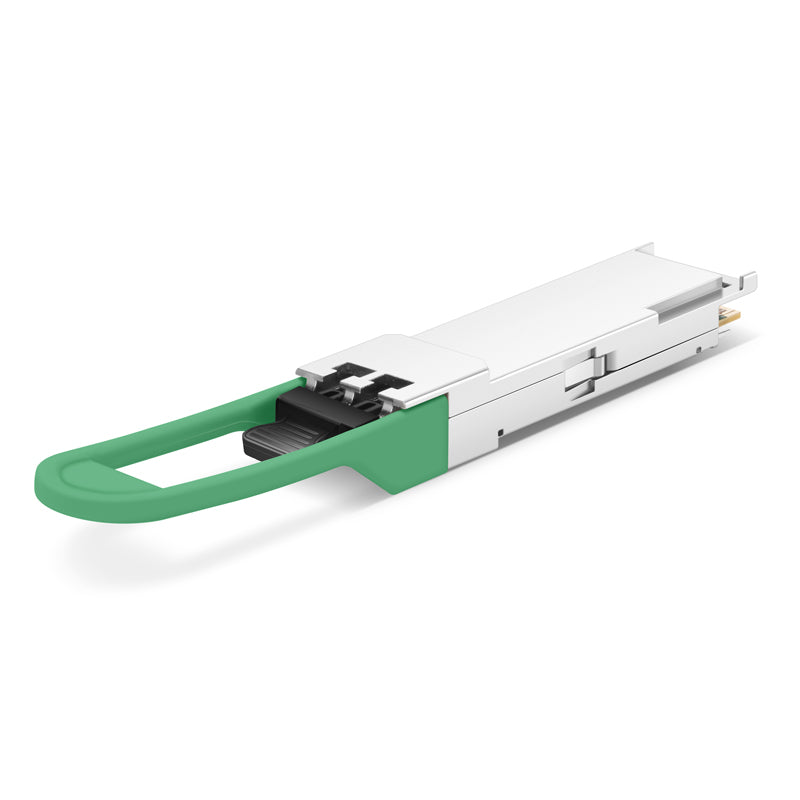

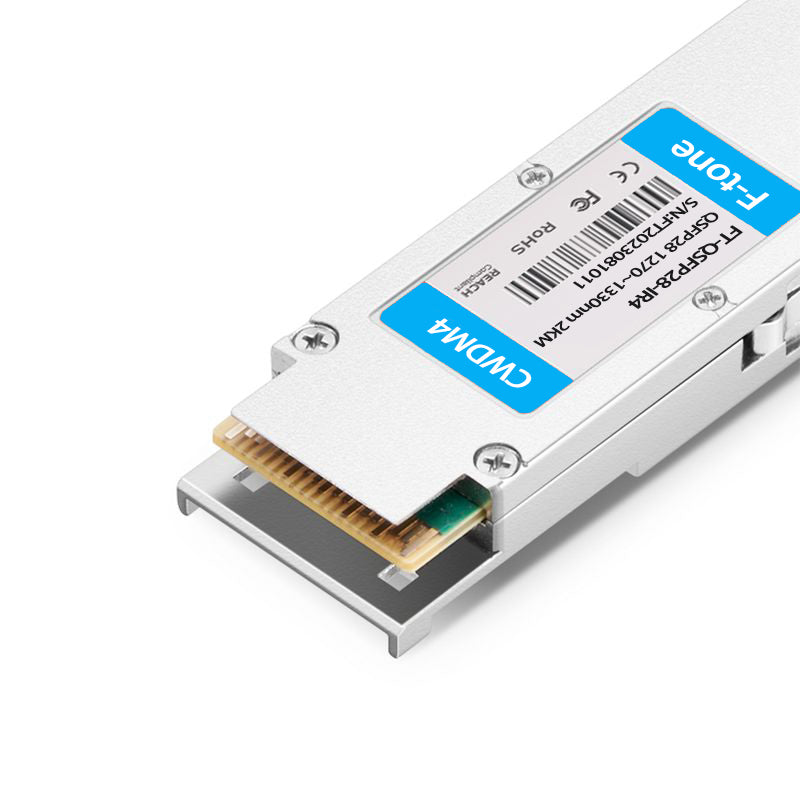

Cisco QSFP-100G-CWDM4-S Compatible 100GBASE-CWDM4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)

Cisco Compatible QSFP-100G-CWDM4-S Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.1 Gbps
Wavelength 1271nm, 1291nm, 1311nm and 1331nm Max Cable Distance 2km@SMF

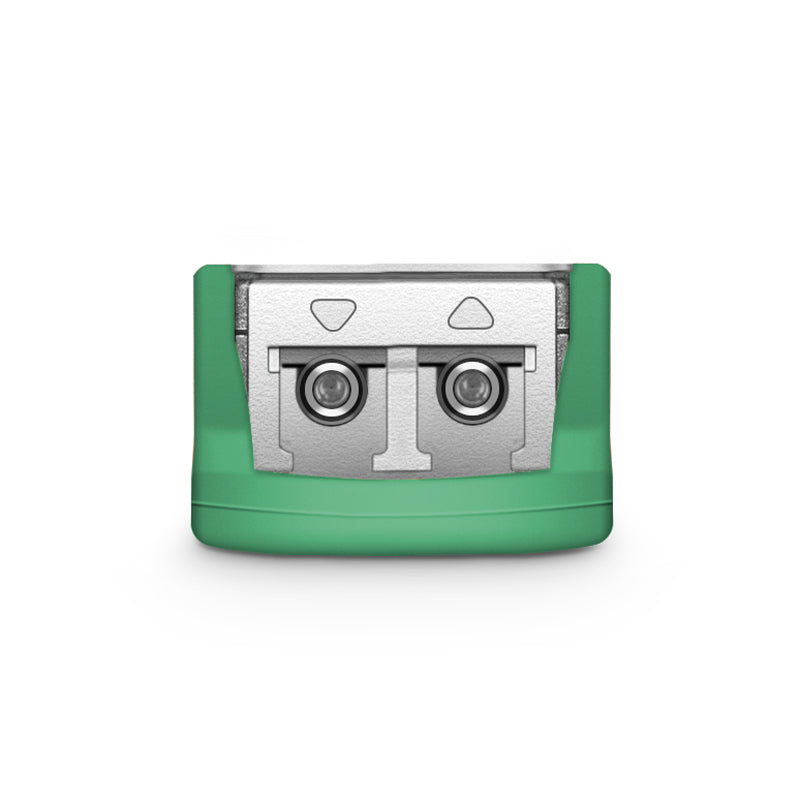

Connector LC duplex Media SMF
Transmitter Type DML CWDM Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -6.5~2.5dBm Receiver Sensitivity <-10dBm
Power Consumption 3.5W Extinction Ratio 3.5dB
Modulation Format NRZ CDR TX and RX
Transmit and Dispersion Penalty 3.0dB Powerbudget 5dB
Packaging Technology COB (chip on board) Packaging FEC Function* Supported
Protocols QSFP28 MSA Compliant Application 100GBASE Ethernet, Data Center

Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.

Product Tree

Data Center Interconnect Solution for 100G Gigabit Ethernet Switches with FHD Fiber Adapter Panel

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Platform Support

Cisco QSFP-100G-CWDM4-S is supported on a wide range of Cisco equipment.
Cisco Catalyst C9500-24Y4C Cisco Nexus 9300-EX Series 93180YC-EX Cisco NCS-5501Cisco Nexus N9K-C92160YC-X


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
