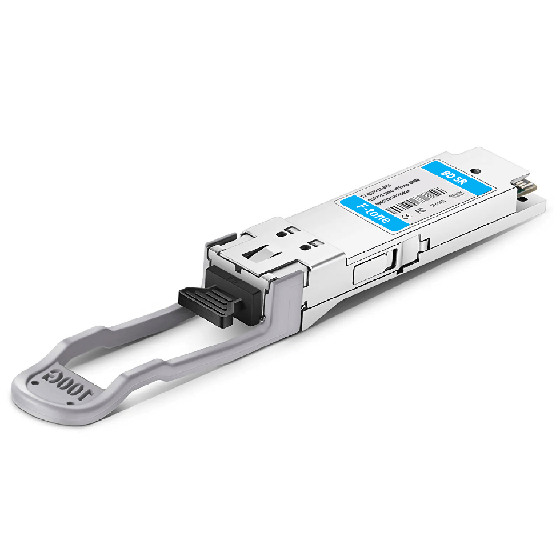

QSFP28 100GBASE-PSM4 1310nm 500m Transceiver

QSFP28 100GBASE-PSM4 1310nm 500m Transceiver

Afficher tous les détails

Part Number: QSFP28-PIR4-100G-XX

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)


The Cisco QSFP-100G-PSM4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
Product Specification
Cisco Compatible QSFP-100G-PSM4-S Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm Max Cable Distance 500m
Connector MTP/MPO-12 Cable Type SMF
Transmitter Type 4x DFB Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -9.4~2dBm Receiver Sensitivity <-12.66dBm
Powerbudget 3.2dB Receiver Overload 2dBm
Power Consumption ≤3.5W Extinction Ratio >3.5dB
Modulation Format NRZ CDR (Clock and Data Recovery) TX & RX Built-in CDR
Packaging Technology COB (chip on board) Packaging Host FEC Supported
EMC (Electro Magnetic Compatibility) Supported Bit Error Ratio (BER) 1E-12
Protocols QSFP28 MSA Compliant Transmit and Dispersion Penalty 2.9dB
Application 100GBASE Ethernet, Data Center Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Product Spotlights

High Performance and Reliability

≤3.5W low power consumption

Dual CDR (TX and RX)

Stainless steel material, anti-corrosion, and salt spray resistance

Wide Application

Fully compatible with almost all Cisco devices

Widely used on 100G switches, routers, servers, NICs and other transmission equipment

Suitable for data center, high-performance computing networks, etc.

Protocols and Safety Standards

IEC60825-1 Class 1 laser safety compliant

UL 94 V-0 Flammability Rating

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

Compliant with QSFP28 MSA, IEEE 802.3bm 100GBASE-PSM4 standard

Quality Testing Program

Take a look at our optics test program and see what truly sets us apart.

Quality Certifications
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
