100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Fiber Transceiver

100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Fiber Transceiver

Afficher tous les détails

Part Number: QSFP28-SR4-100G

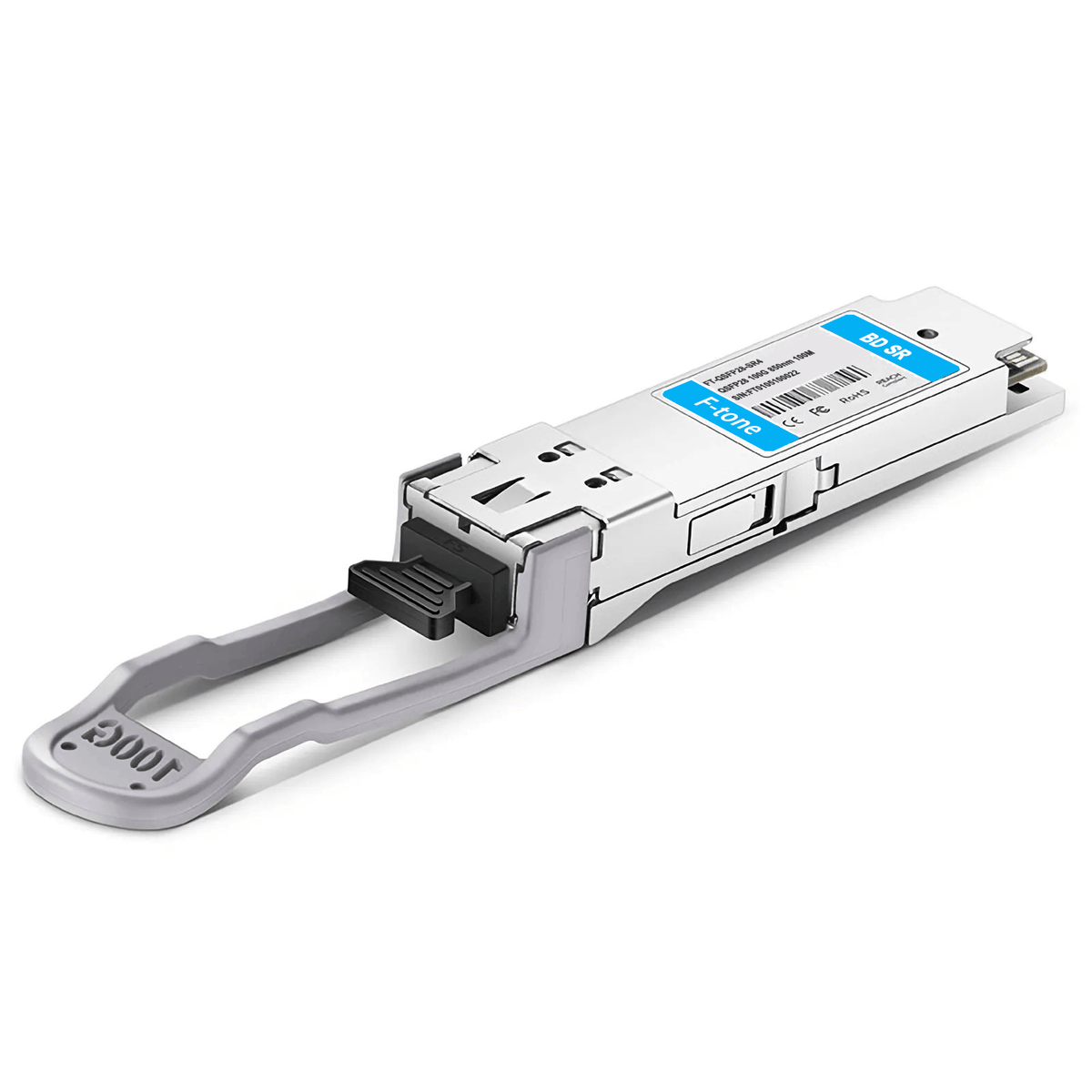

100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Fiber Transceiver Module

The 100GBASE-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Spotlights

  • High Quality MACOM Chip
  • VCSEL+PIN, Built-in Dual CDR
  • ≤1.8W (Typical) Low Power Consumption
  • Fully Compatible with 200+ Vendors
  • Hot Pluggable QSFP28 MSA Compliant

Description

Part Number QSFP28-SR4-100G Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12 Cable Type MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Powerbudget 1.9dB Receiver Overload 2.4dBm
Typical Power Consumption ≤1.8W Extinction Ratio ＞3dB
Modulation Format NRZ CDR (Clock and Data Recovery) TX & RX Built-in CDR
Transmit and Dispersion Penalty 5dB Host FEC Supported
Packaging Technology COB (chip on board) Packaging EMC (Electromagnetic Compatibility) Supported
Protocols IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI MTBF 12,800,000 Hours
Application 100GBASE Ethernet, Data Center, Campus Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.



Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone.COM generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.
ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
