Part Number: QSFP28-SR4-100GFM-C

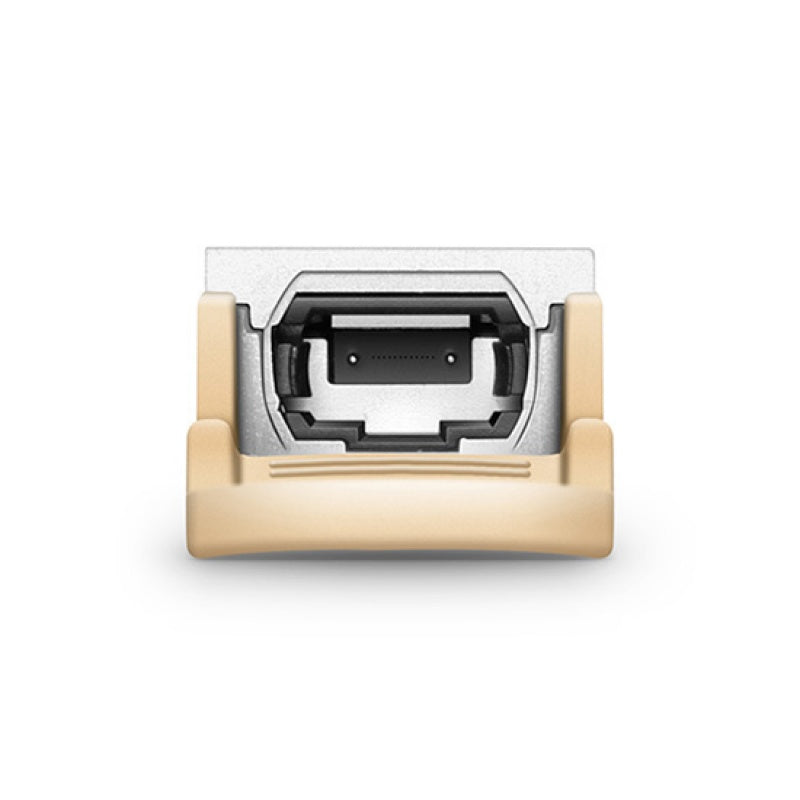

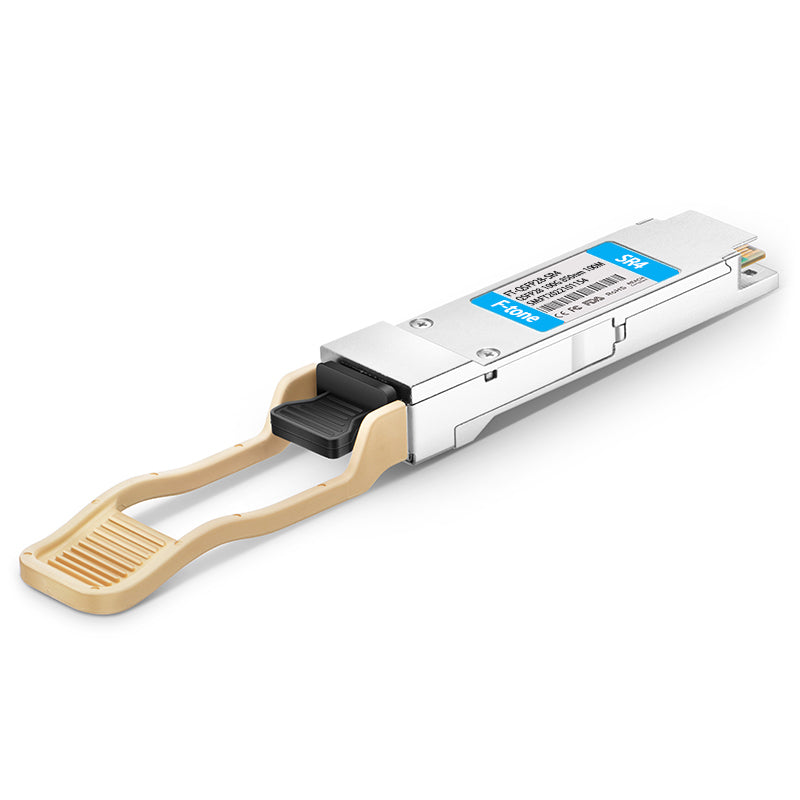

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (MMF, 850nm, 100m, MTP/MPO, DOM)

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (MMF, 850nm, 100m, MTP/MPO, DOM)


The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard.

Specifications:

Cisco Compatible QSFP-100G-SR4-S Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.1 Gbps
Wavelength 850nm Max Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12 Media MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.4~2.4dBm Receiver Sensitivity <-10.3dBm
Power Consumption 3.5W Extinction Ratio 3dB
Modulation Format NRZ CDR TX and RX
Transmit and Dispersion Penalty 5dB Powerbudget 1.9dB
Packaging Technology COB (chip on board) Packaging FEC Function* Supported
Protocols QSFP28 MSA Compliant Application 100GBASE Ethernet, Data Center

Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.

Product Tree

Data Center Interconnect Solution for 100G Gigabit Ethernet Switches with FAPs and Fiber Enclosures

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Network Connectivity

Data Center Interconnect Solution for 100G Gigabit Ethernet Switches with FAPs and Fiber Enclosures

Product Highlights
Reliable Connectivity Within Data Center

Featured with high reliability, low insertion loss and better signal quality, the 100GBASE-SR4 QSFP28 transceiver is widely applied for 100G Ethernet ToR/Leaf to Spine links reach up to 100m.

Comprehensive Performance Test

100G transceivers are certified and tested through the automatic quality control system, which can test and ensure the performance of transceivers in actual working environment to avoid quality problems such as transmission error, link flapping, and so on.

Test Bed

Cisco Catalyst C9500-24Y4C

Platform Support

Cisco QSFP-100G-SR4-S is supported on a wide range of Cisco equipment.

Cisco NCS-5501 Cisco Nexus N9K-C92160YC-X Cisco Nexus 9000 Series (Modular 9500) N9K-X9432C-S Cisco Nexus 3000 Series N3K-C3232C
Cisco ONS Transport Platform NCS-1002-K9Cisco Nexus 9000 Series (Fixed 9200) N9K-C92160YC-XCisco Nexus 9300-EX Series 93180YC-EXCisco Catalyst C9500-24Y4C

Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone.COM generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.
ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
