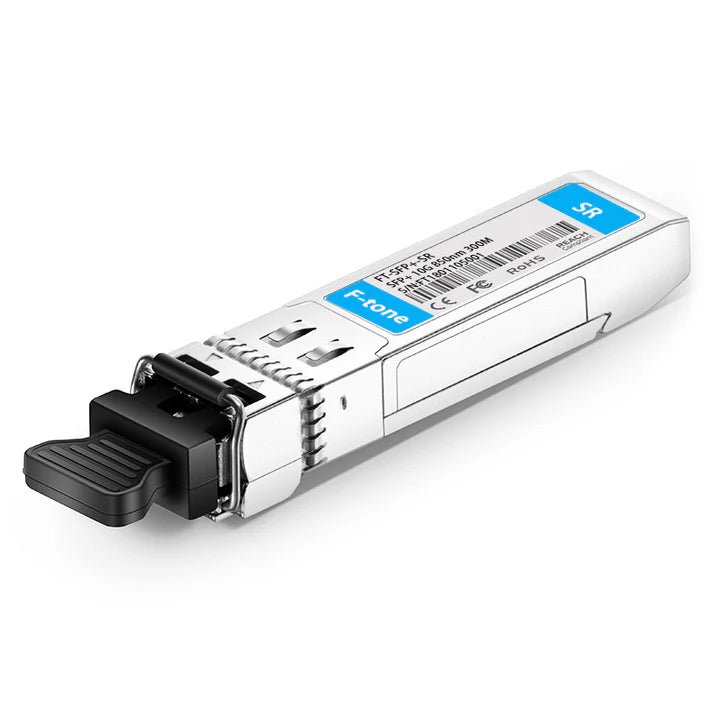

Source Photonics SPP-DR-SR-CDFA Compatible 10GBASE-SR SFP+ 850nm 300m EXT Transceiver

Part Number: SFP-10G85-3MA-SP

10GBASE-SR SFP+ 850nm 300m MMF EXT Transceiver Source Photonics SPP-DR-SR-CDFA Compatible

The SFP-10G85-3MA series multi-mode transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. This transceiver offers the same function with Source Photonics SPP-DR-SR-CDFA and it is fully compatible with Source Photonics devices. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Key Features

• Operating data rate up to 10.3Gbps
• 850nm VCSEL Transmitter
• Average Output Power:-6~-1dBm
• Receiver Sensitivity:-11.1dBm
• Distance up to 300m @50 /125 um MMF
• Single 3.3V Power supply and TTL Logic Interface
• Duplex LC Connector Interface, Hot Pluggable
• Compliant with MSA SFP+ Specification SFF-8431
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• Power Dissipation < 1.0W
• Dispersion tolerance up to 40ps/nm over G.651
• Built-in Digital Diagnostic Function
• Extended temperature range : -5°C to +70°C

Applications

• 10GBASE-SW at 9.953Gbps
• 10GBASE-SR at 10.3125Gbps
• OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s
• CPRI rates 9.830 Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s
• Other Optical Link

Ordering Information

Notes

• F-tone also provide other 10G SFP+ transceivers with different transmission distances, like 100km.

Packaging

• Antistatic bag
• Packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

• OEM/ODM order is available
• We can supply SFP-10G85-3MA according to your requirements, and design SFP-10G85-3MA label and packaging for your company.We welcome any inquiry for customized SFP+ optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying 10G SFP+ From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of 10G SFP+ transceivers. All of our 10G SFP+ transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G SFP+ transceivers to work in your system and all of our 10G SFP+ transceivers come with a lifetime advance replacement warranty. If you have questions about 10G SFP+ optics, please feel free to contact us at [email protected].

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
