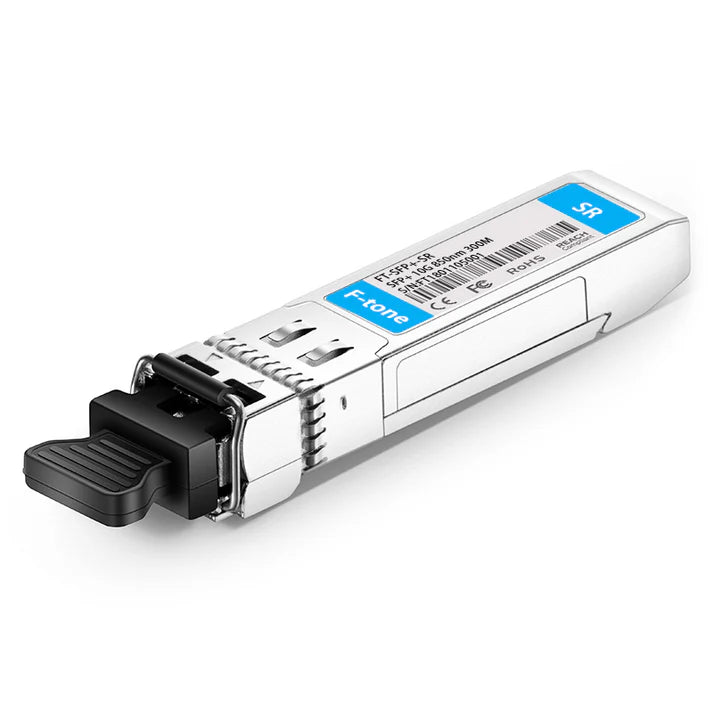

D-Link DEM-431XT-DD Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver

Part Number: SFP-10G85-3MD

10GBASE-SR SFP+ 850nm 300m EXT Transceiver D-Link DEM-431XT-DD Compatible

The SFP-10G85-3MD series multi-mode transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. These D-Link SFP-10G85-3MD modules are designed for multi-mode fiber and operates at a nominal wavelength of 850nm.

Key Features

• 10GBASE-SR SFP+ 850nm 300m optical transceiver
• High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
• Factory New
• Fully compatible with D-Link
• Operating data rate up to 10.3Gbps
• 850nm VCSEL Transmitter
• Transfer distance
  Up to 26m @62.5μm MMF, 160 MHz-km
  Up to 33m @62.5μm MMF, OM1 200 MHz-km
  Up to 66m @50μm MMF, 400 MHz-km
  Up to 82m @50μm MMF, OM2 500 MHz-km
  Up to 300m @50μm MMF, OM3 2000 MHz-km
• Operating Temperature: 0°C ~ 70°C
• Single 3. 3V Power supply and TTL Logic Interface
• Duplex LC Connector Interface, Hot Pluggable
• All-metal housing for superior EMI performance
• Compliant with MSA SFP+ Specification SFF-8431

OEM and ODM

F-tone designs, develops, manufactures and markets a diverse portfolio of high-performance, cost- competitive fiber optic communication products for all applications. We are mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

• OEM/ODM order is available
• We can supply SFP-10G85-3MD according to your requirements, and design SFP-10G85-3MD label and packaging for your company.
• We welcome any inquiry for customized SFP+ optical transceiver. Our primary corporate capabilities include software engineering, systems engineering, network engineering, systems support, program management, and information assurance engineering and analysis.

Labeling

• F-tone Labels as default
• Generic Labels
• Specific Labels as Request
• No Labels

Packaging

• antistatic bag
• packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

Shipment

• International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
• Shipments are usually dispatched within 2 working days after received payment

Save Cost By Buying SFP-10G85-3MD From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of SFP-10G85-3MD transceivers. All of our SFP-10G85-3MD transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee SFP-10G85-3MD transceivers to work in your system and all of our SFP-10G85-3MD transceivers come with a lifetime advance replacement warranty.
If you have questions about SFP-10G85-3MD optics, please feel free to contact us at [email protected].

Ordering Information

Prices and specifications are subject to change without notice. F-tone Transceiver is not responsible for typographical or photographic errors.

Specification

• Form Factor: SFP+
• Device Type: Transceiver module
• Interface (Bus) Type: Plug-in module
• Connectivity Technology: Wired
• Application: 10GBASE-SR
• Data Transfer Rate: 10Gbps
• Wavelength: 850nm
• Max Distance: 300m
• Fiber Type: MMF
• Connector: Duplex LC
• DDM (Digital Diagnostics Monitoring)： with DDM

Applications

• 10GBASE-SR at 9.953Gbps
• 10GBASE-SW at 10.3125Gbps
• 1000 Base-SX Ethernet
• 8XFC at 8.5Gbps
• 4XFC at 4.25Gpbs
• 850nm VCSEL Transmitter
• 2XFC at 2.125Gpbs
• 1xFC at 1.0625Gbps
• Duplex LC Connector Interface, Hot Pluggable
• Other Optical Link

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
