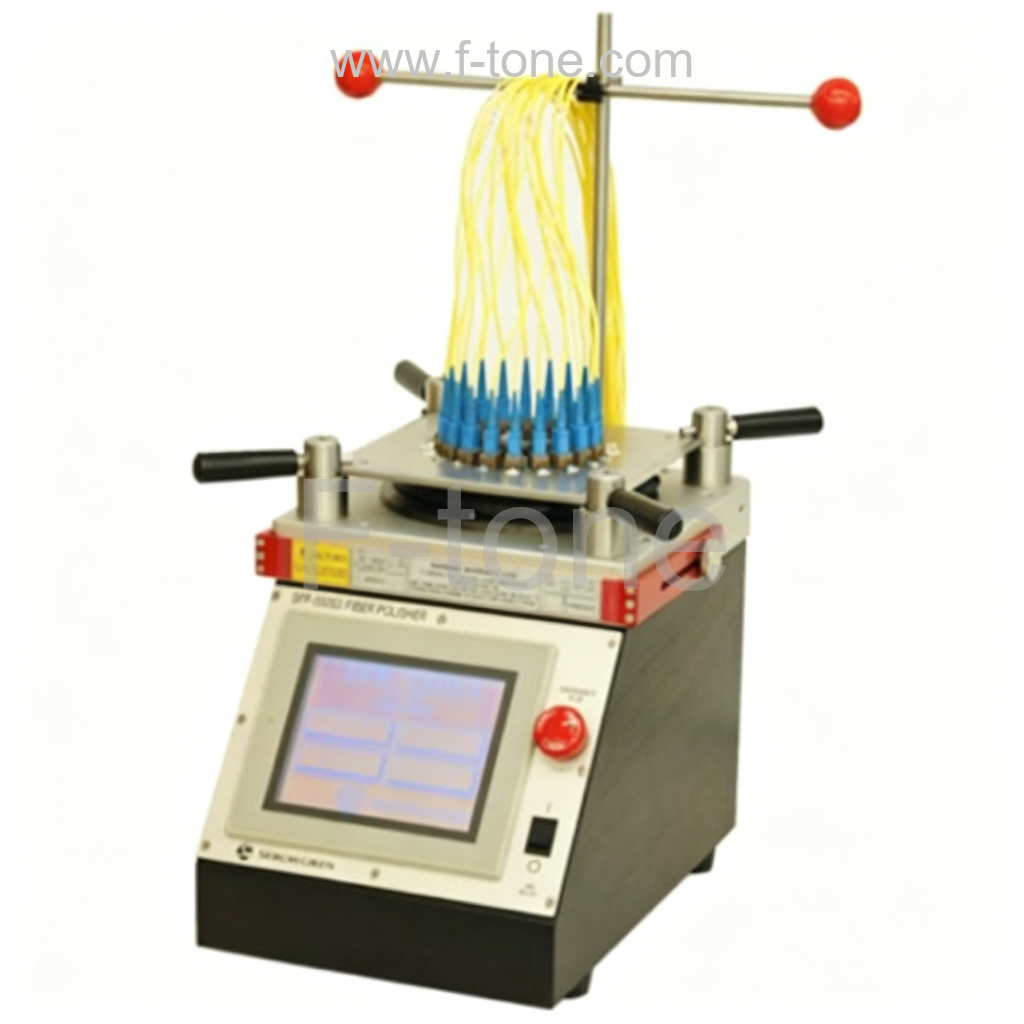

Seikoh Giken SFP-550 Fiber Polishing Machine Programmable

Seikoh Giken SFP-550 Fiber Polishing Machine Programmable

Afficher tous les détails

Part Number: SG-SFP-550

Seikoh Giken SFP-550 Fiber Polishing Machine Programmable EZ-Maintenance & High Duty Cycle

The SFP-550S3 polisher series is Seikoh Giken's top of the line mass production model developed under our recently introduced "Ez-Maintenance and High Duty Cycle" concept. Compared to the previous SFP-550 series, there is dramatic improvement in ease of maintenance and machine durability for mass production work zones. SG estimates maintenance cost reduction of nearly 90% (per our internal test) can be achieved compared to older generation polishers.

It features a full function, programmable LCD touch panel for installation and modification of various polishing processes allowing unlimited customization of process detailed parameters. Additionally, it features a slow start function, user controlled, programmable turntable speed and voltage-free power input for world-wide versatile installation.

The most notable feature is our unique auto polishing time distribution which allows the polishing time to gradually change after each use of the polishing film. It provides stable grinding force for uniform endface geometry and extends film service life. Developed for use in high volume mass-production environments where critical geometry performance is required.

Polishing holders, films and pads are compatible among all 550 (120A) series

Application Mass production
Pressure Source 4 coil springs
Dimensions W260~D320~H295mm
Weight 18.5kg
Input Voltage 100-240 VAC, 50/60Hz
Polishing Capacity(maximum) 48
# of max programmable process 12
# of max steps in one process 8
Speed of Turntable Rotation : 0.7-2rpm
Revolution : 70 - 200rpm
Connector Type φ2.5mm PC, APC
φ1.25mm PC, APC
MT, mini-MT, Fiber Array


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
