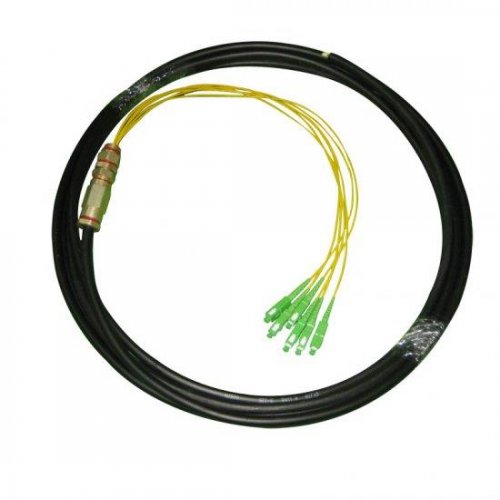

4-Fiber Single-mode 9/125 FC/SC/ST/LC Waterproof Fiber Pigtail

4-Fiber Single-mode 9/125 FC/SC/ST/LC Waterproof Fiber Pigtail

Afficher tous les détails

Part Number: SM-4F-WP-FM

4-Fiber Single-mode 9/125 FC/SC/ST/LC Waterproof Fiber Pigtail

Fiber optic waterproof pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

Key Features

  • 2, 4, 6, 8 and 12 cords optional
  • Good reliability and stability
  • Excellent water-resistance performance
  • Applicable connector: FC, SC, ST, LC
  • Waterproof, rigid and anti-corrosive copper connector
  • Simple installation

Applications

  • Optic fiber communications systems
  • Optical CATV & LAN
  • Telecommunication networks
  • Optical communication networks
  • Connecting with backbone optical cable and RX

Specifications

Parameter UPC,SM APC, SM
Return Loss(dB) ≥50 ≥60
Insertion loss(dB) ≤0.3 ≤0.3
Repeatability 1000 times(dB) ≤0.2
Exchange(dB) ≤0.2
Working Temperature(℃) -40 to +80

Custom Information

F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
