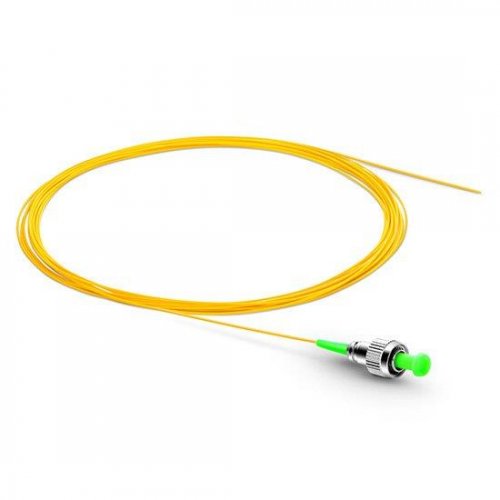

Customized Simplex FC/APC SingleMode Fiber Optic Pigtail

Customized Simplex FC/APC SingleMode Fiber Optic Pigtail

Afficher tous les détails

Part Number: SM-FCA-FP-XX-X

FC/APC SingleMode Fiber Optic Pigtail Customized Simplex FC Pigtails

Fiber optic pigtails link the fiber optic cable with fiber optic equipment by splicing with other fiber cores. F-tone.COM's simplex single-mode fiber optic pigtails provide a fast way to make communication devices in the field. Buy FC Pigtail, Buy Fiber Pigtail, 12 Fiber Pigtail at F-tone.

They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Connector A FC Connector B Unterminated
Fiber Category Single-mode (OS2) Fiber Count Simplex
Polish APC Wavelength 1310nm and 1550nm
Insertion loss 0.3dB Interchangeability 0.2dB
Return loss 50dB Vibration 0.2dB
Operating temperature -40~75C Storage temperature -45~85C

Key Features and Applications

Low insertion loss, Low back reflection loss
Flexible and easy to strip fibre buffering Identifiable fibre buffer colours under all lighting conditions
Reduces installation time
Avoids incorrect patching by possible fiber flipping
CATV, metro test equipement
Telecomunication networks
Local area networks(LAN)
Wide area networks(WAN) Premise installations

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

OEM Service

F-tone.COM supports customized service, such as fiber type, fiber connector, jacket material, pigtail length for simplex packes fiber optic pigtail. Please feel free to contact [email protected].

Packaging & Labeling


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
