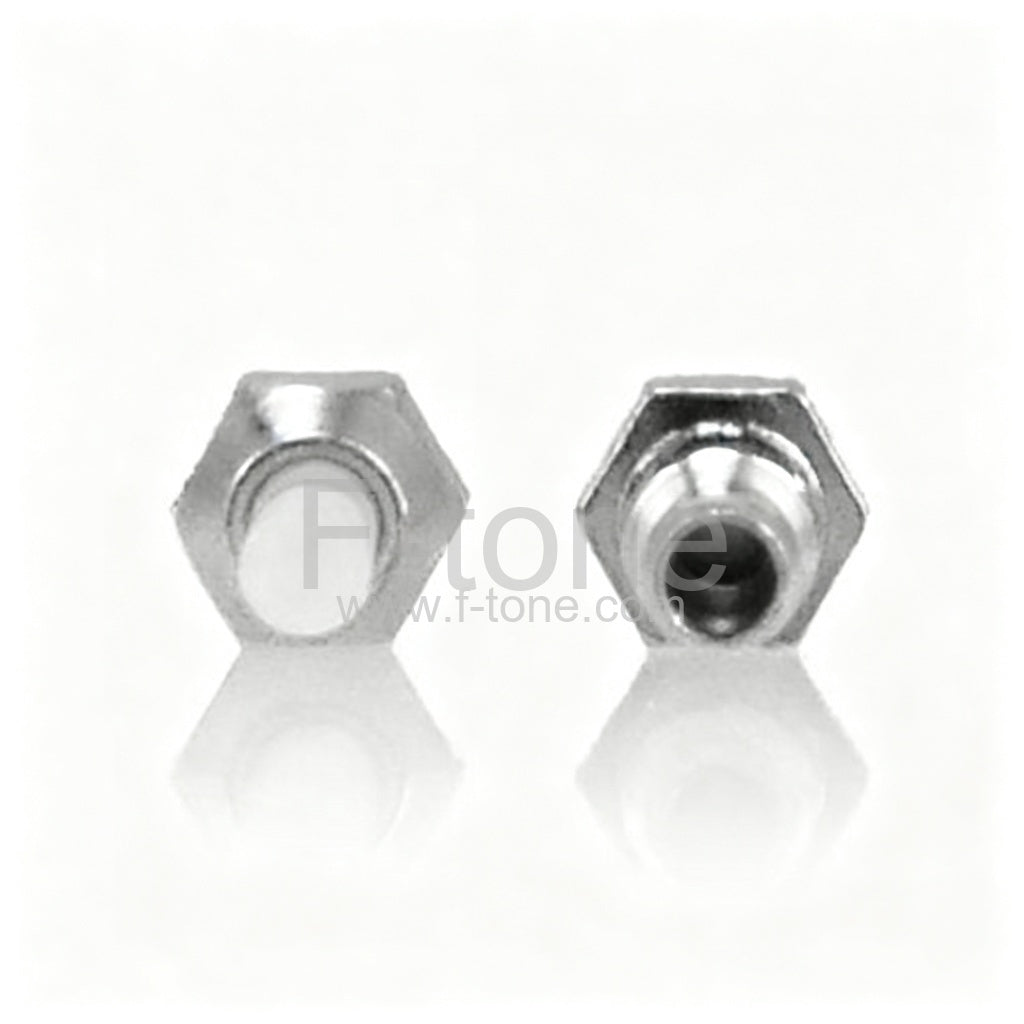

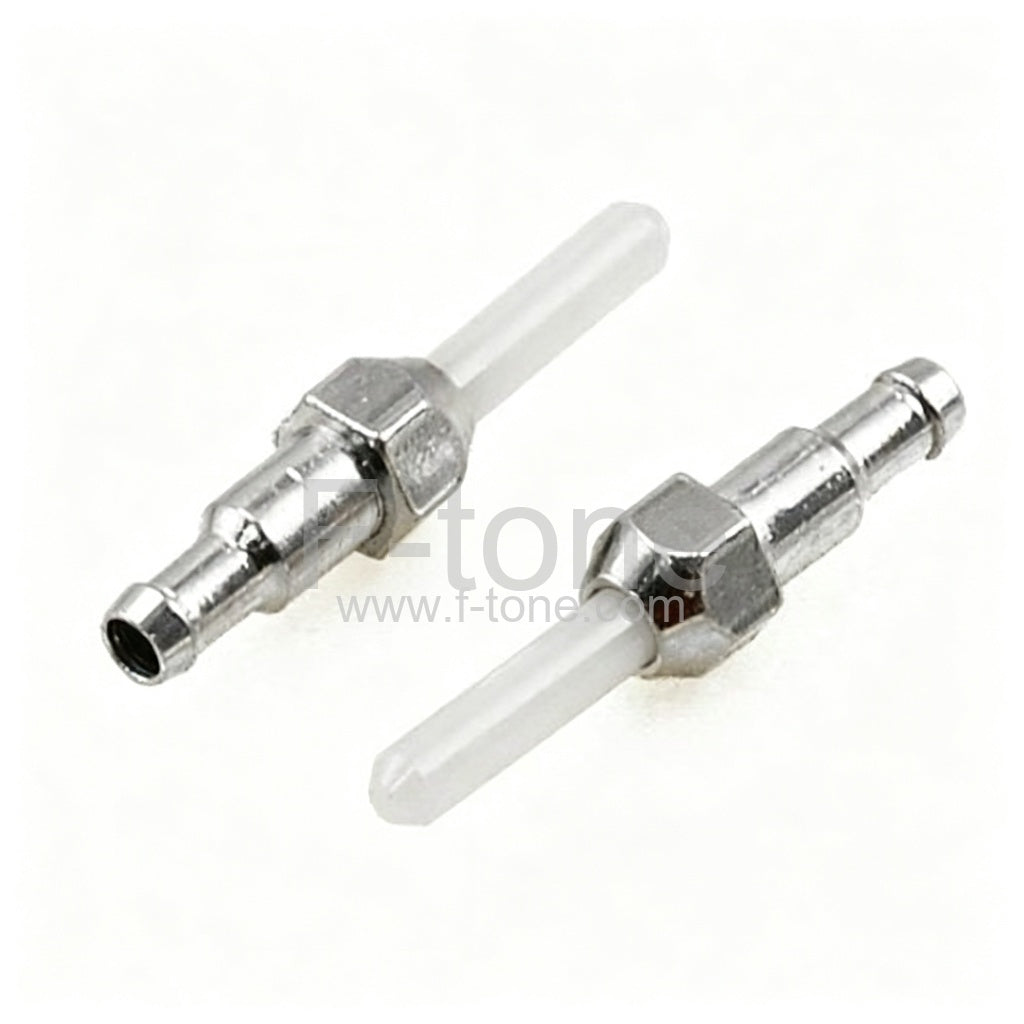

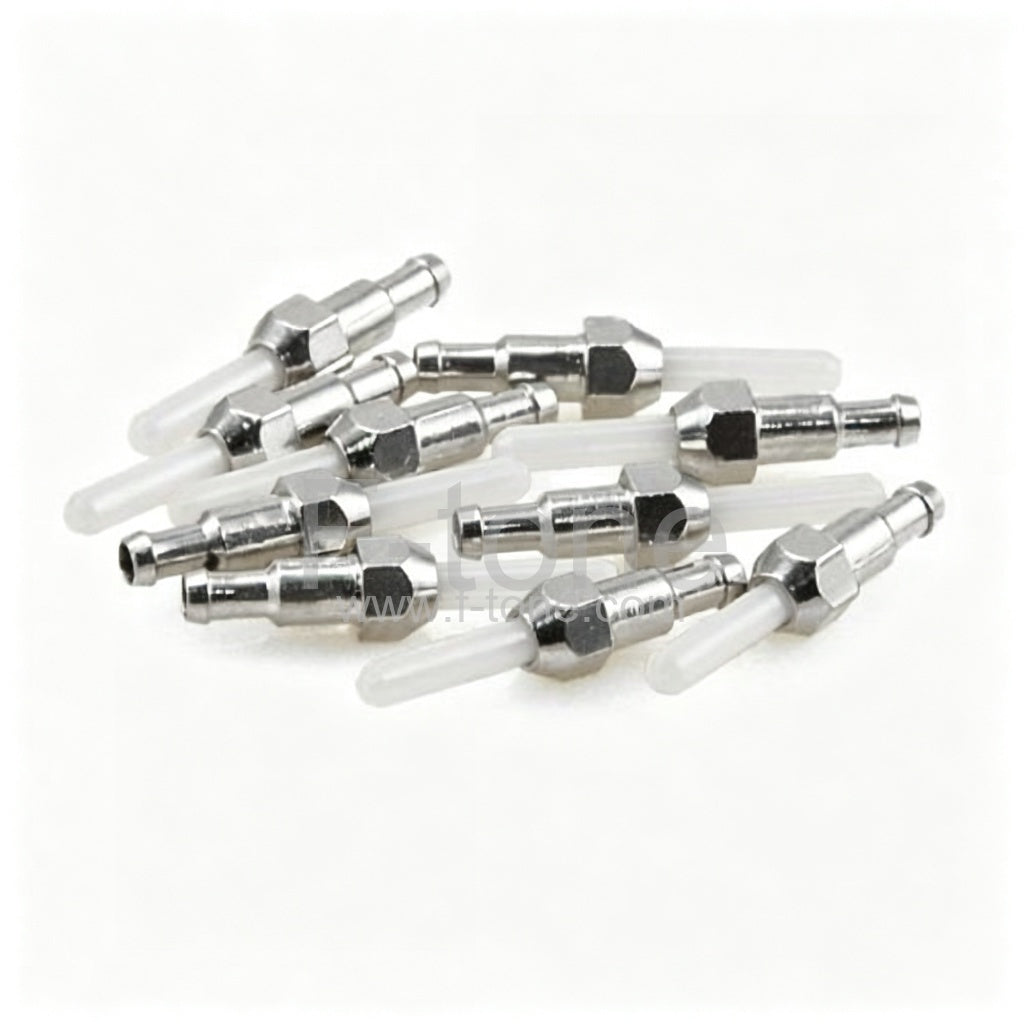

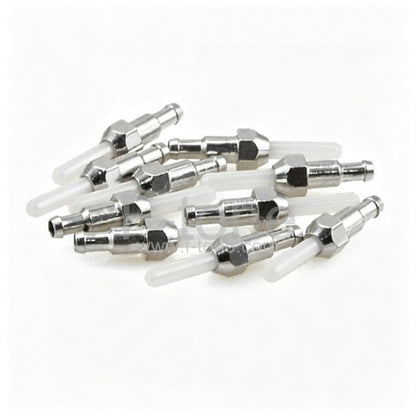

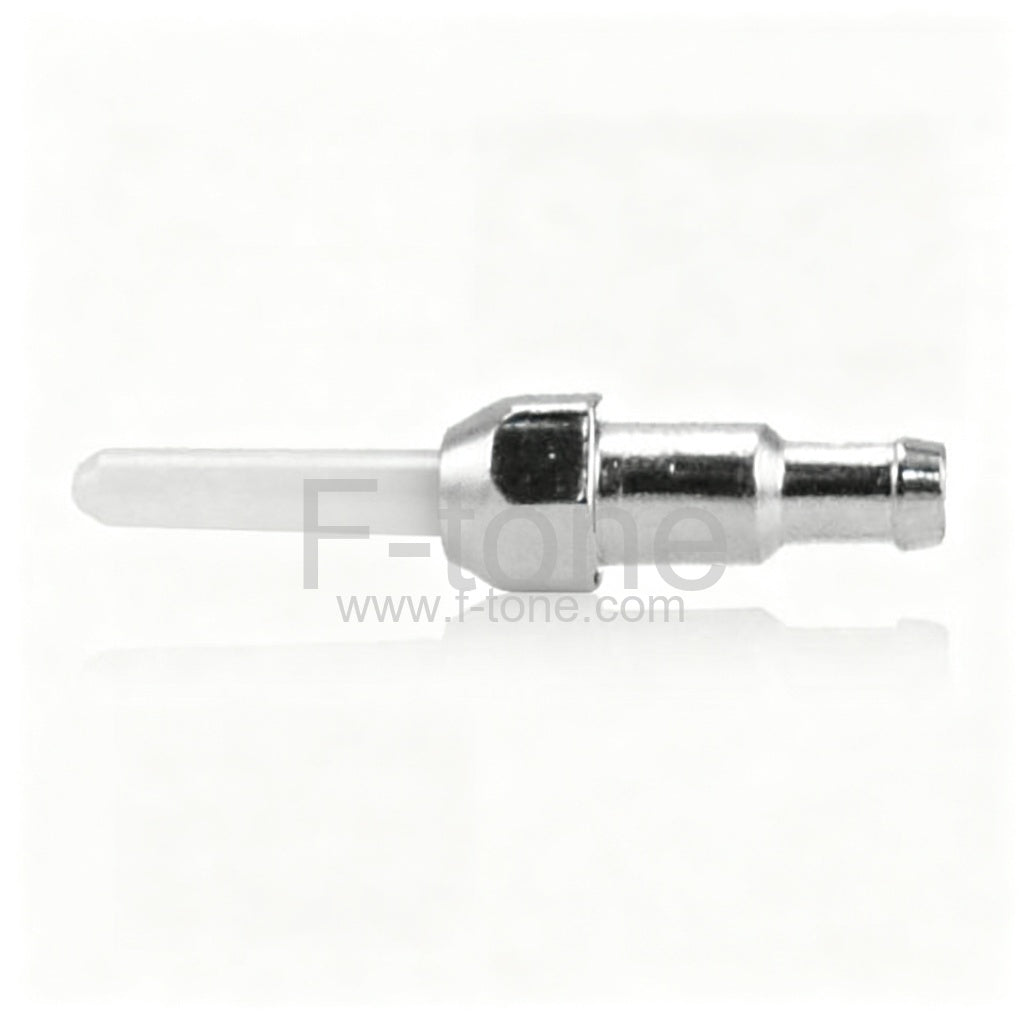

1.25mm OD Single-mode Ceramic Ferrule with flange for LC/APC Fiber Connector 1.0um

1.25mm OD Single-mode Ceramic Ferrule with flange for LC/APC Fiber Connector 1.0um

Afficher tous les détails

Part Number: SM-LCA-CF-10-FM

1.25mm OD Single-mode Ceramic Ferrule with flange for LC/APC Fiber Connector 1.0um

Specification of Ceramic Ferrules:

Outer diameter: 1.2499±0.0005mm
Inner diameter: 0.125+0.001/-0mm
Concentricity:1.0μm
length: 6.50±0.05 mm
Insertion loss:≤0.2dB
return loss:≥60dB

Features:

Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC

Application:

Telecommunication
CATV
LAN (including FTTx)
Data network

Note:

This product is Ferrule Assembly with Flange



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
