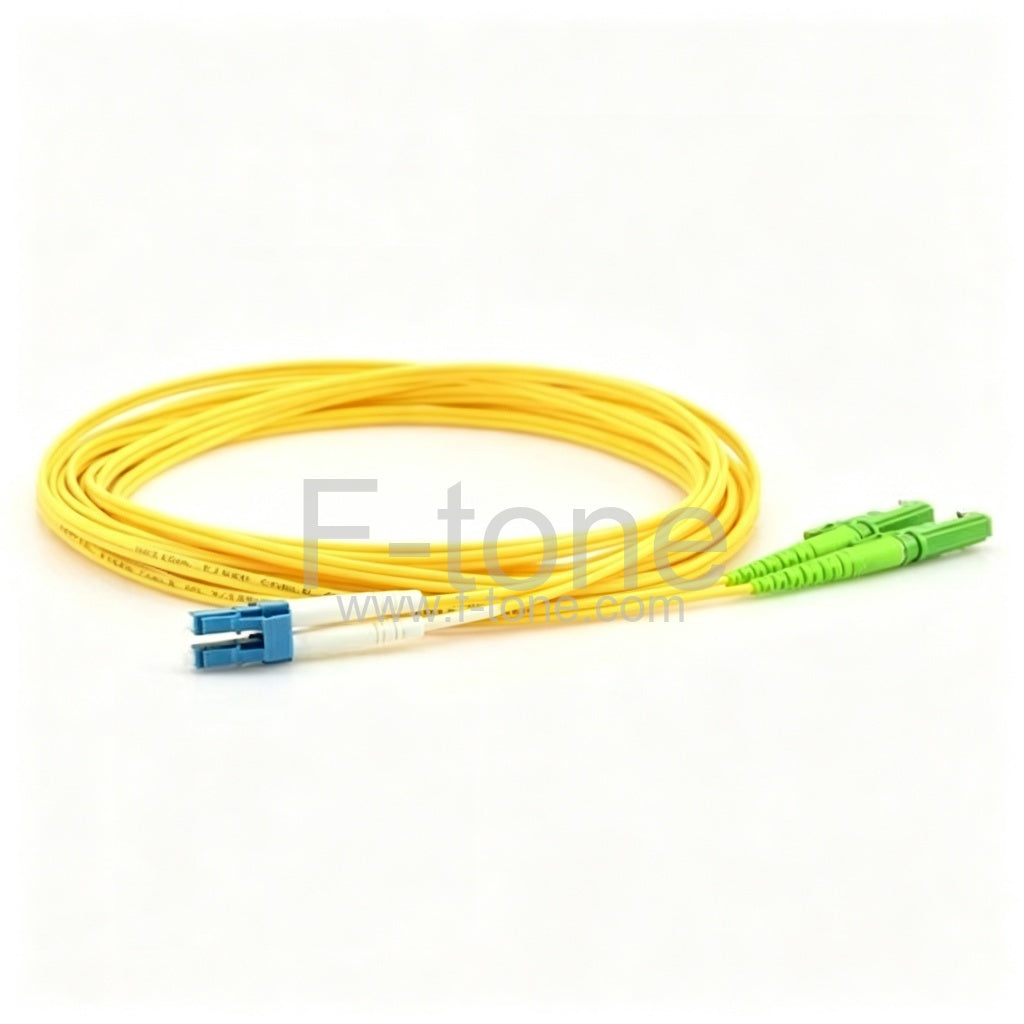

LC/UPC to E2000/APC Duplex 9/125 Single mode Fiber Patch Cable

LC/UPC to E2000/APC Duplex 9/125 Single mode Fiber Patch Cable

Afficher tous les détails

Part Number: SM-LCU-E2000A-DX-FM

LC/UPC to E2000/APC Duplex 9/125 Single mode Fiber Patch Cable

Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.

The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core.
Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.
The core of a single mode fiber optic cable is 9/125μ (micron).
Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.

Key Features

  • LC/UPC to E2000/APC Connectors
  • Singlemode Duplex fiber optic cable
  • Micron: 9/125um
  • Complete with Lucent Technologies aqua jacket
  • Bandwidth transmitting rates up to 10 gigabits
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance

Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
