Part Number: SM-MG-12F-XX

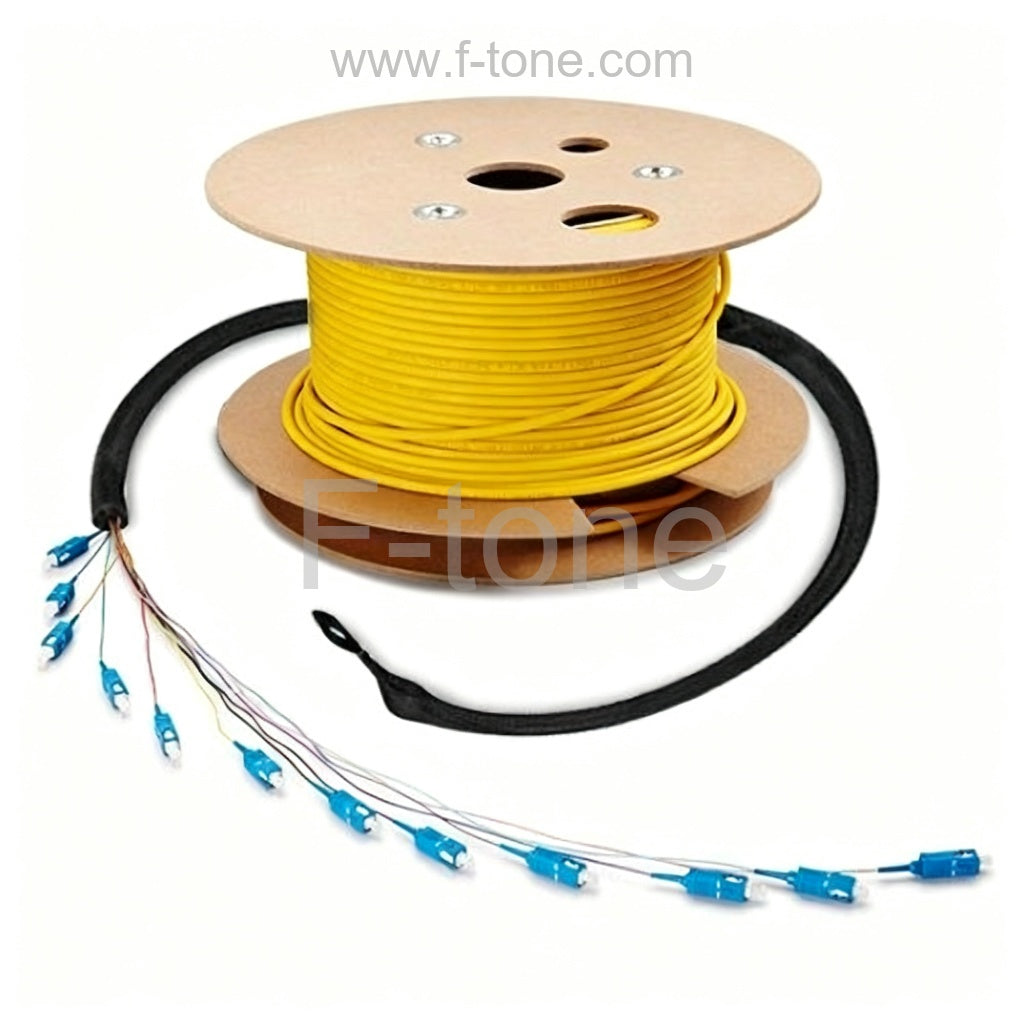

OS2 Singlemode Military-Grade Tactical Fiber Optic Patch Cable 1-24 Fibers
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.
| Connector Type | LC/SC/ST/FC/MTP®/ODC/YZC/IP67 | Polish Type | UPC to UPC |
|---|---|---|---|
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 1~24 Fibers | Fiber Grade | G.657.A1 |
| Min. Dynamic Bend Radius | 20D (mm) | Min. Static Bend Radius | 10D (mm) |
| Insertion Loss (dB) | LC/SC/ST/FC≤0.3, MTP®≤0.35, ODC/YZC≤1.0, IP67 LC/SC≤0.5, IP67 MTP®≤0.35 | Return Loss (dB) | UPC≥50, APC≥60 |
| Attenuation at 1310nm | 0.36 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Crush Resistance (N/100mm) | 1000 (Long Term)/3000 (Short Term) | Impact Resistance | 200 Impacts |
| Flex Resistance | 2000 Cycles | Tensile Load (N) | 200 (Long Term)/600 (Short Term) |
| Breakout Diameter | 3.0mm (1~4 Fibers) 2.5mm (6~24 Fibers) |
Trunk Diameter | 3.0mm-7.0mm |
| Cable Jacket | TPU (Thermoplastic Polyurethane) | Jacket Color | Black |
| Operating Temperature | -40~85°C | Storage Temperature | -40~85°C |
Product Highlights
Perfect for military emergency communications, broadcast television, emergency rush through optical fiber communications, mining and other outdoor applications where protection from moisture, chemicals, corrosive gases, liquids etc. is essential.
- Strong, Lightweight, Armored Tactical Fiber Cable
Constructed of SUS spring tube, Kevlar and braiding, it is ideal for military tactical field use, commercial applications etc.
- TPU Outer Cable Jacket
Ensures high abrasion resistance, low-temperature performance, high shear strength and high elasticity.
Standard LC/SC/ST/FC connectors, ODC plug/socket, YZC plug/socket and IP67 plug/socket are available to meet your special needs in different applications.
Four different breakout configurations meet your various needs.
The military-grade tactical cable features impact and crush resistance characteristics which comply with military requirements. It is ideal for both indoor and outdoor applications where deployment and retrieval for reuse is required, it can also be used to connect the networks of two buildings through the use of an underground conduit or not.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
