ST-16 Handheld FTTx Fusion Splicer Kit

ST-16 Handheld FTTx Fusion Splicer Kit

Afficher tous les détails

Part Number: ST-16FTTH

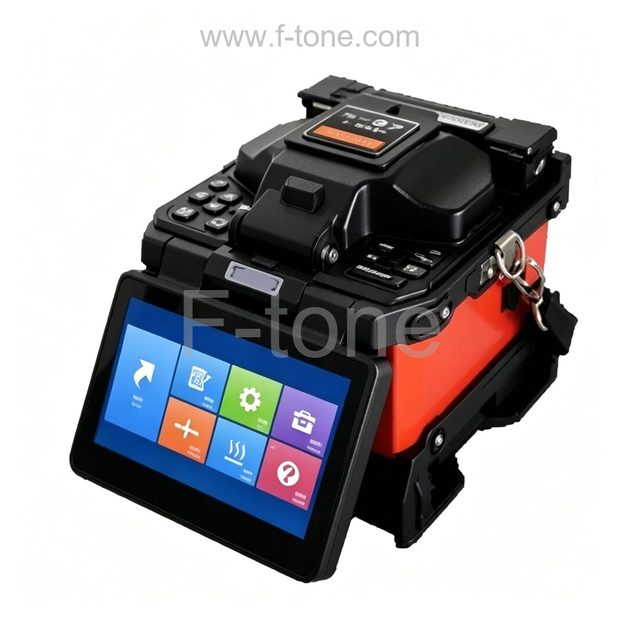

ST-16 Handheld FTTx Fusion Splicer Kit, Robust machine for fiber optical projects

FEATURES

※ 4 motors accurate core to core alignment
※ 6 seconds splicing & 18 seconds heating
※ Automatic & real-time ARC calibration
※ Industrial quad-core CPU, faster & more stable
※ Real-time heating temperature monitoring
※ Anti-shock, anti vibration, dust-proof &waterproof
※ Apply to 250um/0.9mm/2.0mm/3.0mm fibers etc.
※ Suitable for medium backbone, FTTx projects etc.

Specifications

Alignment method 4 motors core to core alignment
Applicable fiber SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)
Cladding diameter 80 -150μm
Coating diameter 160–1000μm
Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
Return loss ＞60dB
Splicing program 40 groups
Operation mode Manual/ Automatic
Auto- heating Available
Typical splice time 6 seconds
Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification 250X(X or Y view), 125X(X and Y view)
Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
Data storage 4000 groups data records
Loss evaluation Available
Tension test 1.8～2.25N
Interface GUI menu interface, easy for operation
Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 4000 ARC discharges, easy to replace
Terminals USB 2.0 port, for software upgrading, records exporting
Operating condition Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s speed：max15m/s


PACKAGE




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
