Part Number: ST-3216C

Sunma ST-3216C Handheld Optical Power Meter(-50~+26dBm)

Introduction

ST-3216 Handheld Optical Power Meter is F-tone newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with ST-3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the ST-3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the ST-3216 optical power meter features good appearance, good touch feeling and considerate humanity design.

Note:
For connectors used for fiber optic testers, F-tone just defines as below:

  • 2.5mm+FC+SC+ST Together with 2.5mm UPP adapter, FC, SC, ST are all interchangeable.
  • FC adapter It means SC male to FC female adapter. ( when standard connector is SC )
  • SC adapter It means FC male to SC female adapter. ( when standard connector is FC )
  • ST adapter It means FC male to ST female adapter. ( when standard connector is FC )

SC male to ST female adapter. ( when standard connector is SC )

  • LC adapter It means FC male to LC female adapter. ( when standard connector is FC )

SC male to LC female adapter. ( when standard connector is SC )

For more information about connector types, please contact [email protected].

  • FC Used alone, it is not interchangeable, it is same to SC,ST, FC/APC,SC/APC etc.

Features

  • Wave IDAuto wavelength identification & switching
  • Frequency ID ---Auto frequency identification
  • 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
  • Intelligent backlight
  • 1000 records storage or download via USB cable
  • USB communication port for saved testing records download
  • Reference power level can be set up and stored
  • User self-calibrating function
  • Auto-off function
  • Up to 200hrs battery life

Standard Packages

Model Includes

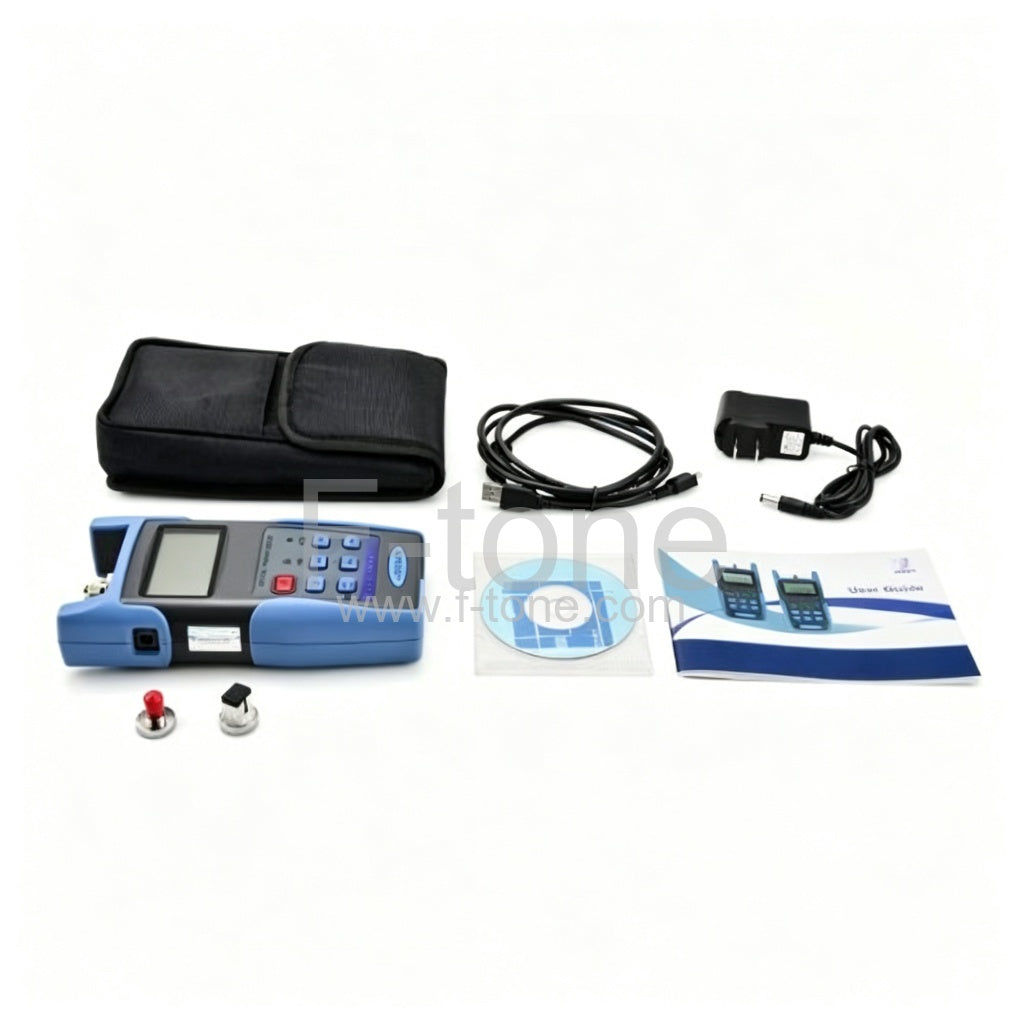

All ST-3216 Models ST-3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.

Note:F-tone is specializing in supplying fiber optic components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new ST-3205 power meter at a large quantity.

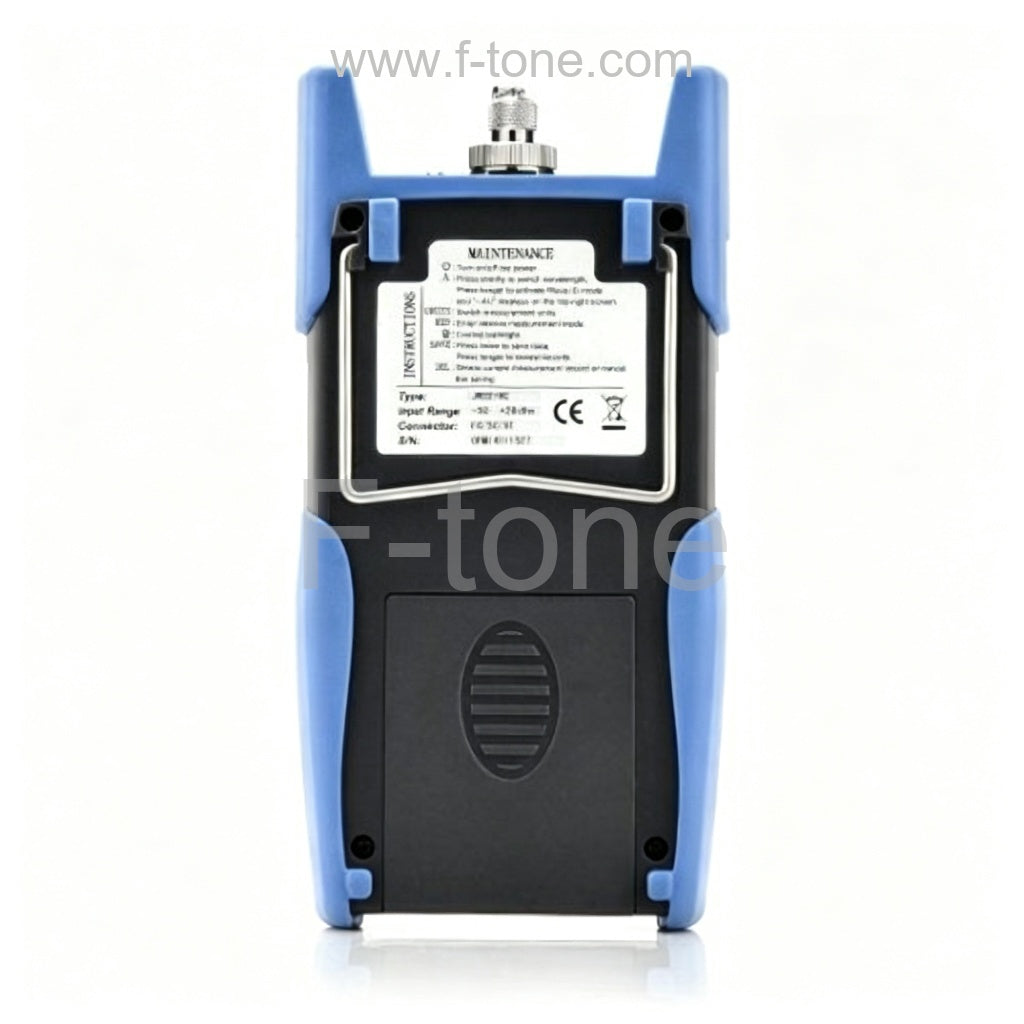

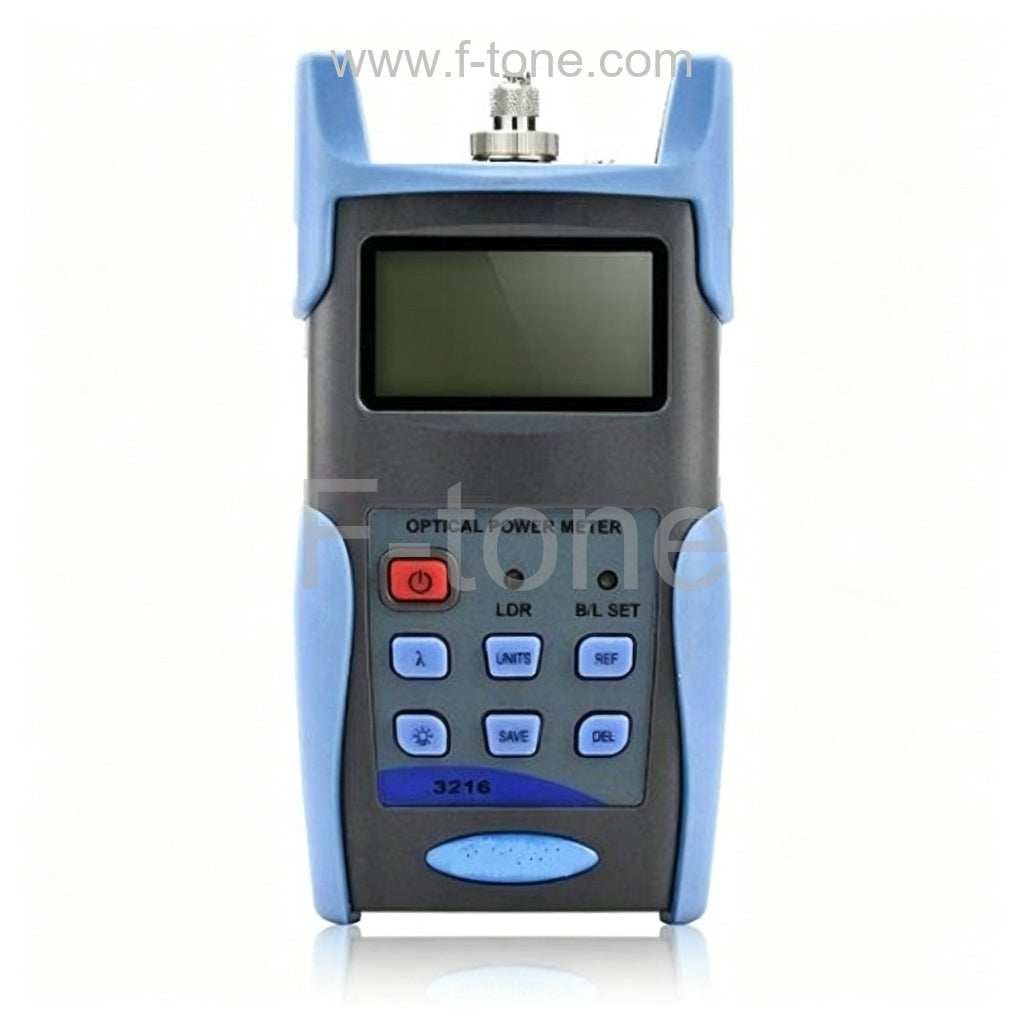

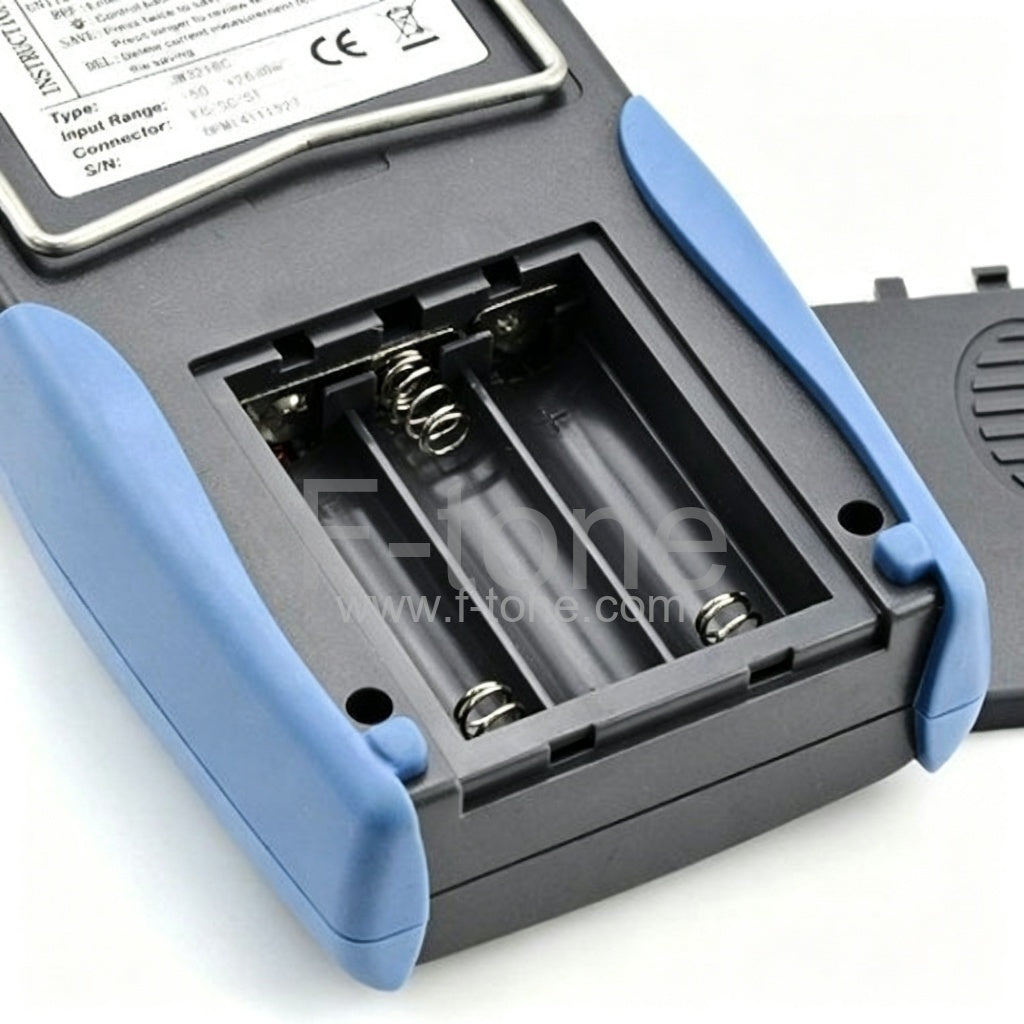

Picture Detail

SPECIFICATIONS
Model ST-3216A ST-3216C
Calibrated(nm) 850, 1300,1310,1490,1550,1625
Detector type InGaAs
Measurement Range(dBm) -70~+6 -50~+26
Uncertainty (dB) ±0.15,3.5%‰
linearity (dB) ±0.02
Display resolution(dB) 0.01
Frequency ID(Hz) 270,330,1K,2K
Wave ID(nm) 1310,1490,1550,1625
Date storage capacity 1000
CommunicationPort USB
Optical Connector type FC,SC,ST interchangeable
Alkaline battery 3*AA(1.5V)
Power Supply Adaptor(V) 8.4
Battery Operating time (h) 200
Operation Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Outline size(mm)/weight 180*90*45(250g)



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
