Part Number: STA-6A1

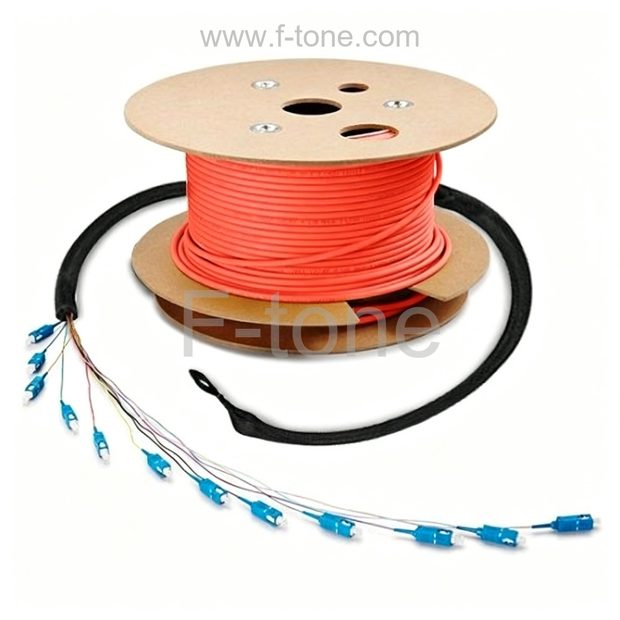

Seamless Tube Armored Temperature Sensing Optical Cable, 6 OM2/OM3/OM4 Multimode Fibers

The seamless tube temperature sensing optical cable could be used in oil field, mine and chemical industry, for temperature and pressure inspection to avoid any accident.

The cable is make up of bare fiber, ointment, stainless steel seamless tube and sheath. Seamless tube can provide high tensile resistance and crush resistance.

Construction

Item Unit Diameter Thickness
Fiber mm 0.25
Seamless Tube mm 2.30 0.20
Jacket mm 4.00
Weight Kg/km 20

Item Details

  • Fiber Count: 6 Fibers

  • Fiber Type: 50/125μm Multimode

  • Temperature: -20℃~+90℃

  • Out Jacket: Default as PVC(LSZH is also available)

Cable Structure

Features
  • Good mechanical properties, transmission performance and environmental performance.
  • Stainless tube protects fibers inside, small diameter and high intensity.
  • Hermetic design of seamless tube ensure good performance of rust resistance and waterproof.
  • LSZH or PVC outer jacket has good performance of flame retardant.
Application
  • Used for temperature and stress measurement
  • Used for tank, mine, chemical and other industries, temperature or pressure measurement, avoid disaster and accidents

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Geometrical Characteristics

Item G652D MM 50 MM 62.5
Core Diameter(µm) 9.2±0.4 50±2.5 62.5±2.5
Cladding Diameter (µm) 124.8±0.7 124.8±0.1 124.8±0.1
Cladding Non-circularity(%) ≤0.7 ≤1.0 ≤1.0
Core-cladding Concentricity Error (µm) ≤0.5 ≤1.5 ≤1.5
Coating Diameter(µm) 245±5 245±7 245±7
Coarting-cladding Concentricity Error (µm) ≤12.0 ≤12.0 ≤12.0

Optical Characteristics

Item G652D MM 50 MM 62.5
Zero Dispersion Wavelength(nm) 1302-1322 1295-1320 1320-1365
Zero Dispersion Slop [ps/(nm2.km)] ≤0.090 ≤0.101 ≤0.097
Ngroup Index Of Refraction 1310nm 1550nm 850nm 1300nm 850nm 1300nm
1.467 1.4677 1.481 1.476 1.496 1.491

Cable Parameters

Item Unit Singlemode Multimode
Fiber core/Modal diameter µm 9.2±0.4 50.0±2.5 62.5±2.5
Cladding Diameter µm 125.0±1.0 125.0±1.0 125.0±1.0
Attenuation dB/km 0.4dB/km@1310nm 3.5dB/km@850nm 3.5dB/km@850nm
0.3dB/km@1550nm 1.5dB/km@1300nm 1.5dB/km@1300nm
Temperature ℃ -20℃~+90℃
Cable Shape mm 4.00±0.20
Cable Weight Kg/km 20
Allowable Bending Radius mm Dynamic 20D Static 10D
Allow Tension N Long-term 200 Short-term 400
Crush N Long-term 800 Short-term 1000


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
