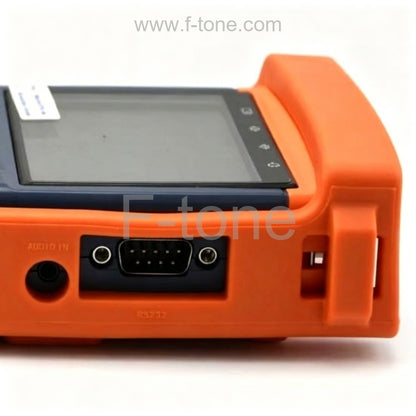

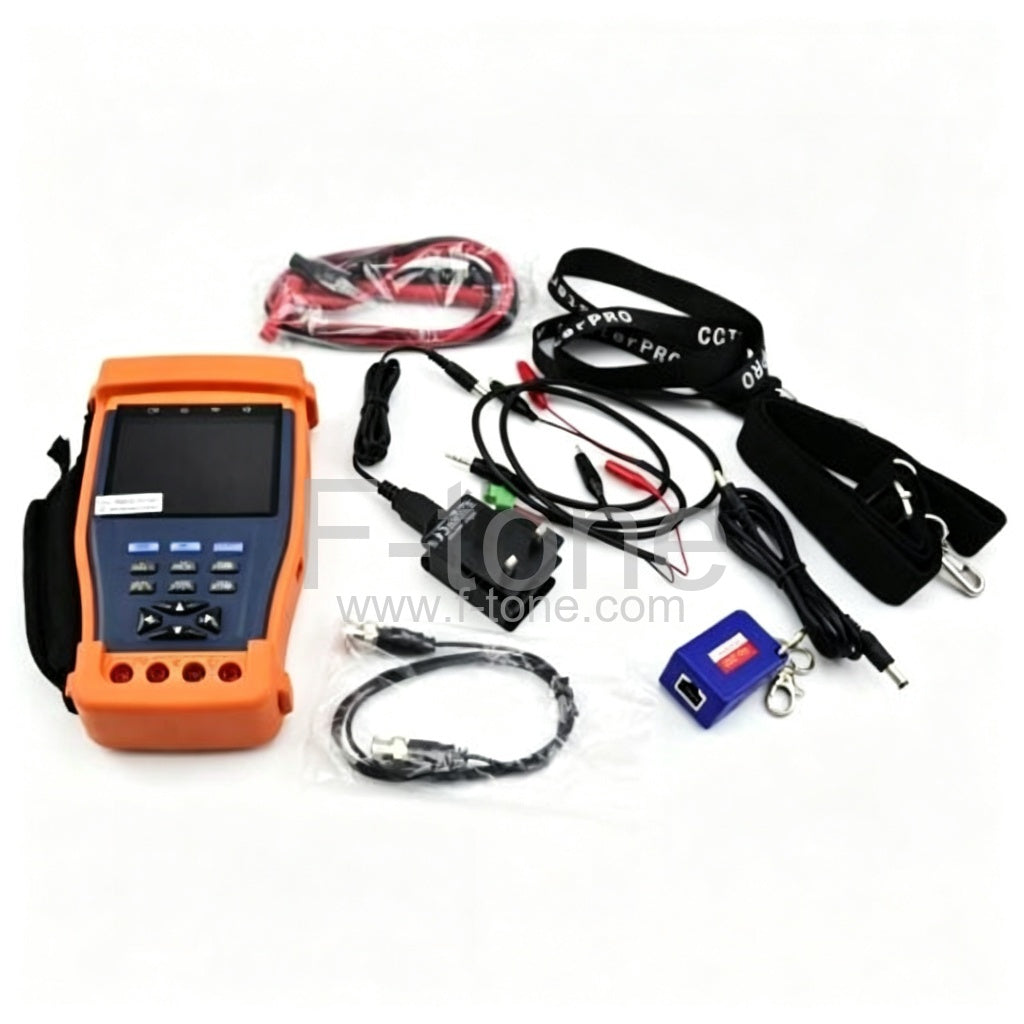

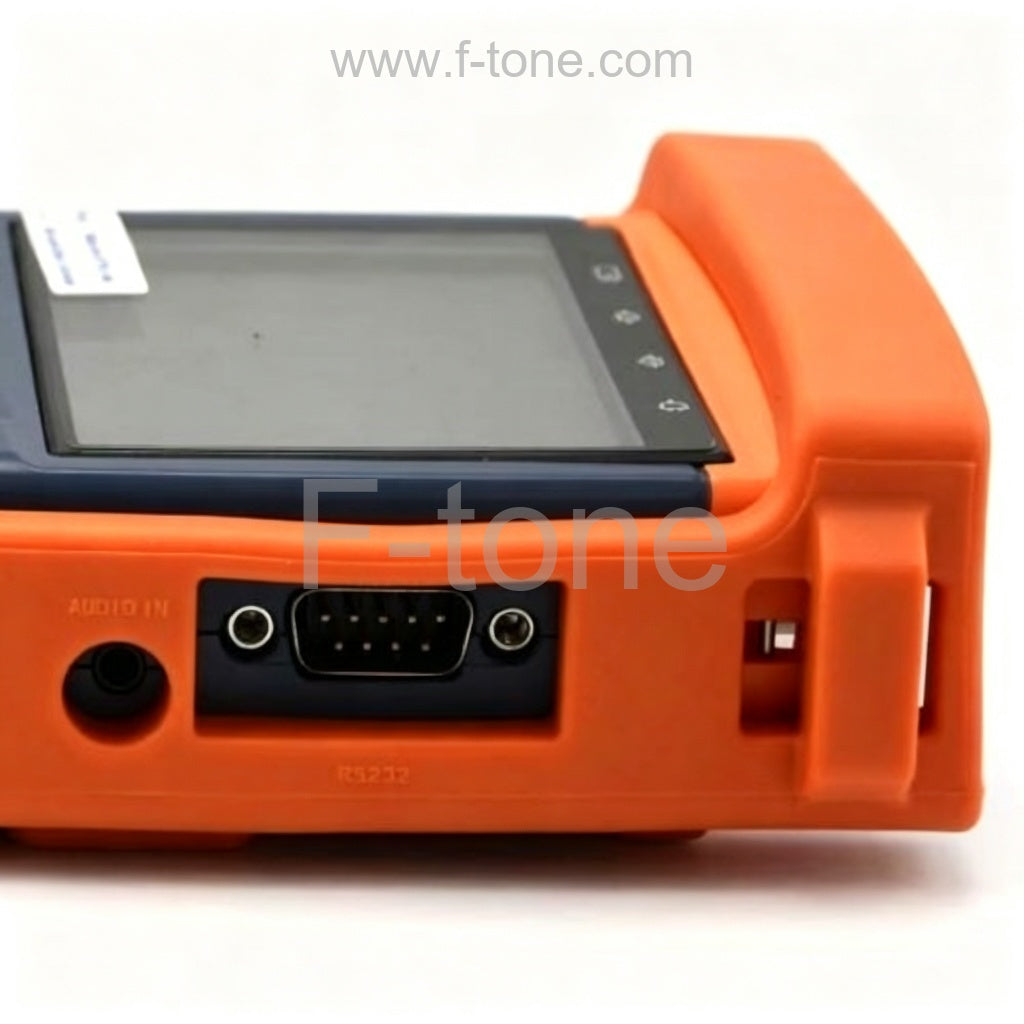

Stest-894 CCTV Security Camera Tester with Multimeter

Part Number: Stest-894

Stest-894 CCTV Security Camera Tester with Multimeter

Introduction

The STest-894 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, DC12V1A power for camera, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.

Features

• 3.5"TFT-LCD, 960(H)×240(V)resolution.
• DC12V 1A power output for camera
• Audio input test
• PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
• Video displaying. Automatically adapts and displays the video format of NTSC/PAL.
• LCD Brightness/Contrast/Color Saturation is adjustable.
• Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
• Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
• Cable testing. It is powerful in testing LAN cable, measuring the connecting status, displaying the sequence of connection and the NO. of the LAN cable.
• Multi-interface and Multi-baud rate. Support RS232, RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
• Multi-protocol. Supports more than twenty PTZ protocols, for example, PELCO-P, PELCO-D, SAMSUNG etc
• Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours.
• Digital Multimeter performs AD/DC Voltage, AC/DC Current, Resistance, Continuity, Capacitance and Diode test, Auto /Manual Range, Data hold, Relative measuring.

Application

CCTV system installation and maintenance
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller

Family Comparison

Model Video Test Signal mode Display LCD adjustment Video IN/OUT Video Output Mode Video Level test Power Output Power Output Audio Test Audio input PTZ controller Communication PTZ Protocol Baud Rate Video Signal Generation Color bar generation UTP CABLE TEST UTP cable test RS485 data analyst Data Monitor Digital multimeter Digital multimeter POWER Power Adapter Battery Rechargeable Low Consumption General Working Temperature Working Humidity Dimension/Weight
