Part Number: SWLD-1273X-X

Select Wavelength Laser Diodes (SWLD) from LAN/M/CWDM/DWDM: SWLD


Description:

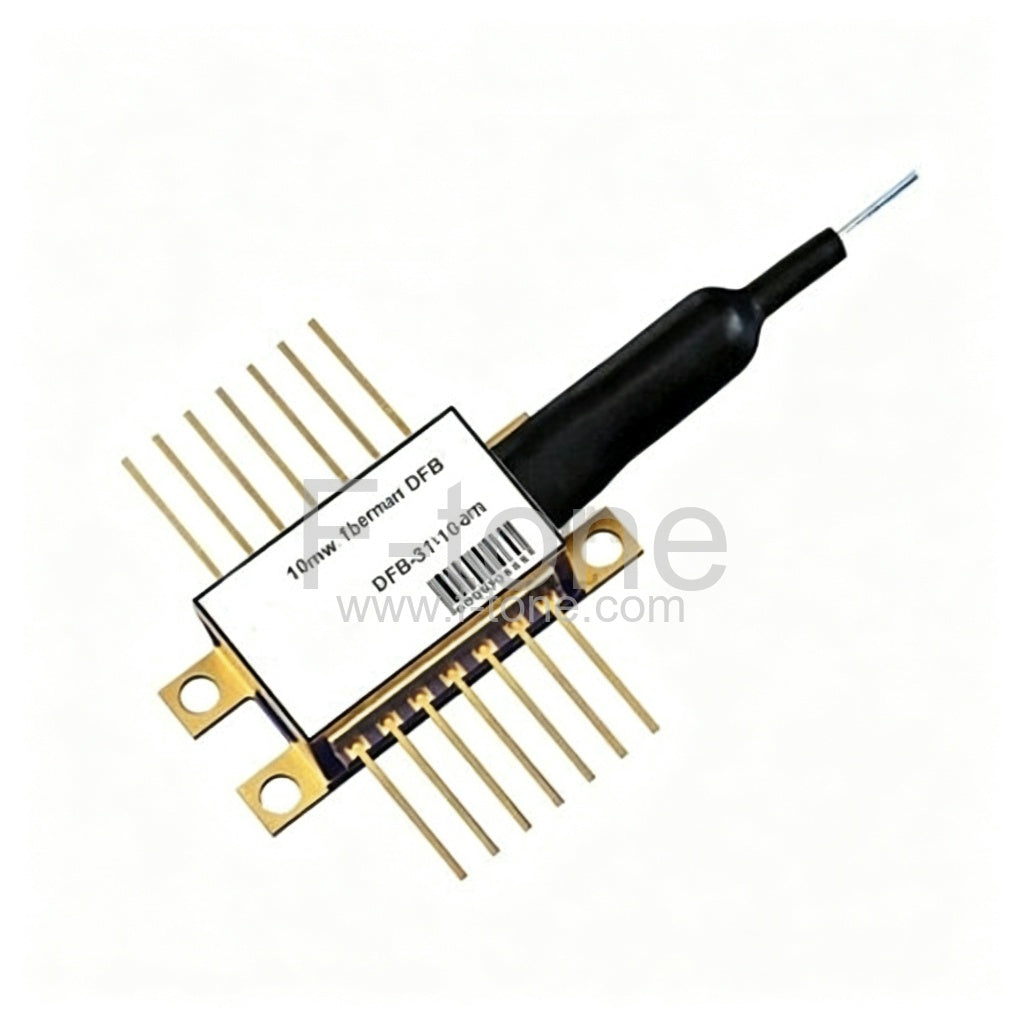

The SWLD series laser is specifically developed fbr wavelength division multiplexing (WDM) systems. Selected wavelengths comply with ITU recommendations, both in channel definition of CWDM Wavelengths( 1270 to 1610nm),thus adhering to the 20nm grid and in channel definition of DWDM Wavelengths( 1527.22 to 1610.92nm),thus adhering to the 100GHz grid(0.8nm) relative to a frequency. It is available in a hermetic sealed 14-pin butterfly package. The laser diodes contain thermoelectric cooler (TEC), thermistor, monitor PD and optical isolator to secure high quality laser performance. We also have full customer selection of output powers, package types and output fibers of SM fibers, PM fibers and other special fibers. Our laser products are Telcordia GR-468 qualified, and in compliance with RoHS directives.

Applications

• LAN, WAN and metro networks
• C/DWDM systems
• Fiberoptic sensors
• Laser sources
• Gas detection

Features

• Highoutput power(10〜lOOmW)
• High-performance,multiquantum well (MQW) distributed-feedback (DFB) laser
• Industry-standard, 14-pin butterfly package
• Built-inTEC and optical isolator
• Customerselection of wavelengths(LAN-WDM/CWDM/DWDM)


Opticaland Electric Specifications

Parameter Symbol Min. Typ. Max. Unit
Center Wavelength N LAN/M/C/DWDM ITU grid nm
Optical Output Power Po 10 - - mW
Threshold Current I.h - 7 25 mA
Operating Current lop - 80 500 mA
Laser Reverse Voltage Vr - - 2 V
TEC set temperature Ts 15 - 35 °C
Laser Forward Voltage vF - - 3 V
Optical Isolation ISO 30 - - dB
Side-mode Suppression Ratio SMSR 35 45 - dB
Spectral Linewidth (FWHM) LW 3 - MHz
Bandwidth (@-3dB) BW 2.5 - GHz
PD Reverse Voltage Vrpd 5 10 V
PD Forward Current Ifpd 1.1 5 mA
PD Monitor Dark Current (Vr=-5V ) Id 0.01 0.1 卩A
TEC Current Lee - 1.5 A
TEC Voltage vtec - 3.5 V
Thermistor Resistance(25°C) Rlh 9.5 10 10.5 KQ
Lead Soldering Time(<260°C) - - - 10 Sec
Operating Temperature Range - -5 25 70 °C
Storage Temperature TstE -40 - 85 °C

Ordering Information

SWLD- □□□□ □□ □ □ □ □
SWLD- Wavelength Power Fiber type Pigtail Type Pigtail length Connector
1270: 1270nm 01:lmW 0: SMF-28e 0: 250卩m bare fiber 1: 50cm 0: None
05:5mW l:PMF-1310 l:900um loose tube 2: 100cm 1: FC/UPC
1610: 1610nm 10:10mW 2:PMF-1550 2:900^m tight tube 3: 150cm 2: FC/APC
1273:1273.55nm 20:20mW C: Customized C: Customized 4: 200cm 3: SC/UPC
40:40mW C: Customized 4: SC/APC
1309: 1309.14nm 60:60mW 5: LC/UPC
8610: 1610.92nm 80:80mW 6: LC/APC
1H: lOOmW C: Customized
9630: 1527.22nm CC: Customized


Example of Ordering Form: SWLD-1273100222-L1
SWLD- 1273 10 0 2 2 2
1273.55nm lOmW SMF-28e 900卩m tight tube 100cm FC/APC



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
