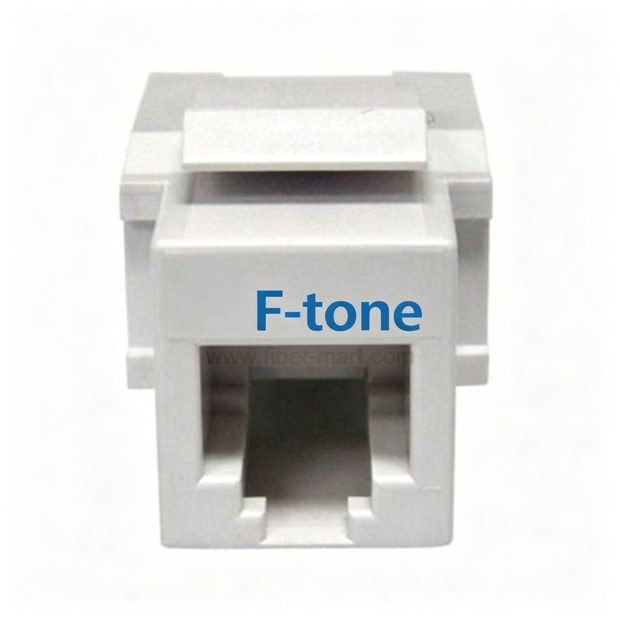

25 Ports Cat 3 Telephone Patch Panel

25 Ports Cat 3 Telephone Patch Panel

Afficher tous les détails

Part Number: TPP-CAT3-25-FM

25 Ports Cat 3 Telephone Patch Panel

Solid and reliable terminations for copper cabling featuring gold plated jack contacts. Terminators are compatible with Krone or 110 or for both punch down tool for different applications.

Materials

  • Housing: PC UL94V-0
  • IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire
  • PCB: FR4 1.6mm(0.04") thickness, 2 layers
  • Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area

Specifications

  • Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements
  • Meet TIA/EIA TSB-40
  • Meet ISO/IEC Generic Cabling Standard 11801
  • Meet CENELEC Generic Cabling Standard EN50173
  • Angle: 90 Degree
  • Termination: Krone Type
  • Electrical:According to UL 1863
  • Current rating: 1.5 Amp Max
  • Voltage rating: 150 Volts
  • Contact resistance: 20 m-ohm
  • Insulation Resistance: 500M-ohm
  • Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Applications

  • IEEE 802.3(10BASE-T/100base-TX/1000BASE-T Gigabit ethernet)
  • RoHS compliant
  • For use with Cat3 telephone cable
  • ideal for ethernet fast ethernet
  • Gigabit ethernet network applications
  • Standard 19¡± size for different equipments installation
  • Krone IDC. or 110 IDC



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
