Part Number: UTP-CAT3-FT003

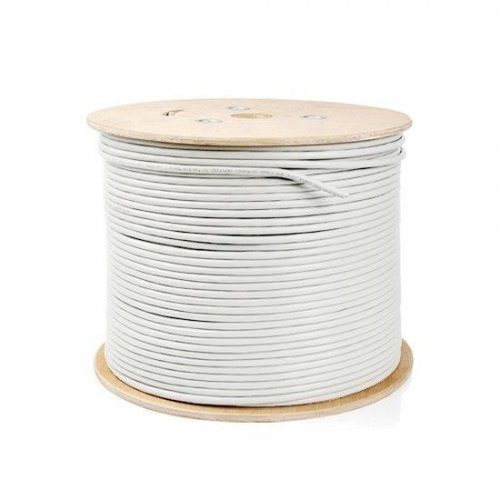

305m 100 Pairs Cat3 Unshielded Twisted Pair (UTP) Bulk Cable

Unshielded Copper cable, 2/25/50/100 pairs, category 3, solid
Cable is used for indoor installation

Specifications:

  • Meets EIA/TIA 568-B for category 3 requirements
  • Fire protection – IEC60332-1 (CM)
  • The cable meets IEC 60332-1 fire safety standard

Applications

  • Voice
  • 10BaseT
  • 100BaseVG
  • AnyLAN
  • 4Mbps Token Ring
  • 10Mbps Ethernet
  • 55Mps ATM
  • ISDN

Materials:

  • Conductive material: soft annealed electrolytic copper
  • Conductor insulation: HDPE
  • The cable jacket: PVC

Technical characteristics:

  • Conductor diameter: 0.5 mm (0.019") (24 AWG)
  • Insulated conductor diameter: 0.9 mm (0.035")
  • Outer cable diameter: 200 mm (0.78")
  • Jacket thickness: 1.0 mm (0.039")
  • Maximum strand pitch: 150 mm (5.9")
  • Minimum bend radius: 8 outer cable diameters
  • Conductor elongation: 14% minimum
  • Operating temperature: -10°C – +50°C (+14°F – +122°F)
  • Weight per 1000 ft (304.8 m): 169.2 kg (372.9 lbs)
  • Standard package: 500 m (1640 ft)

Electrical characteristics:

Max DC Resistance at 20°C (68°F) 9.38 Ohm/100 m (2.9 Ohm/100 ft)
Max Resistance Unbalance 3%
Max Capacitance unbalance – pair-to-ground at 1kHz 330 pF/100 m (101 pF/100 ft)
Characteristic Impedance at 1-16 MHz 85-115 Ohm
Min worst pair Structural Return Loss (SRL)
Up to 10 MHz
At 16 MHz		 12 dB
10 dB
Max attenuation at 20°C (68°F) and
At 772 kHz
At 1 MHz
At 4 MHz
At 8 MHz
At 10 MHz
At 16 MHz		 2.2 dB/100 m (0.67 dB/100 ft)
2.6 dB/100 m (0.79 dB/100 ft)
5.6 dB/100 m (1.70 dB/100 ft)
8.5 dB/100 m (2.59 dB/100 ft)
9.7 dB/100 m (2.96 dB/100 ft)
13.1 dB/100 m (3.99 dB/100 ft)
Min worst pair to pair NEXT loss at 772 kHz
At 772 kHz
At 1 MHz
At 4 MHz
At 8 MHz
At 10 MHz
At 16 MHz		 43 dB
41 dB
32 dB
27 dB
26 dB
23 dB
Min Relative Velocity of Propagation at 10 MHz 0,585
