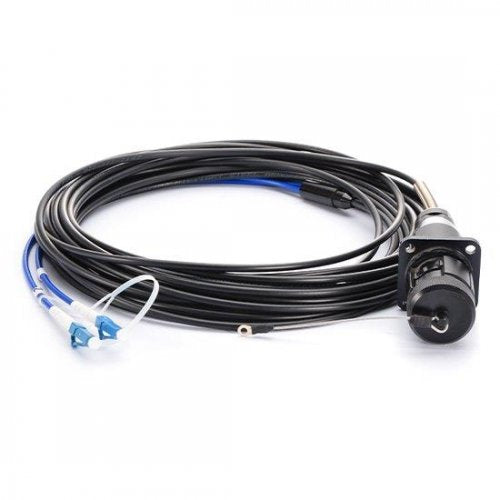

2 Fibers Wall Mounted Military Field YZC Connector to LC/SC/ST/FC Singlemode Fiber Optic Patch Cable

2 Fibers Wall Mounted Military Field YZC Connector to LC/SC/ST/FC Singlemode Fiber Optic Patch Cable

Afficher tous les détails

Part Number: WM-MF-X-2F-FM

2 Fibers Wall-Mounted Military Field YZC Connector to LC/SC/ST/FC Fiber Optic Patch Cable

Features

Moulded plastic compound body, for long use
Cross the panel with seal design, simultaneous connector 2 to 6 fibers
Neutral mechanism, connector and receptacle random linking
Ceramic ferrule and sleeve: PC,UPC polishing
Cable length: 1M
Fiber number: 2 fiber
Connector: wall-mount military field cptic cable YZC connector to LC/SC/ST/FC

Applications

Optical fiber military communication networks
Military computer networks
Vehicle-borne, air-borne or carrier-borne equipments

Specifications

Item Parameter
Fiber type Singlemode Multimode
2 fibers 4 fibers 6 fibers 2 fibers 4 fibers 6 fibers
Insert loss ≤0.6 ≤0.8 ≤1 ≤0.6 ≤0.8 ≤1
Repeatability ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration 10Hz 500Hz,98m/s2
Shock 490m/s2
Durability(per time) 1000cycles
Working temperature -40 up to +85
Temperature cycle -40 up to +85 , three cycles
Fibers 2 fibers 4 fibers 6 fibers
Cable Crush Resist 1200N(long-term) 1400N(long-term) 600N(long-term) 800N(short-term)
Cable Outer Diameter 5.0mm 6.5mm 6.5mm


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
