2 Fibers Single-mode Single-Armored Tight Buffered Water-proof Indoor Outdoor Cable

2 Fibers Single-mode Single-Armored Tight Buffered Water-proof Indoor Outdoor Cable

Afficher tous les détails

Part Number: WPC-2B1.1

2 Fibers Single-mode Water-proof Indoor Outdoor Cable Tight Buffered Single-Armored



Indoor/outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types. It is suitable for installation including outside plant to building transitions, campus environments, Local Area Networks, private networks, and inter-building installations.

The central member ensures the tensile strength. The water proof tape and the aluminum providing key protection for the fiber and ensures good water blocking resistance, low shrinkage. The cable is completed with a single medium density polyethylene (PE) sheath, which has good ultraviolet radiation resistance. The compact outdoor/indoor cable allows significant savings on handling and installation time.

Item Details

  • Fiber Count: 2 Fibers

  • Fiber Type: Single-mode G.652D

  • Armored Layer: Aluminum tape

  • Outer Jacket: PE

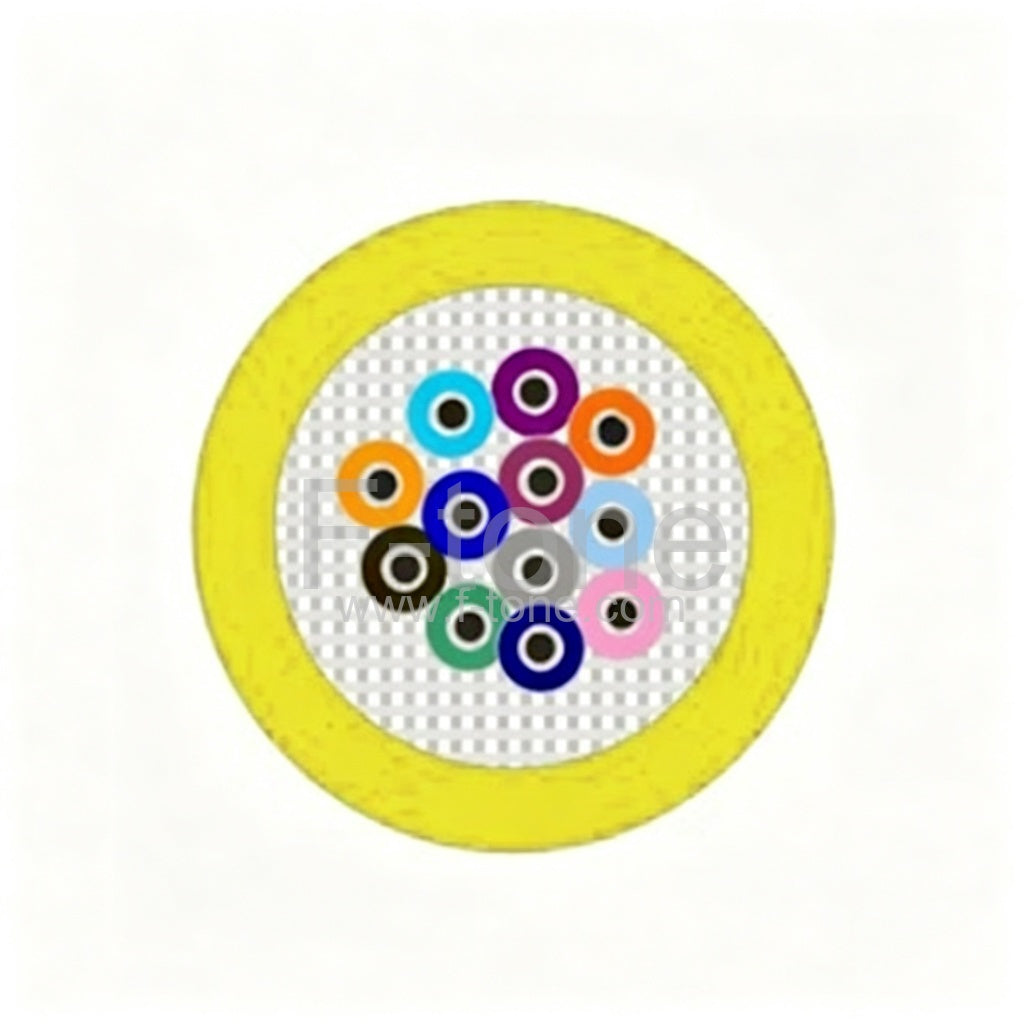

Cable Structure

Features
  • Streamlined installation with direct outdoor-to-indoor cable transitions.
  • Water blocking tape to prevent longitudinal water infiltration.
  • Polyethylene Jacket: low friction installation, excellent protection from environmental hazards.
  • High density, easy installation in transitional aerial and duct applications.
  • Enhances system performance by avoiding additional splice point attenuation.
  • Single sheath and aluminum tape provide excellent crush resistance, water proof and rat bite resistance.
  • Tight-buffered cable designs typically offer a smaller package and more flexible cable.
  • Center member improves the tensile strength.
Application
  • Inside plant, outside plant
  • Aerial, duct applications and entrance facilities
  • Local area networks
  • Outdoor to indoor cable transitions

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX


Cable production throughout the chart



Cable Count Outside
Diameter		 Sub-unit Cable
Weight		 Tensile Load
(N)		 Crush Load
（N/100mm)		 Bend Radius
(mm)		 Storage
Temperature
（mm) （mm) (kg/km) short term long term short term long term short term long term （℃）
2 8 2 70 1500 600 1000 300 20D 10D -20-+60
4 8 2 72 1500 600 1000 300 20D 10D -20-+60
6 9.3 2 88 1500 600 1000 300 20D 10D -20-+60
8 10.5 2 115 1600 600 1000 300 20D 10D -20-+60
12 13.2 2 180 1500 600 1000 300 20D 10D -20-+60
24 14 2 210 1500 600 1000 300 20D 10D -20-+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
