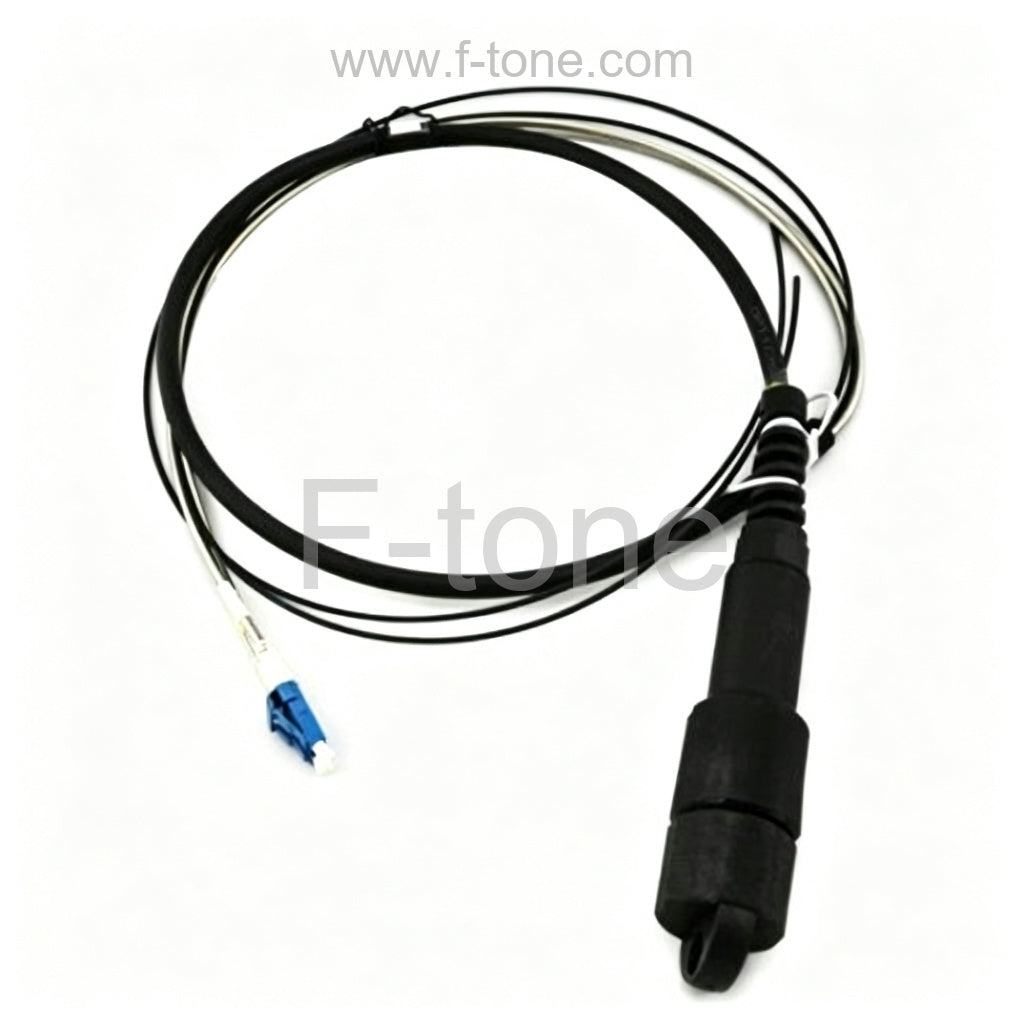

IP67 LC to LC/SC/ST/FC Duplex Singlemode Waterproof TPU Armored Outdoor Fiber Optic Patch Cable

IP67 LC to LC/SC/ST/FC Duplex Singlemode Waterproof TPU Armored Outdoor Fiber Optic Patch Cable

Afficher tous les détails

Part Number: WPDXSM-IP67LC-X

IP67 LC to Standard LC/SC/ST/FC Duplex Singlmode Waterproof Fiber Patch Cable

Waterproof fiber optic patch cables are designed to fit for outdoor applications. The waterproof fiber optic cables are with strong PU jacket and armored structure, they can resist high temperature and suit to use in harsh environment. F-tone provides wide degree flexibility on Waterproof fiber optical cables, including Duplex, Simplex, 12fibers and 24fibers various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.


IP67 LC to Standard LC/SC/ST/FC Duplex Singlmode Waterproof Fiber Patch Cable with IP-LC on one end of cable and standard LC/SC/FC/ST connector on the other end. the IP-SC connector exceed the requiremnets of ODVA, and meet IP66/67 environmental sealing ratings, it is the ideal choice for a low cost and easy to use solution in industrial, Fiber to the Antenna, or any other harsh environmental applications. The IP-LC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67LC-LC/SC/FC/ST Singlemode duplex Waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.

International Protection(IP) Rating

Features & Application

IP67LC Connectors: socket & plug

There are two types of IP67LC weatherproof connector: IP67LC plug (with standard duplex LC connectors) and IP67LC Socket (with duplex LC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.

IP67 LC Component Details

F-tone IP67LC cable connector accommodates duplex, singlemode APC, optical channels based on the conventional and proven LC connector. The Aluminum housing, features a spring-loaded push-pull locking mechanism and excellent cable retention utilising an aramid yarn within the cable. Fibres within both chassis and cable connectors are protected against dirt and dust when unmated by an automatically operated sealing-cover. In addition to the automatic sealing shutters, a rubber-coated, steel, latching protective cap is fitted for use when unmated,.When mated or capped, the connection is environmentally sealed up to IP67.

Specification

Item Type Parameter
Insertion Loss SM ≤0.20dB
MM ≤0.30dB
Return Loss SM ≥50dB
MM ≥35dB
Repetition Test Additional Loss≤0.1dB, Reture Loss Variability<5dB
Temperature Stability(-40℃～85℃) Additional Loss≤0.2dB, Reture Loss Variability<5dB
Free fall resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Tensile Strength Tensile of 1500N, cable dependent
Operating temperature -40 to +70°C
Storage temperature -55 to +85°C

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
