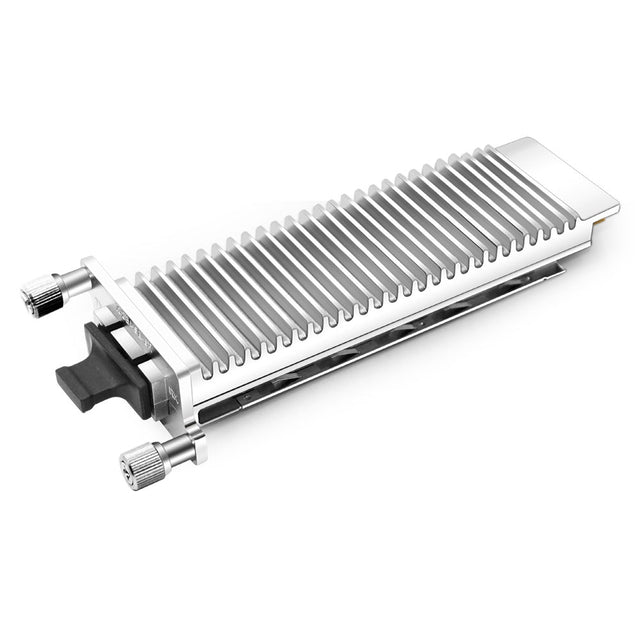

10G XENPAK to SFP+ Converter Module

10G XENPAK to SFP+ Converter Module

Afficher tous les détails

Part Number: XENPAK-SFP10G

10G Converter Module XENPAK to SFP+

F-tone 10G XENPAK to SFP+ Converter Module converts a 10 Gigabit Ethernet XENPAK port into a 10 Gigabit Ethernet SFP+ port. With the XENPAK to SFP+ Converter Module, customers have the flexibility to use the 10 Gigabit XENPAK interface port of a switch with XENPAK modules or SFP+ modules. This flexibility is important when the specific type of interface is not available in one or the other form factor or when customers want to use the same form factor for interfaces across multiple platforms deployed in their network. XENPAK is a standardized form factor for 10 Gbps Ethernet fiber optics transponders. XENPAK optics are used in datacom optical links only (not telecom). XENPAK optics are the oldest of the 10G form factors. There Xenpak optics convertors which will convert the Xenpak to a SFP 10G. Based on XENPAK to SFP+ converter F-tone can produce: BIDI XENPAK, CWDM XENPAK, DWDM XENPAK and common XENPAK.With this 10G XENPAK-SFP+ Converter, customer can plugged into the following SFP+ transceivers: SFP+ SR,SFP+ LR,SFP+ ER,SFP+ ZR, CWDM SFP+,DWDM SFP+,BIDI SFP+ .

Feature:

  • Converts the 10-Gigabit Xenpak interface into a single 10-Gigabit SFP+ interface
  • XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
  • Support on many platforms using Xenpak interfaces
  • Compatible with Xenpak MSA
  • Hot Pluggable
  • Power dissipation<2W
  • Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
  • Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a F-tone.Com switch
  • Digital optical monitoring capability for strong diagnostic capabilities

Applications

  • 10GE Ethernet switches and routers
  • 10Gbps Ethernet or Sonet SDH switches and routers
  • Xenpak shift to SFP 10gb Converter networks
  • Other 10Gbps Ethernet Transmission System

Structures

FormFactor XENPAK-SFP+
DataRate 10Gbps
Diagnostics Digital
VoltageSupply +5.0V
+3.3V
OperatingCaseTemperature: COM:0to70°C
EXT:-5to85°C
IND:-40to85°C
Powerconsumption <2.0W
ProductType Transceiver
NetworkTechnology 10GBase-X
NumberofExpansionSlots
Slots		 1
ExpansionSlots (1Total)SFP+
Dimensions 17.4mmHeightx36Widthx115.2Depth


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
